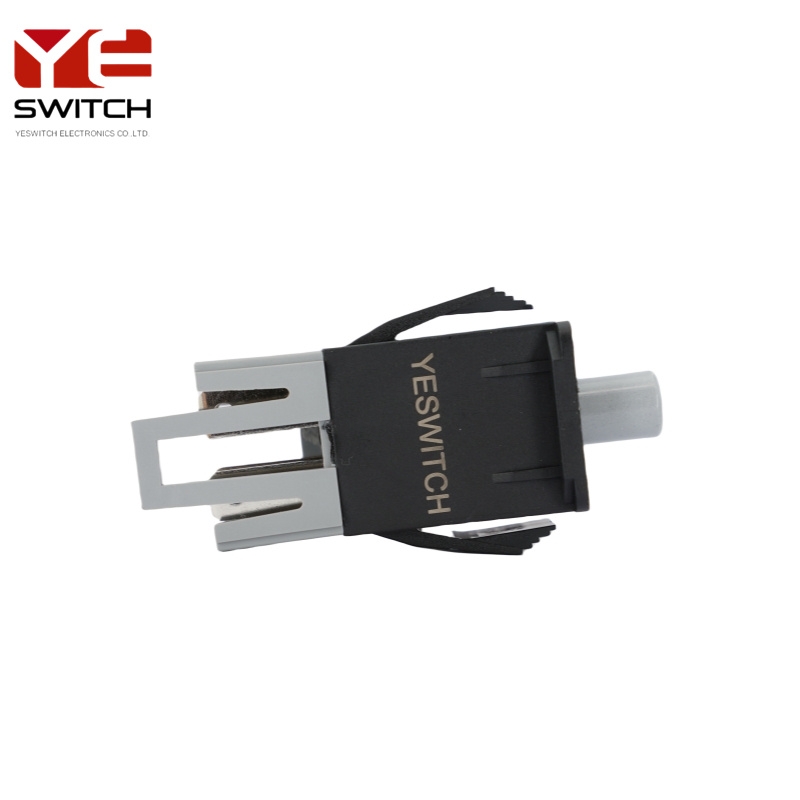

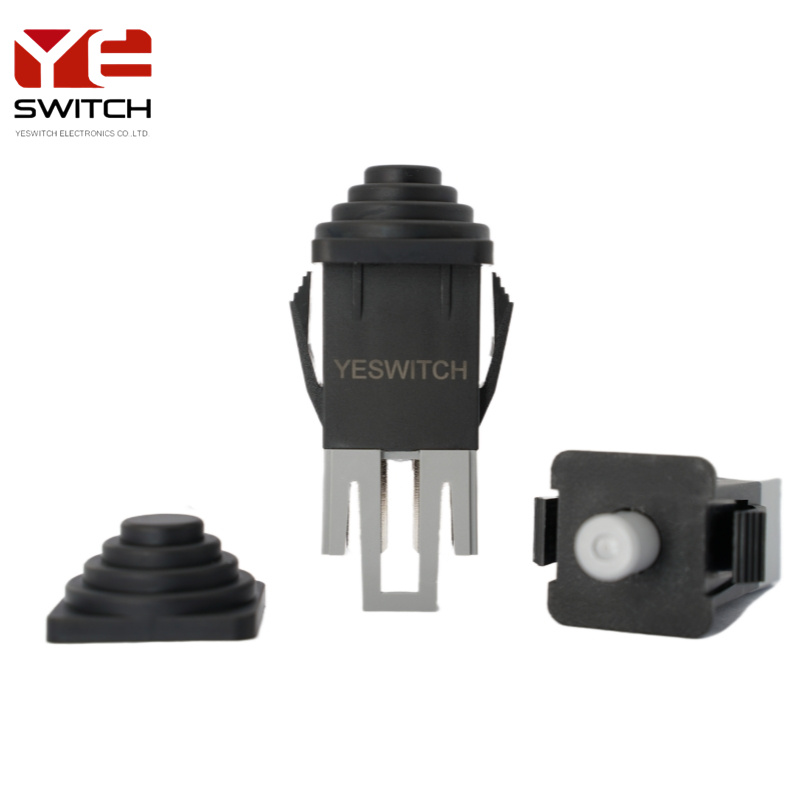

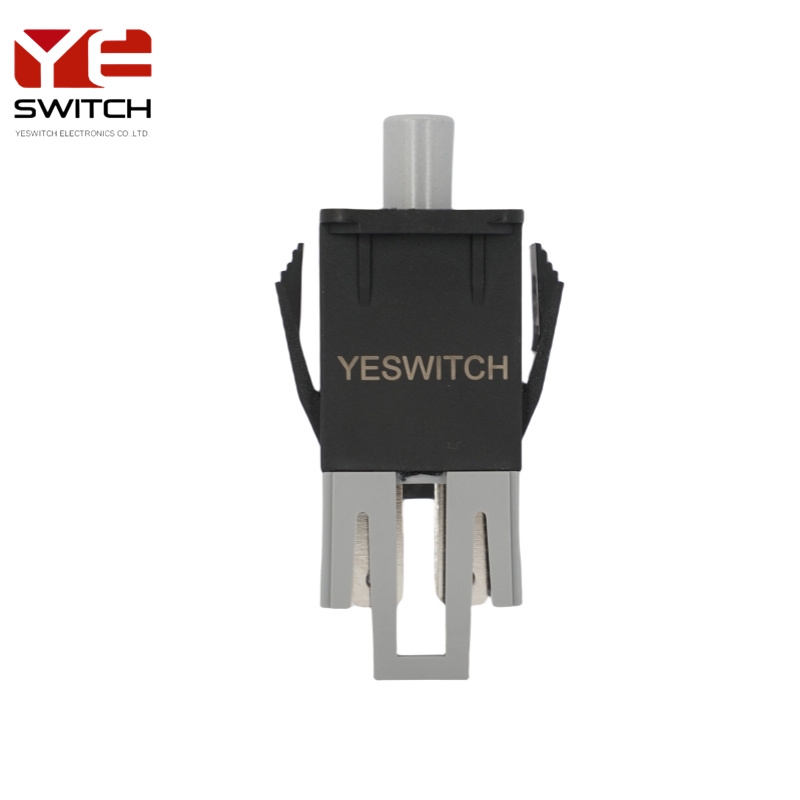

YESWITCH FD01 Snap Mount Plunger Safety Seat Switch

YESWITCH FD01 Plunger Seat Safety Switch sense operator presence. The Interlock Plunger Safety Switch with Normally Open Normally Open function,used in conjunction with a machine or vehicle’s safety system.The operator presence Riding Mower Safety Switch provide a fail-safe condition (shutting down the engine, turning off cutting blades, etc.) when an equipment operator is no longer in the seat. The Momentary Plunger Seat Switches with sealed, unsealed and high-cycle-life Hall Effect styles are available. Choose from twist lock or bolt mounting. With decades of proven reliability, our double pole push button switches are ideal for lawn mowers,golf cart and electric-powered applications.

SPECIFICATIONS
  • RATING: DC12V,3A
  • CONTACT RESISTANCE: 100m MAX.
  • INSULATION RESISTANCE: 1000M MIN.
  • DIELECTRIC STRENGTH: 1000Vrms min.
  • OPERATING FORCE: 2.0Kgf
  • OPERATING TEMP: -40~+85 Degree
  • MECHANICAL LIFE: 75,000 CYCLES

MATERIALS
  • HOUSING: Nylon,Black.
  • PLUNGER: PBT, Gray.
  • CASE: Nylon,Gray

TYPICAL APPLICATIONS INCLUDE

Outdoor Power Equipment,Utility Vehicles,Power Sports,Construction,Farm & Agricultural,Asphalt Pavers/Concrete Mixes,Light Industrial,Material Handling,Off-Highway Vehicles,Mining

Plunger Safety Seat Switch 9Plunger Safety Seat Switch 5Plunger Safety Seat Switch 6Plunger Safety Seat Switch

FD01 Drawing.
