Meskernel-TC-3
2 year ago

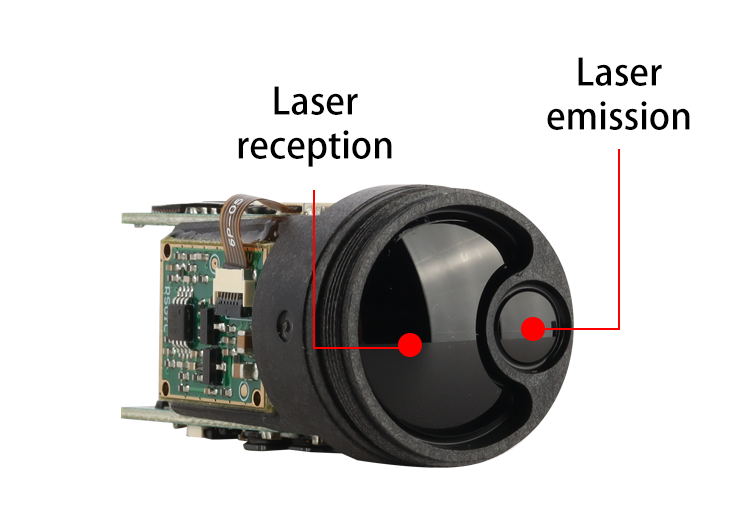

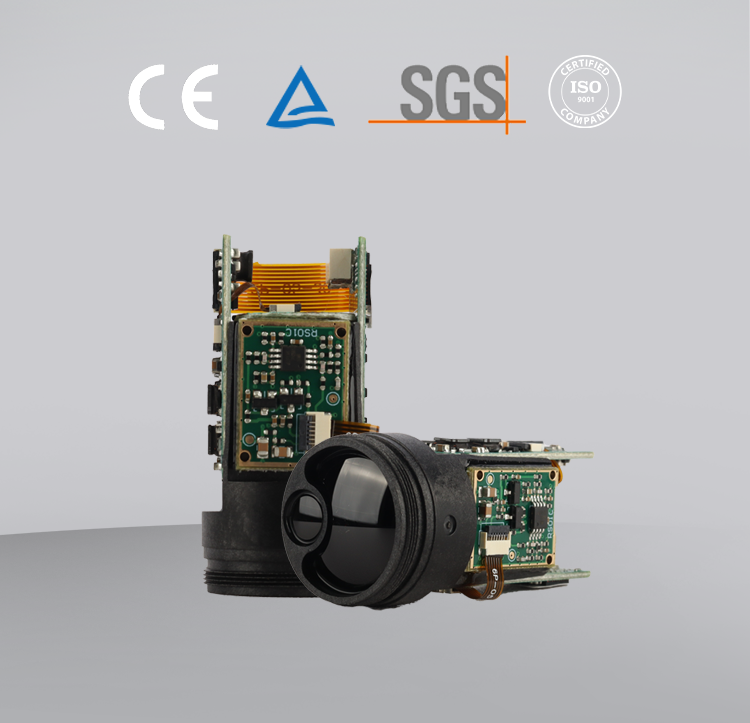

The Meskernel mini cylinder pulse sensor boasts a remarkable ranging ability, capable of accurately measuring distances up to 1500 meters. It relies on the pulse-measuring principle to achieve +/-1 meter accuracy and 0.1m resolution, ensuring high precision in every single measurement. What's more, it only takes less than 1 second to complete a single measurement, making it an exceptionally efficient tool. Additionally, it boasts a lightweight design, weighing only 15g, and a compact size with a length of 43mm and a diameter of 22mm.
Range |
3-800m |
Maximum Single Measurement Time |
About 1s |
Absolute Accuracy |
±1m |
Frequency |
100 Hz |
Resolution |
0.1m |
Light |
905 nm |
Voltage |
Typical value DC +3.3V, Operating Voltage(+2.5V~+3.5V) |
Current |
100mA |
Power |
330mW |
Operating temperature |
0~50℃ |

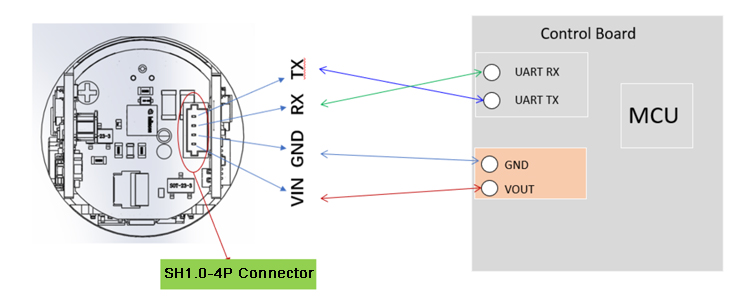

Communication Interface |
TTL/RS232/RS485/Bluetooth |
Serial level |
TTL 3.3V |

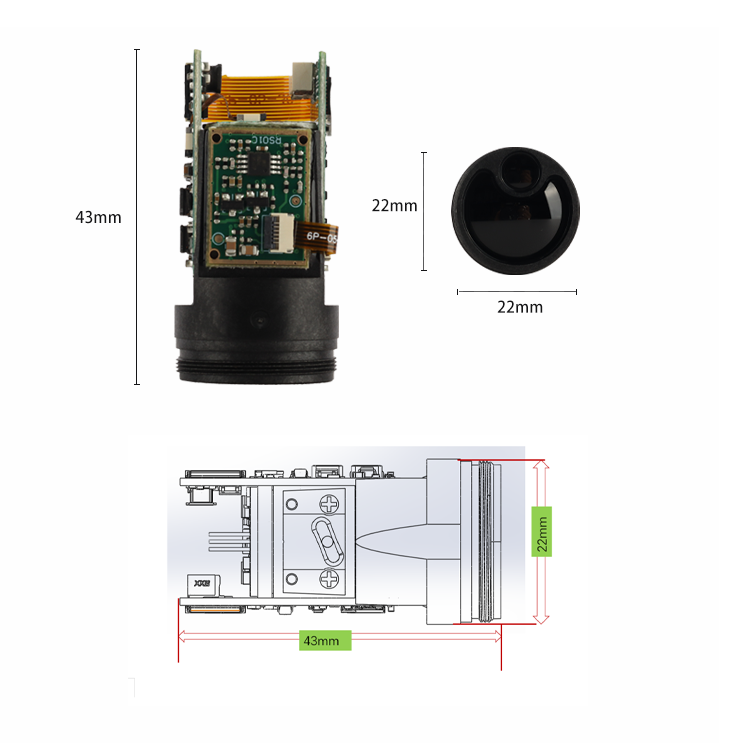

Size |
43*22mm |
Weight |
15g |
This high-performance Laser Sensor offers excellent sensitivity and accuracy, making it an excellent choice for a variety of precision measurement tasks. It is designed to be compact and lightweight, making it easy to integrate into a wide range of systems and devices. Additionally, it features a robust and durable construction, ensuring long-term reliability and stability in even the most demanding applications. Whether you're working in the field of robotics, aerospace, or any other area that requires precise and reliable laser measurements, this Laser Sensor is sure to meet your needs.
