Meskernel-IP67-1
2 year ago
Industrial Long Range IP67 Protection Phase Distance Sensor, high accuracy, high frequency, high stability laser distance measuring sensor.Communication Port Supports TTL, UART, USB, RS232, and RS485.
|
Product Name
|
IP Protection Phase Distance Sensor
|
|
Protection Grade
|
IP67
|
|
Resolution
|
±2mm
|
|
Range of Measurement
|
0.03-80m（100-150m can be customized）
|
|
Measuring Time
|
≥0.3s
|
|
Laser Class
|
Class II
|
|
Laser Type
|
635nm, <1mW，Red visible laser
|
|

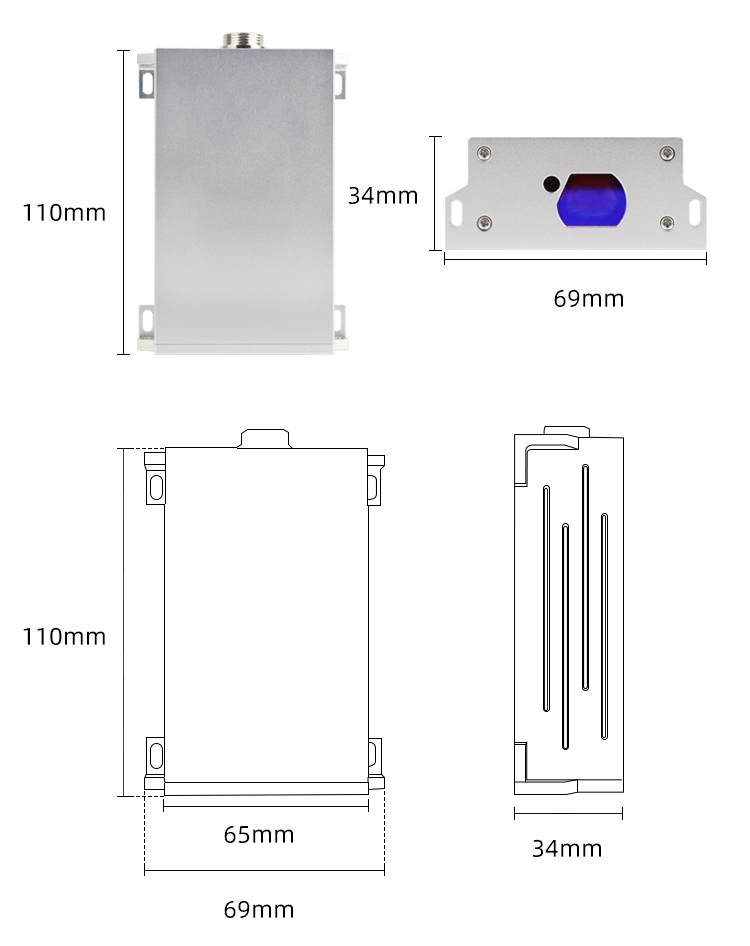

Size
|
110*69*34mm
|
|

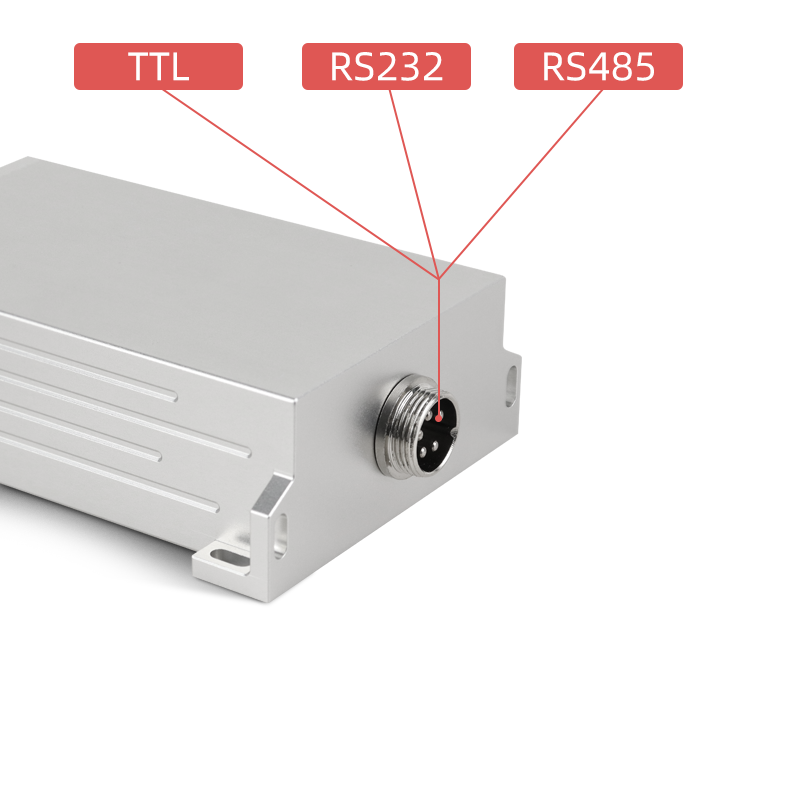

Data Interface
|
TTL/RS232/RS485/4-20mA
|
|
Weight
|
405g
|
|

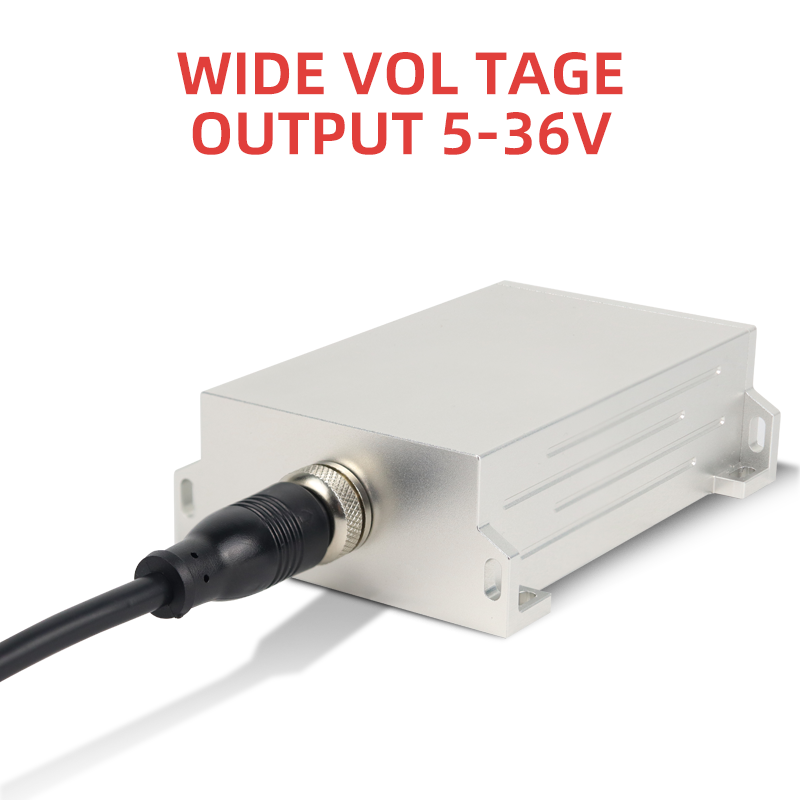

Voltage
|
DC6~336V
|
|
Operating Temperature
|
-20~+60℃ (Can be customized)
|
The IP67 standard refers to the protection safety level. IP stands for Ingress Protection Rating (or International Protection code). IP67 in the 6 refers to the dust can not enter the object of the whole diameter can not exceed the clearance of the shell; 7 refers to normal temperature and pressure, when the shell is temporarily immersed in 1M deep water will not cause harmful effects.
For more information about this product, please contact us.
