plunger safety seat switch

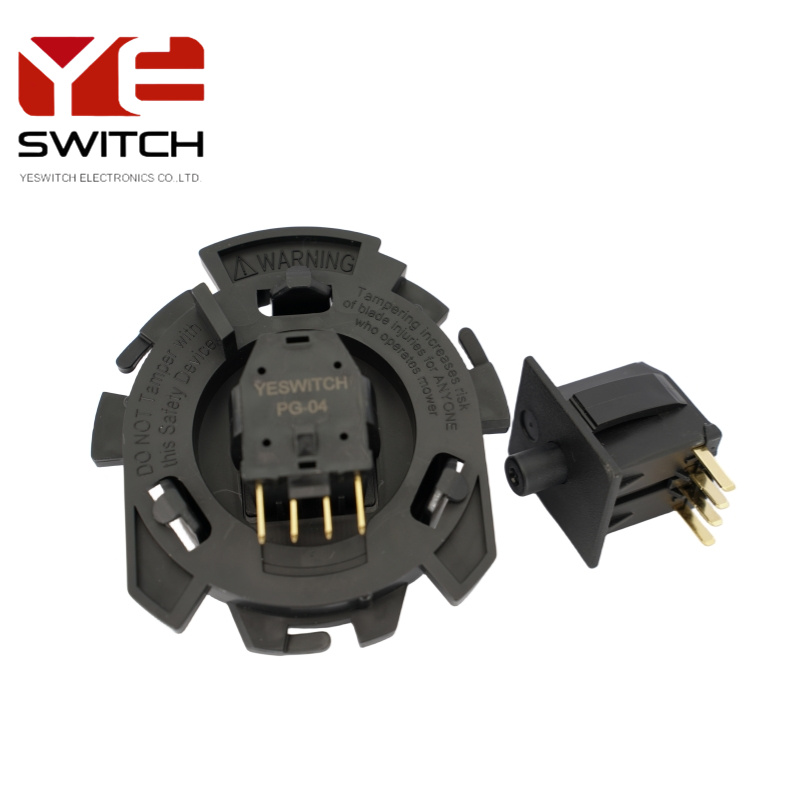

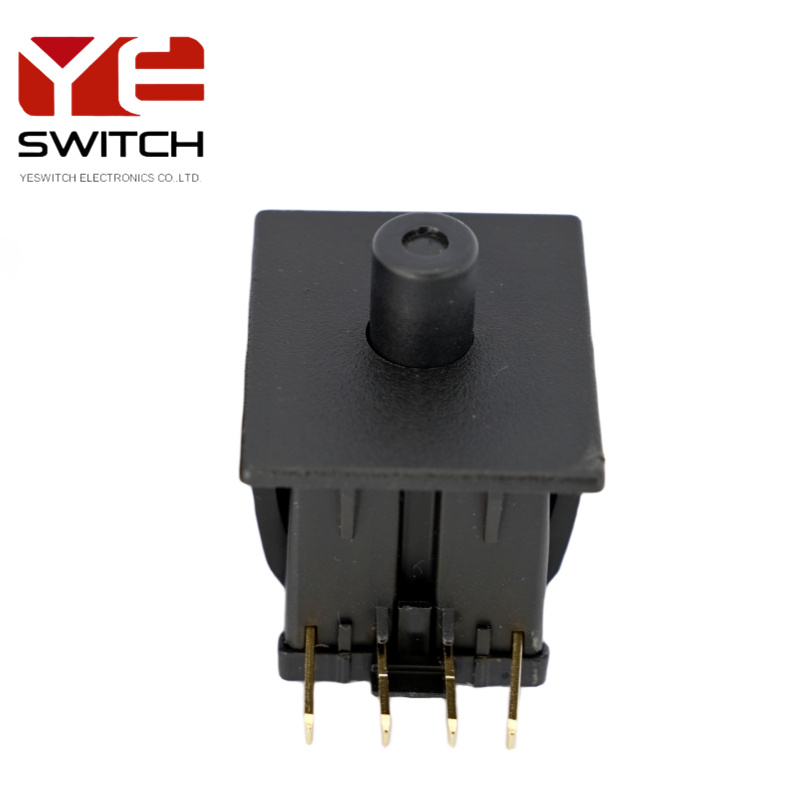

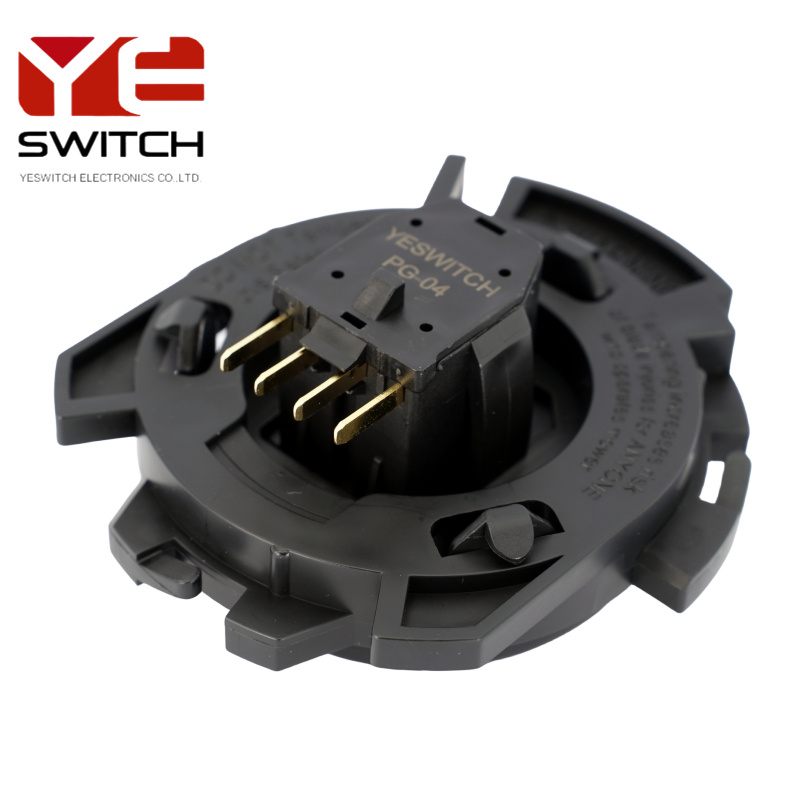

YESWITCH PG-04 Riding-Style Momentary Lawn Mower Safety Seat Switch

The Plunger Seat Safety Switch is a versatile safety seat switch designed for various applications, including lawn mowers, grass cutters, golf carts, and heavy machinery.The Interlock Plunger Safety Switch serves as a reset button switch with two normally open functions.

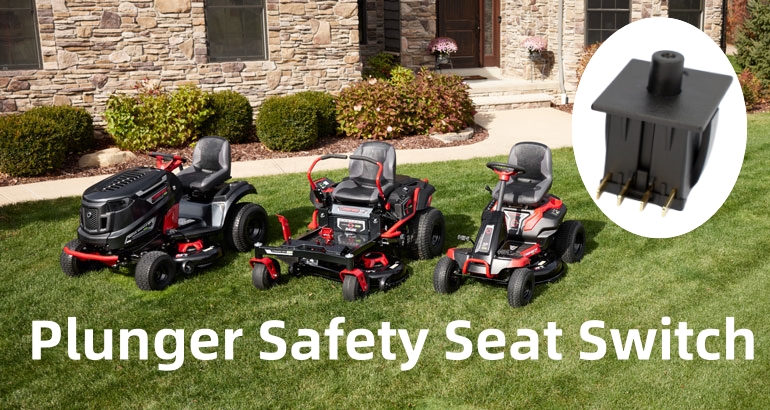

This Mower Seat Safety Switch is specifically designed to be used in the field of garden tools and is an essential component for ensuring safety during operation.The Lawn Mower Switch provides a reliable and efficient solution for controlling the seat position and activating the machinery.

With its easy-to-use push button design, this Plunger Safety Switch offers convenience and user-friendly operation. Its plunger safety seat switch feature ensures that the machinery is only activated when the seat is securely occupied, preventing any accidental starts or unauthorized use.

The PG-04 Riding Mower Safety Switch is a durable and reliable choice, built to withstand the demands of heavy-duty use. Its high-quality construction ensures long-lasting performance, making it ideal for professional landscapers, gardeners, and industrial workers.

Choose the Push Button Seat Switch for your lawn mower or grass cutter to enhance safety and efficiency during operation. Order now and experience the convenience and reliability this switch brings to your machinery.

PG-04(NONO)

• Operating Pressure：1600±300gf
• Operating Stroke:9.5±1.0mm
• Function：(ON)-OFF Momentary
• Body:PP,UL rated:94V-2 Black
• Plunger:PP,UL rated:94V-2 Black
• Terminal:Brass,Gold plate
• Rating:3A 18V DC
• Contact Resistance:50mΩMAX
• Insulation Resistance:100mΩMIN
• Dielectric Strength:1500VAC 1 minute
• Electrical life:10,000 cycles
• Mechanical life:75,000 cycles
• Operating Temperature:-30~80 Degree
• Relative Air Humidity:45%~85%

PG-04 CAP MATERIAL:

• FRAME:PP Black UL rated:94V-2 min
• CAP:PP Black UL rated:94V-2 min
• SWITCH:PP Black UL rated:94V-2 min
• PLUGER:PP Black UL rated:94V-2 min
• Terminal:Brass,Gold plated
• Function:(ON)-OFF
• Contact Resistance: 50mQ Max
• Insulation Resistance: DC 500V 100MQ Min
• Dielectric Strength: 1500VAC 10mA of 1minute
• Electrical life: 10,000 cycles
• Mechanical life :75.000 cycles
• Operating Temperature: -30~80 degree
