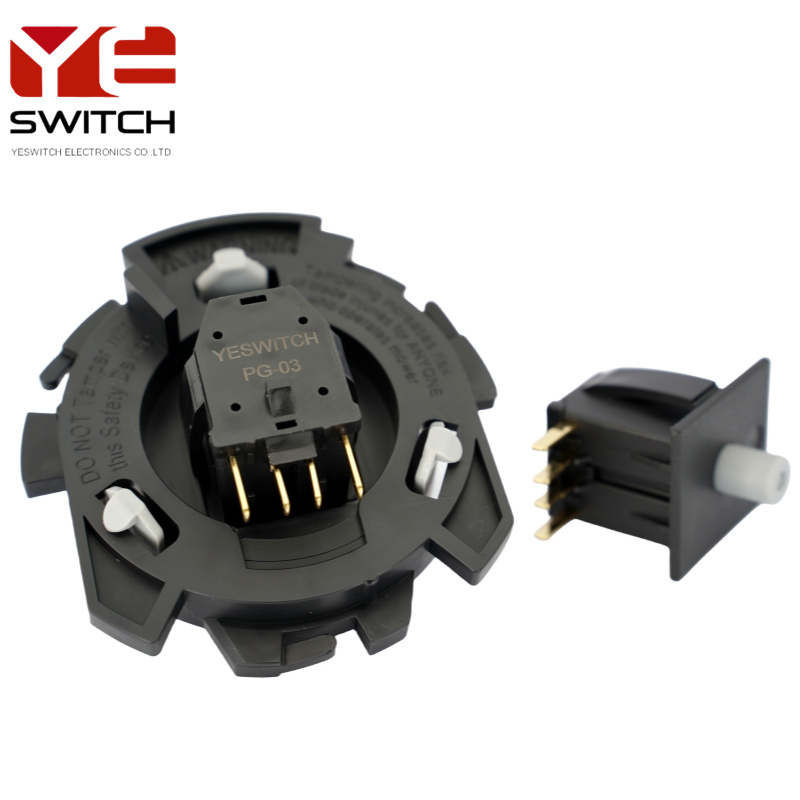

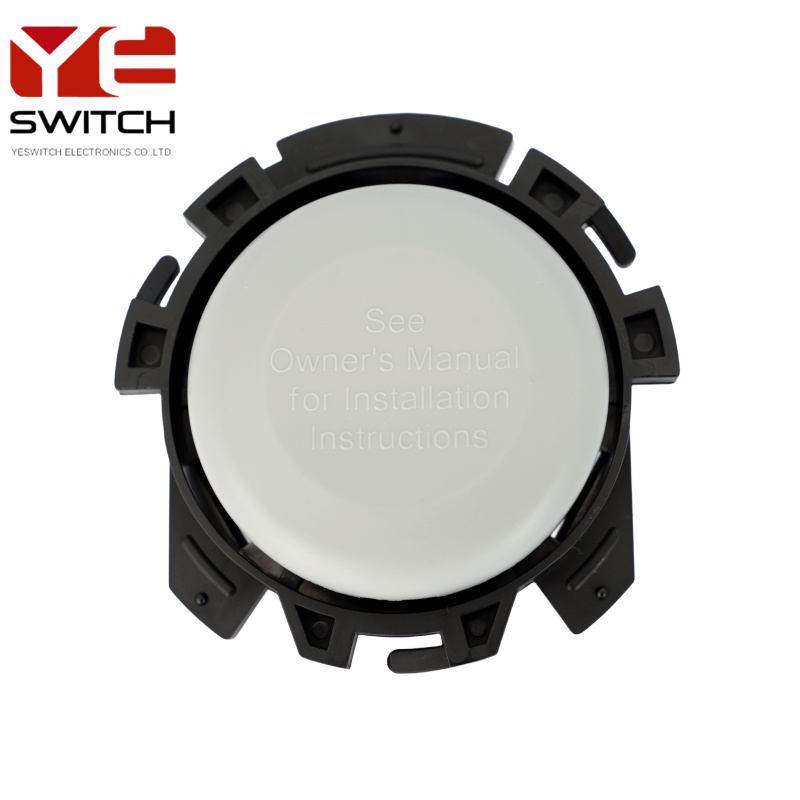

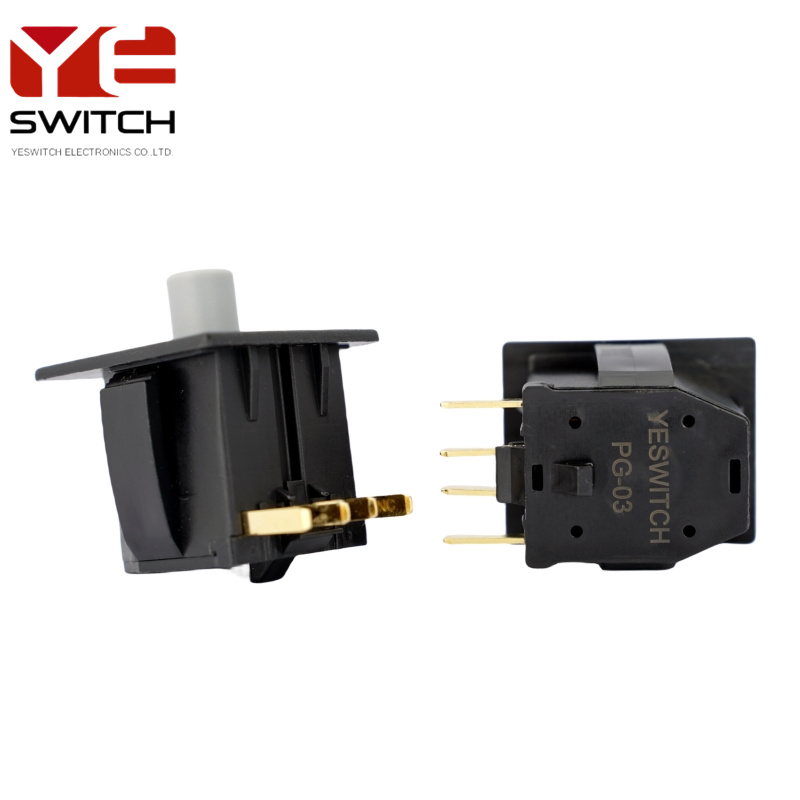

plunger safety seat switch PG-03

YESWITCH PG-03 Durable Push Button Golf Carts Garden Machinery Switch

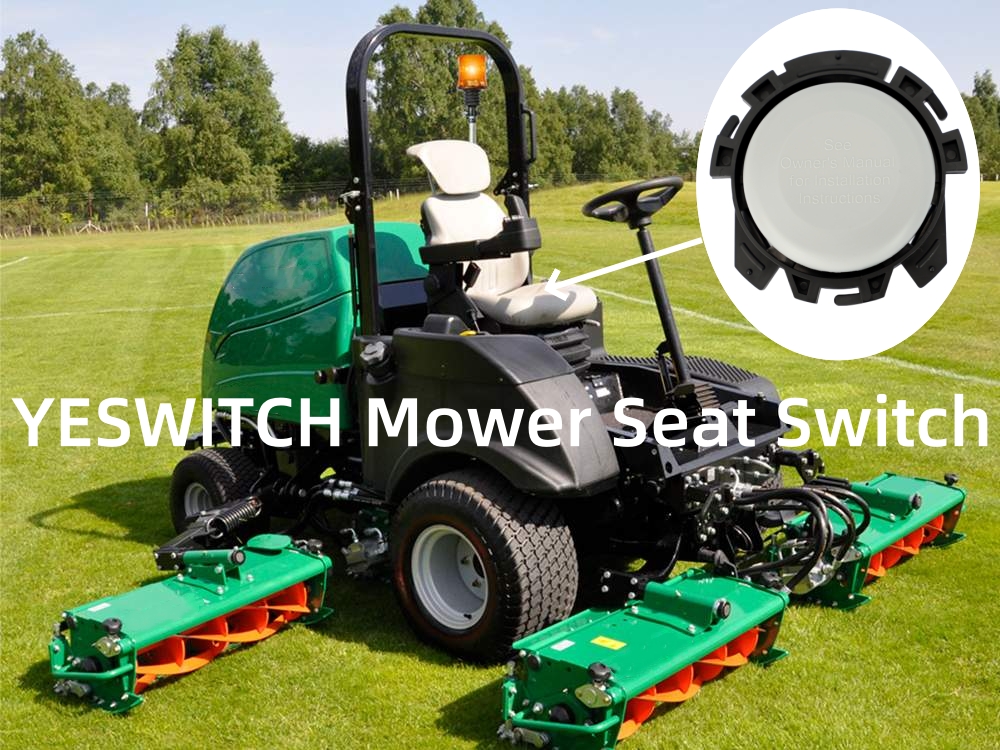

Introducing our high-quality Push Button Seat Switch, designed for use in various applications such as lawn mowers, grass cutters, and garden machinery vehicles. This Lawn Mower Switch, also known as the Plunger Seat Safety Switch, is an essential component for ensuring the safety and convenience of your equipment.

The YESWITCH PG-03 Seat Safety Switch features a 1 normally open and 1 normally closed configuration, along with a reset button. Its easy-to-install design allows for effortless assembly and disassembly, making maintenance a breeze.

Upgrade your equipment's safety features with our Riding Mower Switch. Invest in this essential component today and experience enhanced functionality and peace of mind during your gardening and landscaping tasks.

PG-03(NONC)

• Operating Pressure：1600±300gf
• Operating Stroke:9.5±1.0mm
• Function：(ON)-OFF Momentary
• Body:PP,UL rated:94V-2 Black
• Plunger:PP,UL rated:94V-2 Black
• Terminal:Brass,Gold plate
• Rating:3A 18V DC
• Contact Resistance:50mΩMAX
• Insulation Resistance:100mΩMIN
• Dielectric Strength:1500VAC 1 minute
• Electrical life:10,000 cycles
• Mechanical life:75,000 cycles
• Operating Temperature:-30~80 Degree
• Relative Air Humidity:45%~85%

• FRAME:PP Black UL rated:94V-2 min
• CAP:PP Gray UL rated:94V-2 min
• SWITCH:PP Black UL rated:94V-2 min
• PLUGER:PP Gray UL rated:94V-2 min
• Terminal:Brass,Gold plated
• Function:(ON)-OFF
• Contact Resistance: 50mQ Max
• Insulation Resistance: DC 500V 100MQ Min
• Dielectric Strength: 1500VAC 10mA of 1minute
• Electrical life: 10,000 cycles
• Mechanical life :75.000 cycles
• Operating Temperature: -30~80 degree
