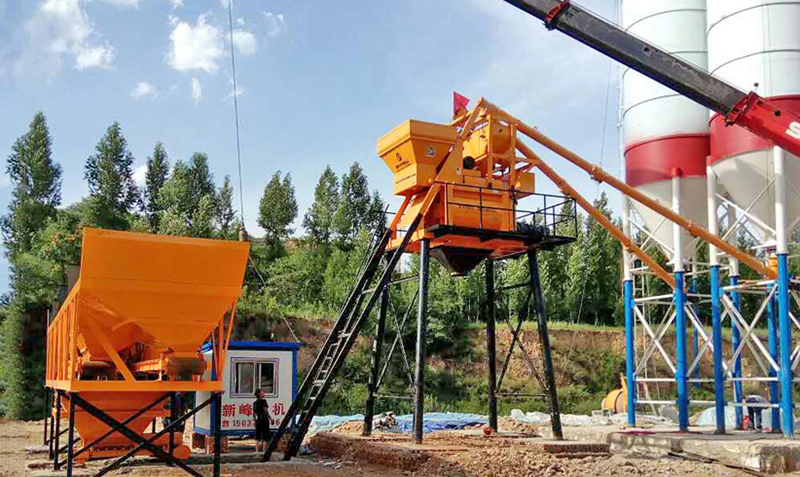

Skip Hoist Type Fully Automatic Concrete Batching Plant
This series of concrete batching plant with skip hoist is a kind of equipment specially designed for customers who need to change construction sites frequently. The concrete batching plant adopts modular structure, which can be quickly disassembled and assembled for easy relocation to different construction sites. This facilitates infrastructure projects such as bridges, buildings, water conservancy projects, railroads, highways, airports, wharves, and large precast concrete batching plants.
Specificities：
It is very simple to install. Due to the modularized structure, each component can be installed independently, and only simple assembly is required according to the instructions. This greatly reduces installation time and labor costs.
The small concrete mixing plant has a compact structure. The components are tightly assembled together and cover a relatively small area. This is very important for the limited space on the construction site. It can complete the concrete mixing and production work in a small space, which improves the working efficiency.
Parameters:
|
Model |
HZS25 |
HZS35 |
HZS50 |
HZS75 |
|
|
Global parameter |
Max productivity (m3/h) |
25 |
35 |
50 |
75 |
|
Discharging height(m) |
1.5–3.8 |
1.6–3.8 |
4.2 |
4.2 |
|
|
Working cycle time(s) |
72 |
72 |
72 |
72 |
|
|
Outline dimension(mm) |
11693×13060×17245 |
12922×13000×17245 |
15689×12500×18704 |
17608×12500×18704 |
|
|
Installed capacity(kw) |
50 |
75 |
88 |
110 |
|
|
Mixer |
Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
|
Batcher |
Model |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
|
Pneumatic system |
Air compressor |
1.0–7 |
1.0–7 |
1.5–7 |
1.8–7 |
|
Discharge pressure(MPa) |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
Displacement (m3/min) |
1.67 |
1.67 |
1.67 |
1.67 |
|
|
Motor power |
5.5 |
5.5 |
7.5 |
11 |
|
|
Measurement system |
Aggregate weighing accuracy |
±2% |
±2% |
±2% |
±2% |
|
Cement weighing accuracy |
±1% |
±1% |
±1% |
±1% |
|
|
Water weighing accuracy |
±1% |
±1% |
±1% |
±1% |
|
|
Additive weighing accuracy |
±1% |
±1% |
±1% |
±1% |
|
