Double Concrete Batching Plant
Double Concrete Batching Plant adopt two JS twin-shaft concrete mixers， so it has high working efficiency and large capacity output it is widely used in large and medium sized construction projects such as road bridge railway and others.
Because weighing and transferring can be performed independently for both concrete mixer two different types of concrete can be produced in different prescriptions with these two mixers completely different in weighing and mixing times. Or if any of the mixers stops for maintenance and cleaning the concrete production can continue uninterrupted from the other one.

Parameters：

Model		HZS25*2	HZS35*2	HZS50*2	HZS75*2	HZS60*2	HZS90*2	HZS120*2	HZS180*2
Global parameter	Max productivity (m³/h)	50	70	100	150	120	180	240	360
	Discharging height(m)	1.5–4.2	1.6–4.2	4.2	4.2	4.2	4.2-4.5	4.5	4.5
	Working cycle time(s)	72	72	72	72	60	60	60	60
	Installed capacity(kw)	50*2	75*2	88*2	110*2	105*2	145*2	210*2	288*2
Mixer	Model	JS500*2	JS750*2	JS1000*2	JS1500*2	JS1000*2	JS1500*2	JS2000*2	JS3000*2
Batcher	Model	PLD800*2	PLD1200*2	PLD1600*2	PLD2400*2	PLD1600*2	PLD2400*2	PLD3200*2	PLD4800*2
Pneumatic system	Air compressor	1.0–7	1.0–7	1.5–7	1.8–7	1.5–7	1.8–7	1.8–7	1.8–7
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	Displacement (m³/min)	1.67	1.67	1.67	1.67	1.67	1.67	1.67	1.67
	Motor power	5.5*2	5.5*2	7.5*2	11*2	7.5*2	11*2	11×2*2	11×2*2
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%

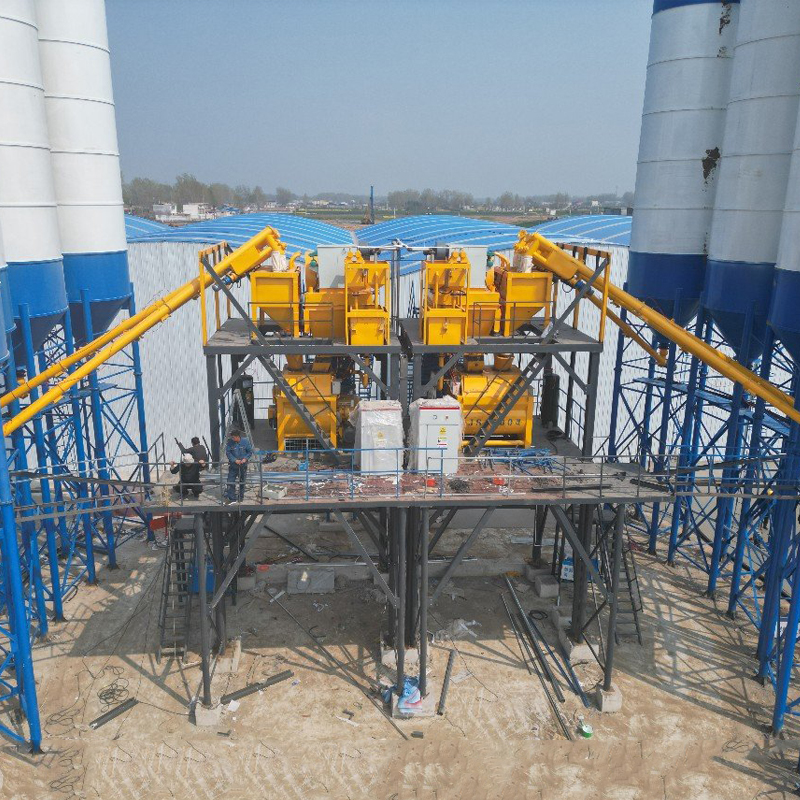

Double Concrete Batching Plant 2 Jpg
