conveyor mesh belt dryer

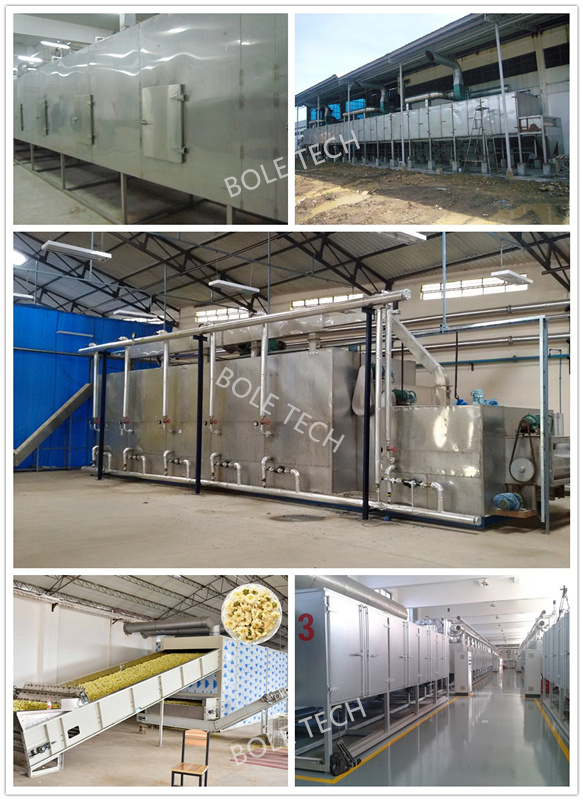

Description of Conveyor belt dryer:

The mesh belt dryer is continuous drying equipment. It is suitable for drying the raw materials that is in the shape of piece, strip or granule and is good in permeability. Particularly it is suitable for such raw materials that contain high moisture and are not permitted high temperature for example, desiccated coconut,  dehydrated vegetable, fruit, catalyst, drinking tablet of Chinese traditional medicine. Its features are fast in drying speed, strong in vaporization, good in quality of products. Typical products Dehydrated vegetable, granule feed, monosodium glutamate, check extraction, organic pigment, synthetic rubber, propylene fiber, medicine, medical material, small wooden products, plastic products, aging or solidifying for electronic elements. For pasted raw material such as filter cake, it can be dried after shaped through granulator or extruder.

Working principle of mesh belt dryer:

Materials that to be dried are distributed on the conveyor belt by feeding device. Conveyor belt will go through the channel that consists of one or several heating units. Each heating unit is equipped with air heating system and circulation system. And Each channel has one or several dehumidifying system. When the conveyor belt goes through it, hot air will pass though the material that on the belt from up to down or from down to up so that the material can be dried uniformly. Heating source can be steam, heat transfer oil, flue-gas or electricity. Fan is used for heat convection and transferring heat to material, and fresh air is supplied and damp air is exhausted. In the drying time cabinet, proper relative temperature and humidity can be kept.

Parameters of mesh belt dryer:
