* The operation is simple and convient.
* You can set the interval and duration time.
* With Emergency Stop button for emergency situations.
Filter cleaning table
2 year ago
Product details
Product Overview
Filter Regeneration System

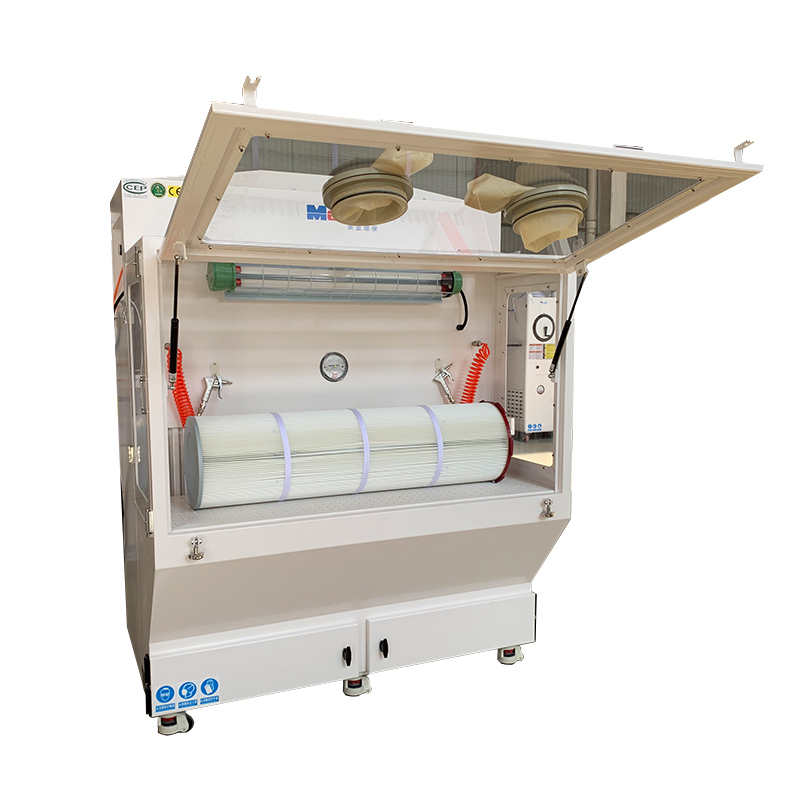

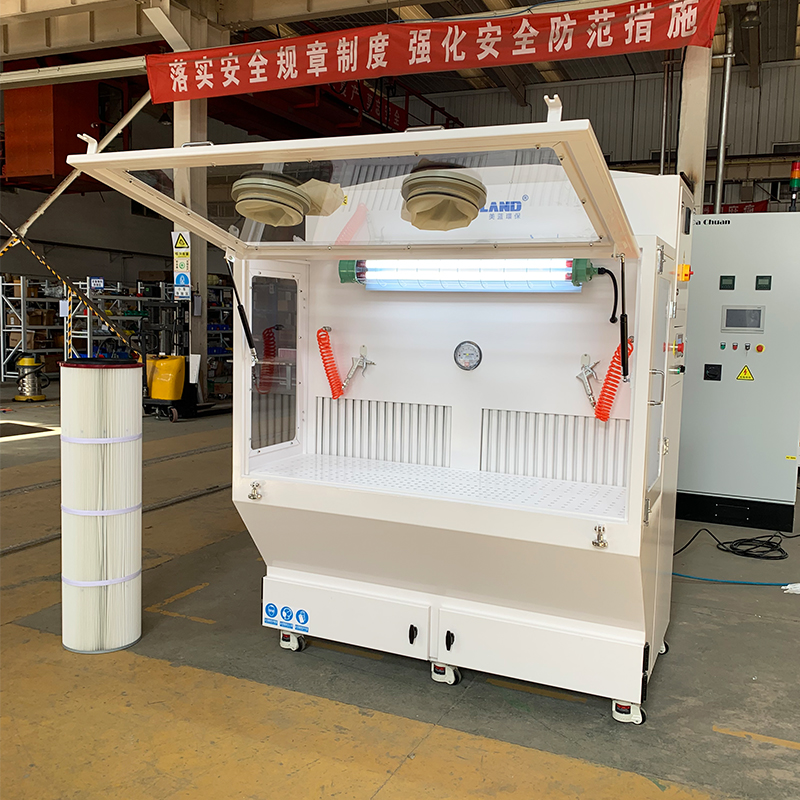

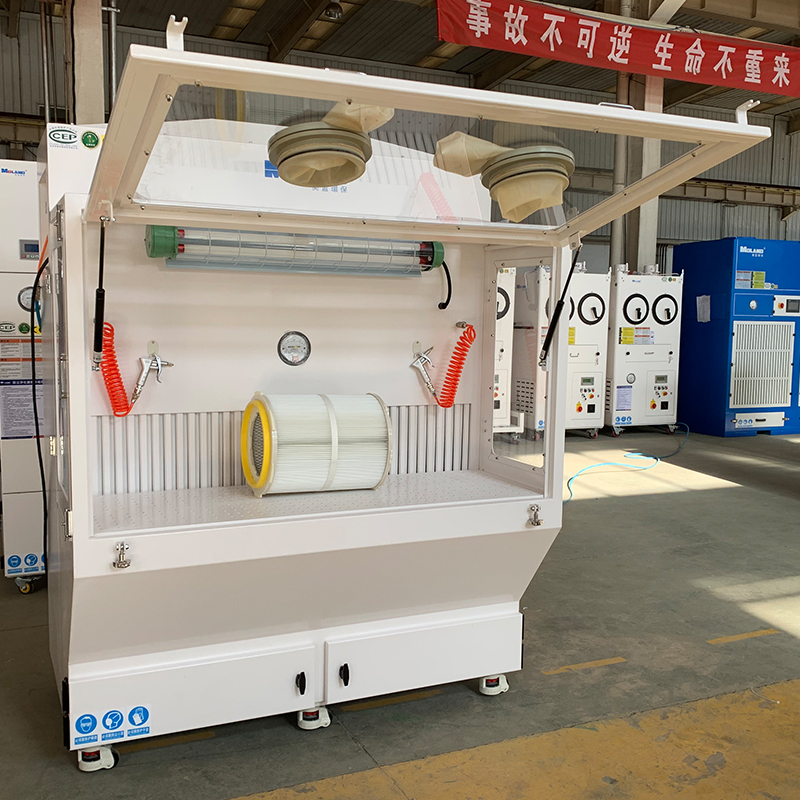

This Downdraft Table is designed for cartridge filter cleaning for precious material dust collection and recycle. The cleaning table is equipped with downdraft and side suction ports, so that the dust can be colleced directly. It can solve the problems of the Cartridge Filter that the cleaning effect is poor, the filter life is affected and the filter efficiency is low.
 |
 |
 |
 |
PRODUCT SPECIFICATIONS
|
Model
|
MLWF280FR
|
MLWF300FR |
|
Power
|
2.2KW
|
3KW |
|
Working Voltage
|
380V 50Hz 3P; customized
|
380V 50Hz 3P; customized |
|
Air Volume
|
2200~2600 m3/h
|
3500 m3/h |
|
Filter Accuracy
|
0.3um
|
0.3um |
|
Filter Material
|
Film coated polyester fiber
|
Film coated polyester fiber |
|
Filter Area
|
20 m2
|
40 m2 |
|
Filter Size
|
φ325*300mm (4pcs)
|
φ325*300mm (8pcs) |
|
Cleaning Mode
|
Automatic cleaning
|
Automatic cleaning |
|
Noise Level
|
<=75dBA
|
75±3dBA |
|
Size
|
1100*1100*1950mm
|
1550*1103*2020mm |
|
Weight
|
350kgs
|
650kgs |
PRODUCT CONFIGURATION
 |

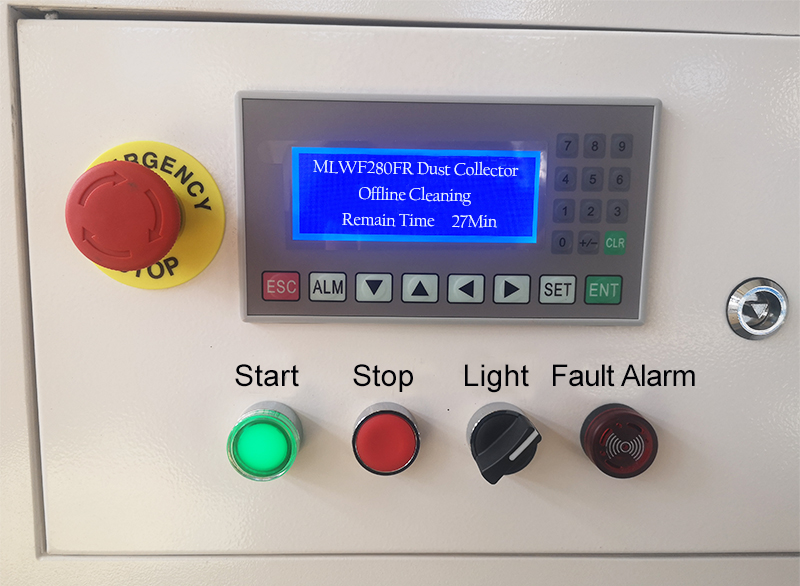

Moland Intelligent Control System
* Moland intelligent control system.
* The operation is simple and convient. * You can set the interval and duration time. |
|

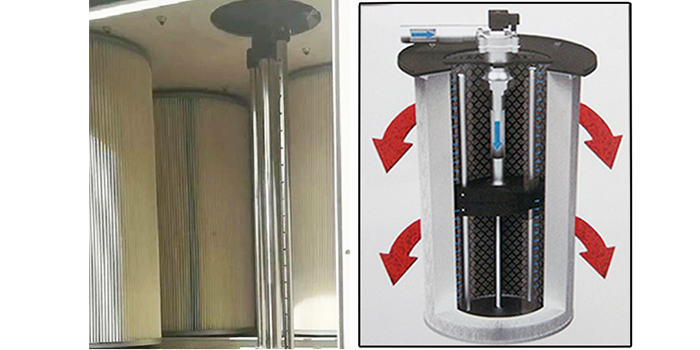

Automatic rotary backblowing cleaning
The automatic rotary backblowing system, which can automatically clean the filter cartridge with a filtration efficiency
of 99.7%. |
 |
 |
Film coated polyester fiber cartridge filter Size: Φ325*300mm Qty: 4 pcs Material: Film coated polyester fiber Filter area: 20m^2 Cleaning mode: automatic rotary backblowing Filtration efficiency: >99.9% Filter Accuracy: 0.3μm |
|

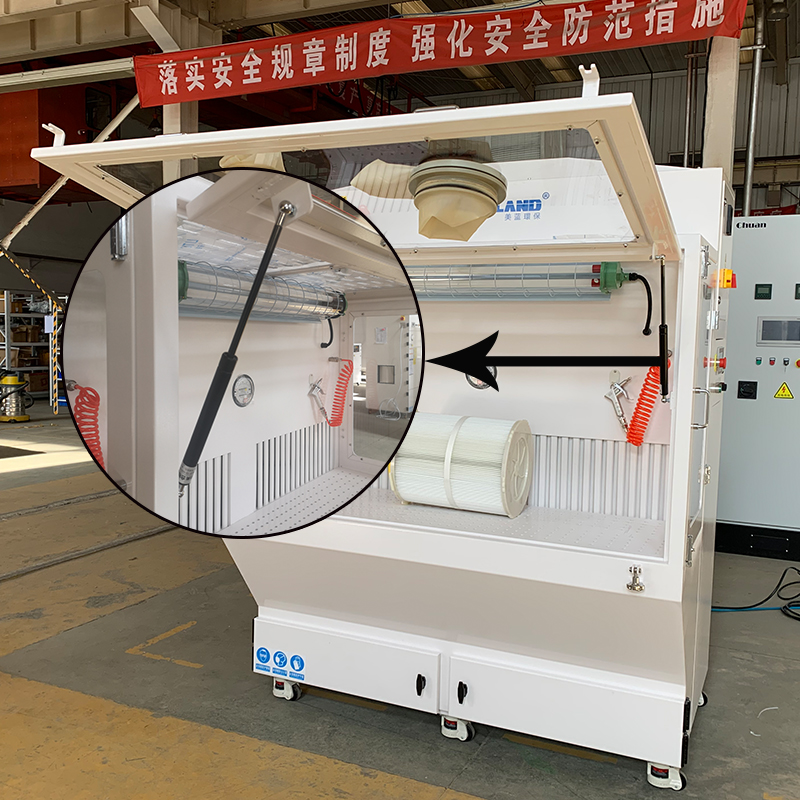

Pnumatic Spring With two pcs of pnumatic spring for front door supporting. |
 |
