TOF laser distance sensor
2 year ago

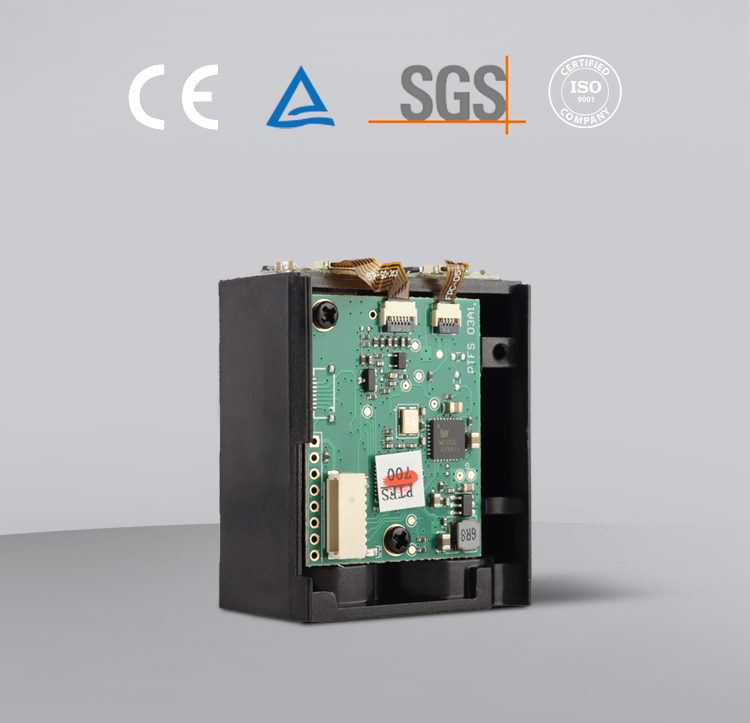

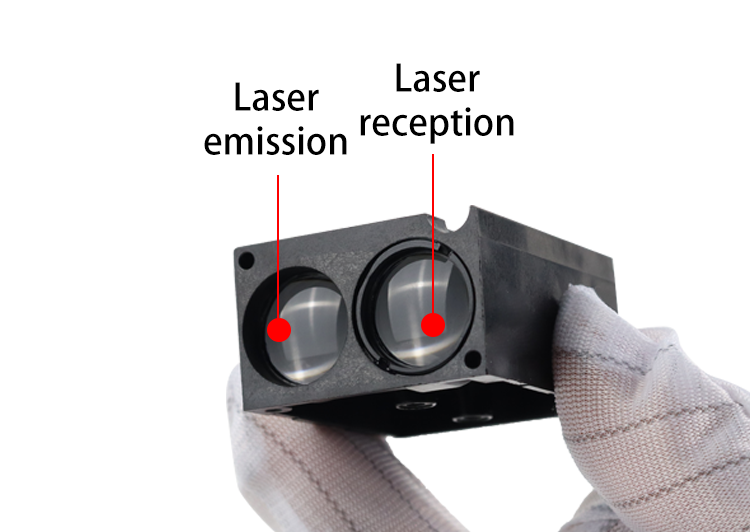

The PTFS pulse laser ranging module is a module that uses pulsed laser technology to measure distance. It emits a series of pulsed laser beams and calculates the distance between the target object and the module by measuring the round-trip time of the laser beams.PTFS laser rangefinfer sensor has high ranging accuracy and long ranging range, strong anti-jamming ability, support for secondary development, a large number of ranges, safe for the human eye 905 nm, customizable frequency (20-3500 Hz), available for both indoor and outdoor. It can be widely used in speed measurement, displacement measurement, distance measurement and other fields.
|
Range
|
3-700m
|
|
Maximum Single Measurement Time
|
About 1s
|
|
Absolute Accuracy
|
±1m
|
|
Frequency
|
100 Hz
|
|
Resolution
|
0.1m
|
|
Light
|
905 nm
|
|
Voltage
|
+2.5V~+3.5V
|
|
Current
|
100mA
|
|
Power
|
330mW
|
|
Operating temperature
|
0~50℃
|
|

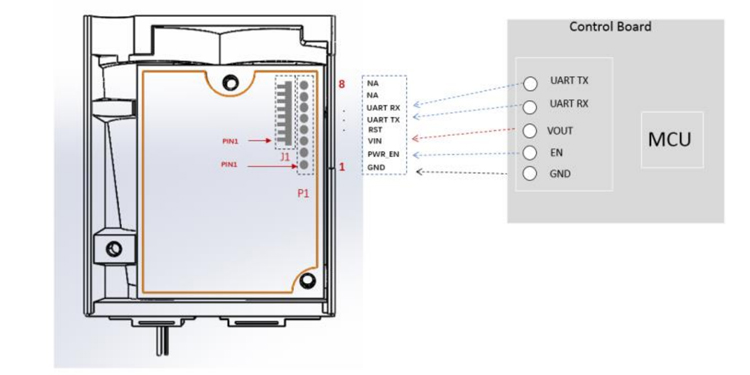

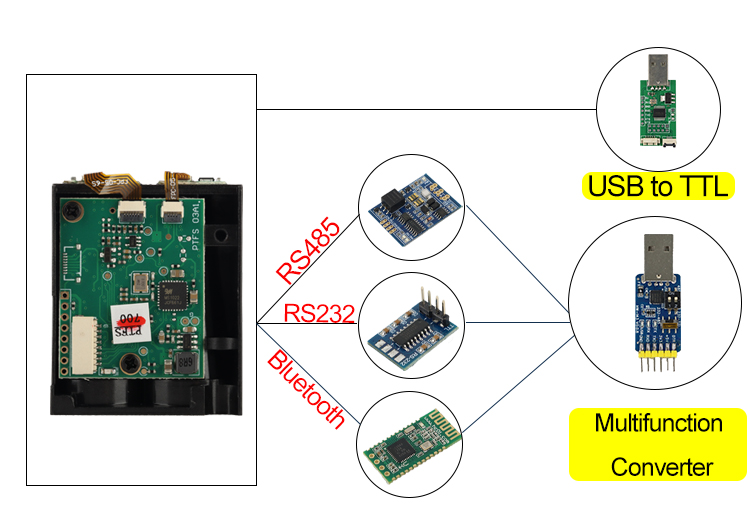

Communication Interface
|
TTL/RS232/RS485/Bluetooth
|
|
Serial level
|
TTL 3.3V
|
|

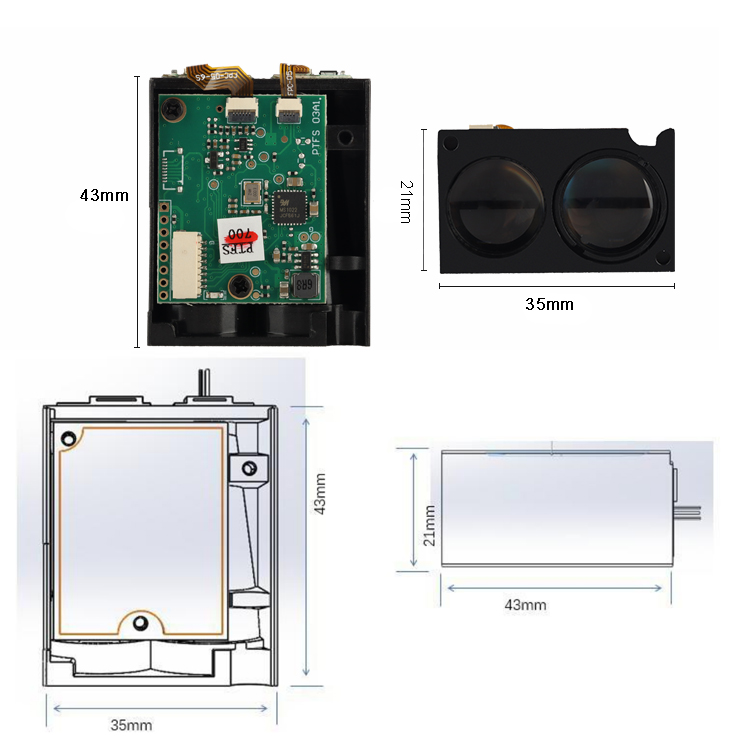

Size
|
43*35*21mm
|
|
Weight
|
About 30g
|
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
We have different kinds of ranging modules, such as:IP Protection Sensors,TOF Laser Distance Sensor,2D 3D radar Sensor、Industrial Laser Distance Sensor、Optical Distance Sensors.
