API 11ax Valve Couple Ceramic Valve Ball and Valve
2 year ago
Tungsten Carbide valve ball and valve seat
API Standard Cobalt Alloy Valve Seats and Valve Balls
• 2. Valve Ball and Seat performance directly affects the use effect and service life of the sucker rod pumps.
• 3. Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of
contact.
Main Features
• 1. Material: Stainless steel; Cobalt Alloy, cast; Cobalt Alloy,Tungsten Carbide, Titanium Carbide .
• 2. Standard: API 11AX .
• 3. High resistance against corrosion and oxidation;
Features:
1. Different material is available according to the corrosion characteristics.
2. Different heat treatment process
Material performance table
| CODE | INSTRUCTION | HARDNESS | MATERIAL |
| A1 | Stainless steel | Ball: HRC 58-65 | UNS 41000–UNS 44000 |
| Seat: HRC 52-56 | 9Cr18Mo & 6 Cr18Mo | ||
| B1 | Cobalt alloy casting | Ball: HRC 56-63 | Cobalt, chromium and tungsten alloy |
| Seat: HRC 50-56 | |||
| B2 |
Cobalt alloy, powder metallurgy |
Ball: HRC 53-60 | Cobalt, chromium and tungsten alloy |
| Seat: HRC 51-57 | |||
| C1 | Tungsten carbide | Ball: HRA 88-89 | Tungsten with cobalt adhesive |
| Seat: HRA 88-89.5 | |||
| C3 | Titanium carbon compounds | Ball: HRA 89-90.5 |
Tungsten and titanium with cobalt adhesive carbon compounds |
| Seat: HRA 89-90.5 |

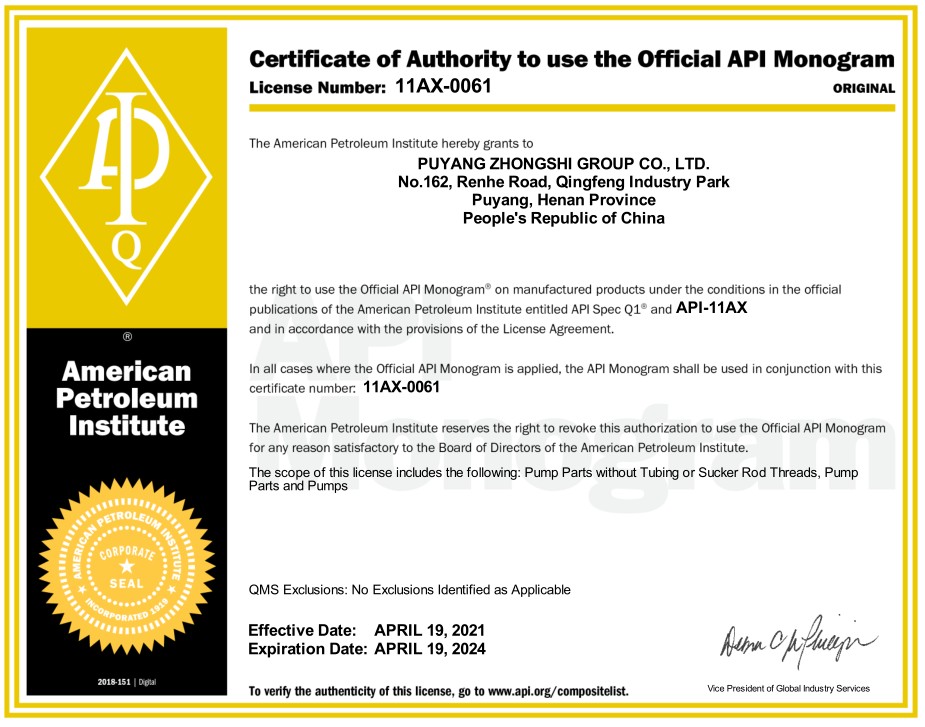

API 11AX CERTIFICATE
