big coil for diameter 110mm HDPE pipe

2 year ago

18 0 

Zhangjiagang Huade Machinery Technology Co.,Ltd

1 min

Product details

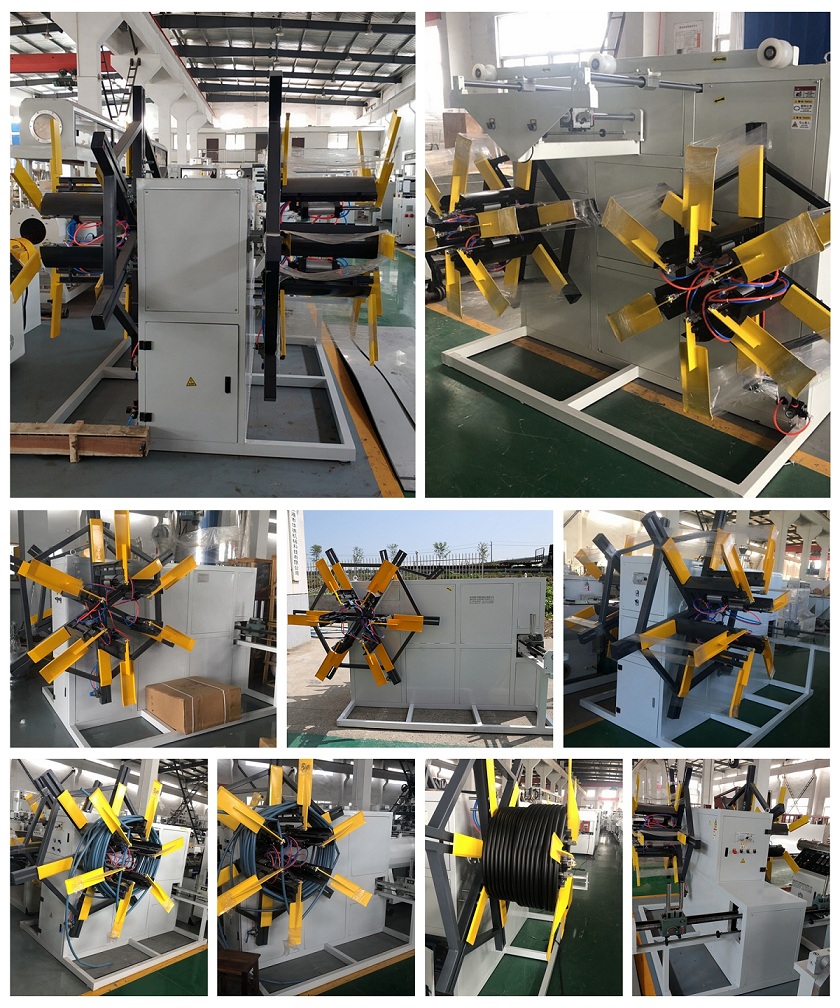

Singles Double Plate Plastic Pipe Winder

Characteristics and Advantages:

1. The automatic coil winding machine adopts automatically winding, adjusting winding speed and winding method. Its has two disks for continuous winding.

2. The plate of this automatic coil winding machine is controlled by gas, winding adopt torque motor, with special equipment to arrange the pipe, this pipe winding machine can wind pipe well and working very stable.

3. The design has chute, the leaf can also slide in the chute, the coil diamter can be adjusted.

4. There are mainly model for HDPE/PE/PP/PPR/PVC hose pipe winding: 16-40mm single/double plate pipe winding machine, 16-63mm single/double plate pipe wiinding machine, 50-110mm single/double plate winding machine; 20-110mm double plate winding machine, 50-160mm single plate winding machine.

5. We can also design and make it according to your request.

Singles Double Plate Plastic Pipe Winder

Main Technical Parameters:

1. SPS32 automatic coil winding machine

Inner Diameter	500-1000mm
Winding Speed	0.5-40m/min
Winding width	300-500mm
Winding Pipe diameter scope	Ø16-32mm
Moment motor power	10N.M
Dimension	2800x1700x1800mm
Weight	1200kg

2. SPS63S automatic coil winding machine

Model	SPS-63 double plate
Winding diameter	550-1500mm
Winding speed	0.5-40m/min
Winding width	300-500mm
Winding pipe diameter scope	16-63mm
Air pressure	0.6MPa
Torque motor power	16N.M, 25N.M
Dimension	3000x2800x2000mm
Weight	1800kg

3. SPS110 automatic coil winding machine

Inner Diameter	1600-2000mm
Winding Speed	0.5-15m/min
Winding width	1000mm
Winding Pipe diameter scope	Ø50-110mm
Moment motor power	50N.M
Dimension	3500x2000x3500mm
Weight	3000kg

Coiler Series 750
