Insertion ultrasonic heat flowmeter
2 year ago
Technical characteristics of ultrasonic cooling and heating meter
Measurement accuracy: Level 2
Power supply: 8-36V DC or 85-264V AC
Temperature range: 0-90℃; 0-160 ℃
Temperature difference range: 0-75℃
Environmental grade: Class B or C
Optional output: single standard isolated RS485 output; Single channel isolation 4-20mA or 0-20mA output; Dual isolated OCT output (programmable OCT1 pulse width between 6-1000ms, default 200ms); Single two-way serial peripheral universal interface, can directly connect a number of such as 4-20mA analog output board, frequency signal output board, thermal printer, data logger and other external equipment through the series form
Other features: automatic memory of the previous 512 days, the previous 128 months, the previous 10 years of positive and negative net cumulative traffic; Automatic memory of the first 30 times of power down time and flow and can be automatically or manually replenished, and can be read through MODBUS protocol

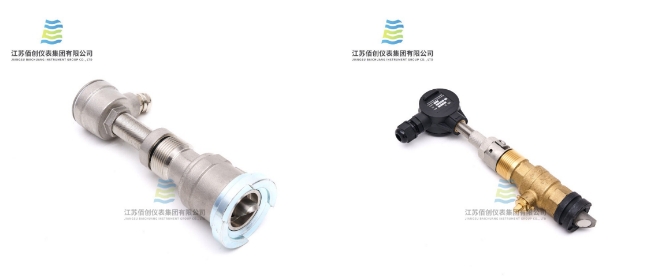

Flow sensor: Plug-in
Temperature sensor: PT100
Ultrasonic flowmeter pipe diameter and corresponding measuring range:
DN15 0.159-7.630m³/h
DN20 0.283-13.565m³/h
DN25 0.442-21.195m³/h
DN32 0.723-34.726m³/h
DN40 1.1304-54.259m³/h
DN50 1.413-84.780m³/h
DN65 1.791-143.278m³/h
DN80 2.713-217.037m³/h
DN100 4.239-339.120m³/h
DN125 6.623-529.875m³/h
DN150 9.538-763.020m³/h
DN200 16.956-1356.480m³/h
DN250 26.494-2119.500m³/h
DN300 38.151-3052.080m³/h
DN350 69.237-4154.220m³/h
DN400 90.432-5425.920m³/h
DN450 114.453-6867.180m³/h
DN500 141.300-8478.000m³/h
DN600 203.472-12208.320m³/h
DN700 276.948-16616.880m³/h
DN800 361.728-21703.680m³/h
DN900 457.812-27468.720m³/h
DN1000 565.200-33912.000m³/h
DN1200 813.888-48833.280m³/h
DN1400 1107.792-66467.520m³/h
DN1600 1446.912-86814.720m³/h
DN1800 1831.248-109874.880m³/h
DN2000 2260.800-135648.000m³/h
DN2200 2735.568-164134.080m³/h
DN2400 3255.552-195333.12m³/h

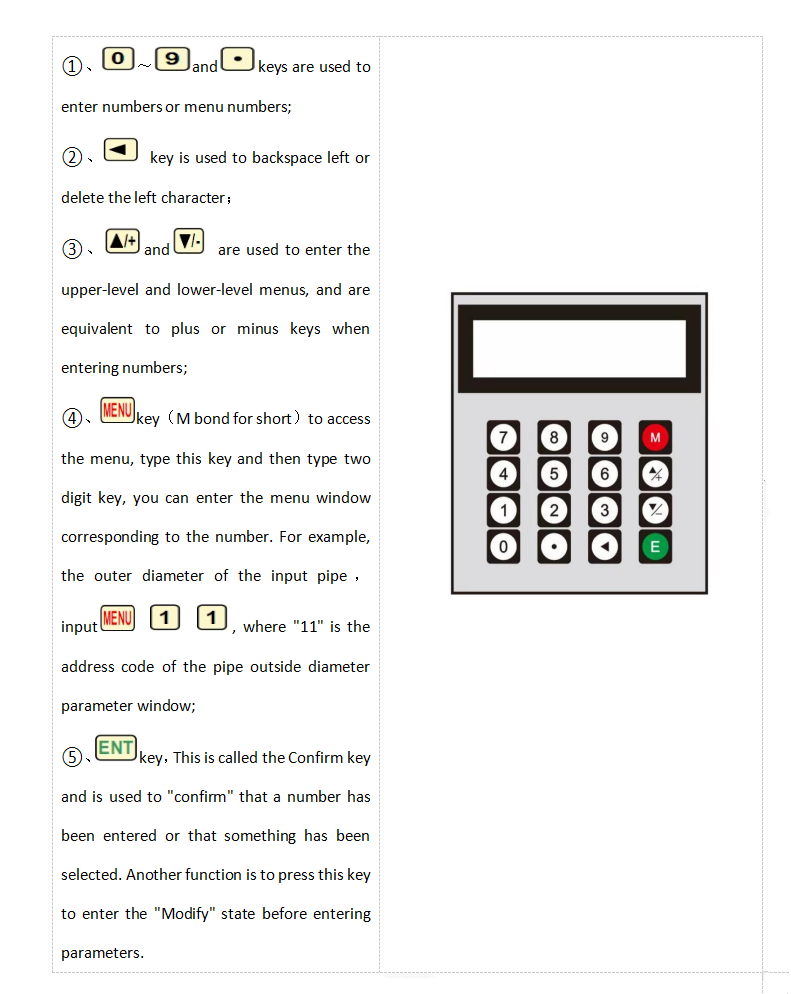

Operation and display
