Turbine flowmeter
2 year ago
1. The converter has its own signal amplification and shaping circuit, which can directly connect both ends of the signal coil and only needs to be connected to the sensor with two wires
2. Measurement accuracy of 0.5 level
3. Multiple-selectable output modes of 4~20mA, pulse, and 485 communication (users can purchase corresponding models according to their needs)
4. Free choice of DC 24V and battery power supply. The battery is powered by a 19Ah lithium-ion battery with a battery life of up to 4 years
Use environment
1.Ambient temperature -20～+55℃
2.Relative temperature 5%～95%
3.Atmospheric pressure 86～106KpaMeasured fluid temperature
1.Ordinary type -20～+120℃
2.Explosion-proof type -20～70℃
Our company's main products include Electromagnetic flowmeter、Ultrasonic cold or heat flowmeter、Open channel flowmeter、Electromagnetic cold or heat flowmeter.

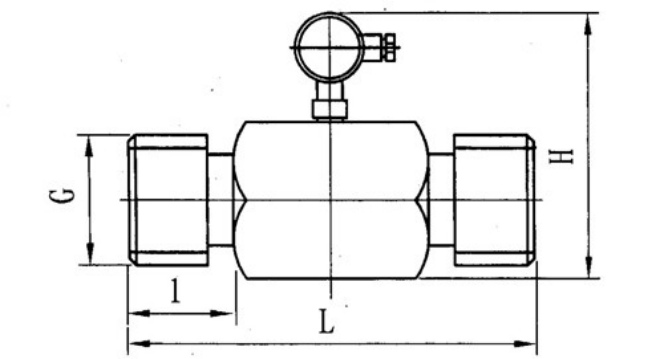

Threaded connection structure:

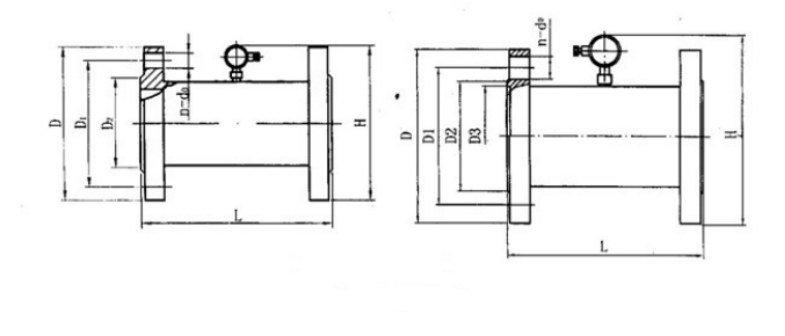

Flange connection structure:

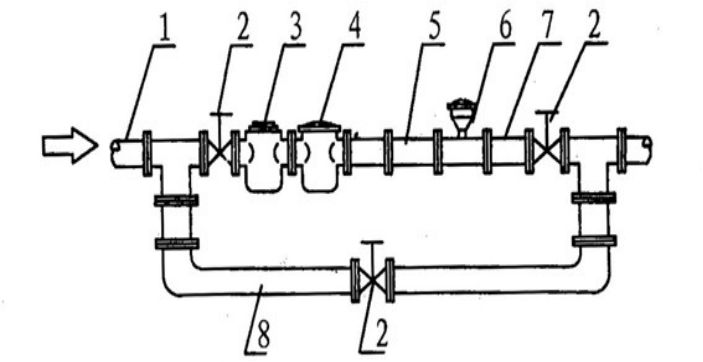

Turbine flow meter pipeline configuration diagram:
