BE46.5×17-150-YX 12KB•Al alarm is a commonly used alarm, with 33g weight to ensure the portability and lightness of the product, ≥20mH inductance, is one of the best-selling alarm products on the market.
Our company produces many electro-acoustic materials, Microphone, Buzzer, Speaker and Receiver, which all belong to our production scope. If you have any need, please feel free to contact us.
|
Product Name |
BE46.5×17-150-YX 12KB·Al |
|

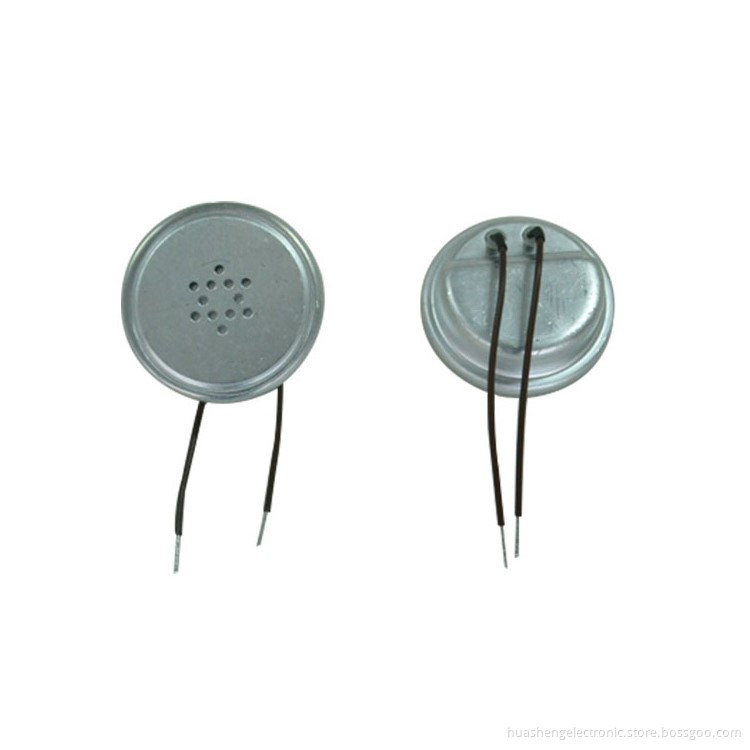

Product picture |
|
Characteristics
No.
Item
Specifications
1
Rated Voltage
24Vp-p
2
Operating Voltage range
1~30 Vp-p
3
Coil Resistance(20℃)
22Ω±10%
4
Inductance
≥20mH
5
Sensitivity at 1kHz 1000mV
120±3 dB
6
Minimum SPL
95dB（at 1m 24Vp-p 1KHz）
7
Frequency range
300~3400Hz
8
Operating Temperature
-40~+85℃
9
Storage Temperature
-50~+95℃
10
Housing Material
Aluminum
11
Terminal Material
Sn Plated Copper
12
Weight
33g

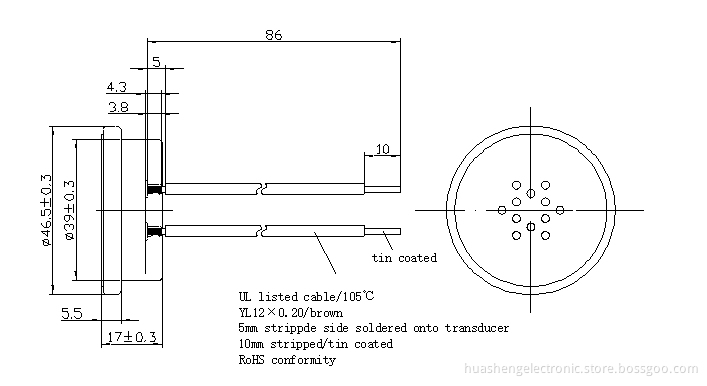

Drawing
