The alarm is rated at 24V and is a device used to monitor and alarm voltage anomalies in the circuit. When the voltage in the circuit exceeds or is lower than the set rated voltage value, the alarm will issue a sound or optical signal to remind the user to pay attention to and deal with the problem in time to avoid damaging the equipment or causing safety risks. This kind of alarm is usually widely used in various electrical equipment, control systems and industrial production, and plays a role in protecting equipment and personnel safety.
Product Name
BE39×15.5-220-P 6KB·Al
Product picture
Characteristics
|
No. |
Item |
Specifications |
|
1 |
Rated Voltage |
24Vp-p |
|
2 |
Operating Voltage range |
1~30 Vp-p |
|
3 |
Coil Resistance |
90Ω±10% |
|
4 |
AC Impedance at 1kHz |
220Ω±25% |
|
5 |
Sensitivity at 1kHz 1000mV |
≥110dB |
|
6 |
Minimum SPL |
90dB （at 1m 24Vp-p 1KHz） |
|
7 |
Frequency range |
300~3400Hz |
|
8 |
Operating Temperature |
-40~+85℃ |
|
9 |
Storage Temperature |
-50~+95℃ |
|
10 |
Housing Material |
Aluminum |
|
11 |
Terminal Material |
Sn Plated Copper |
|
12 |
Weight |
28g |

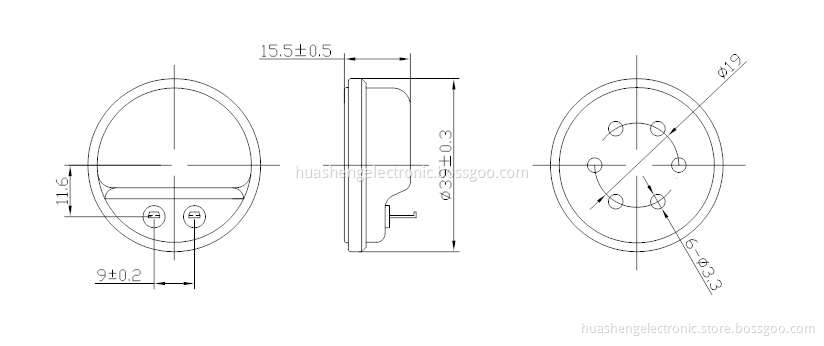

Drawing
