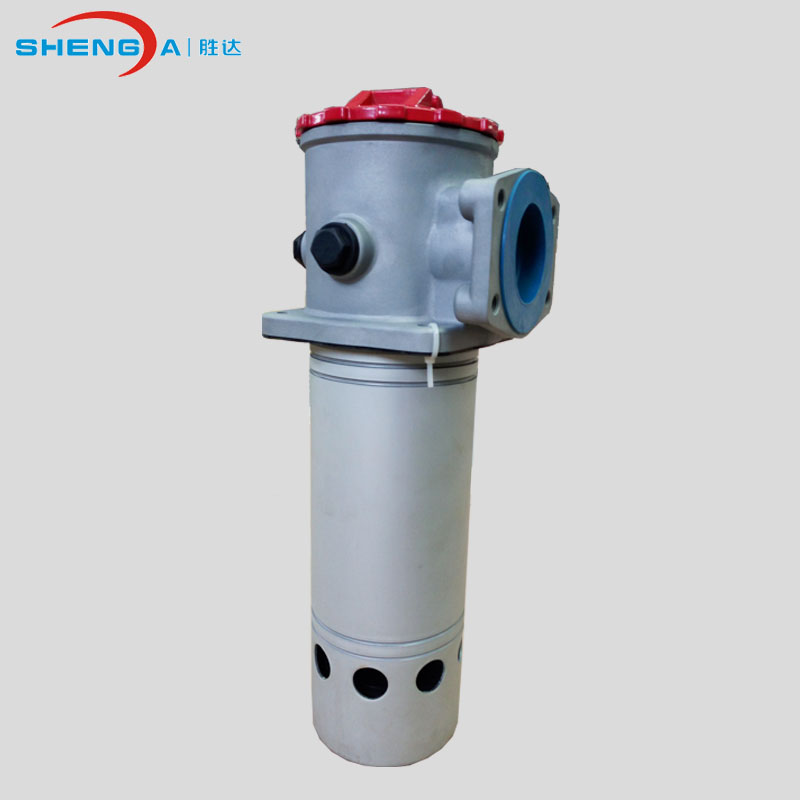

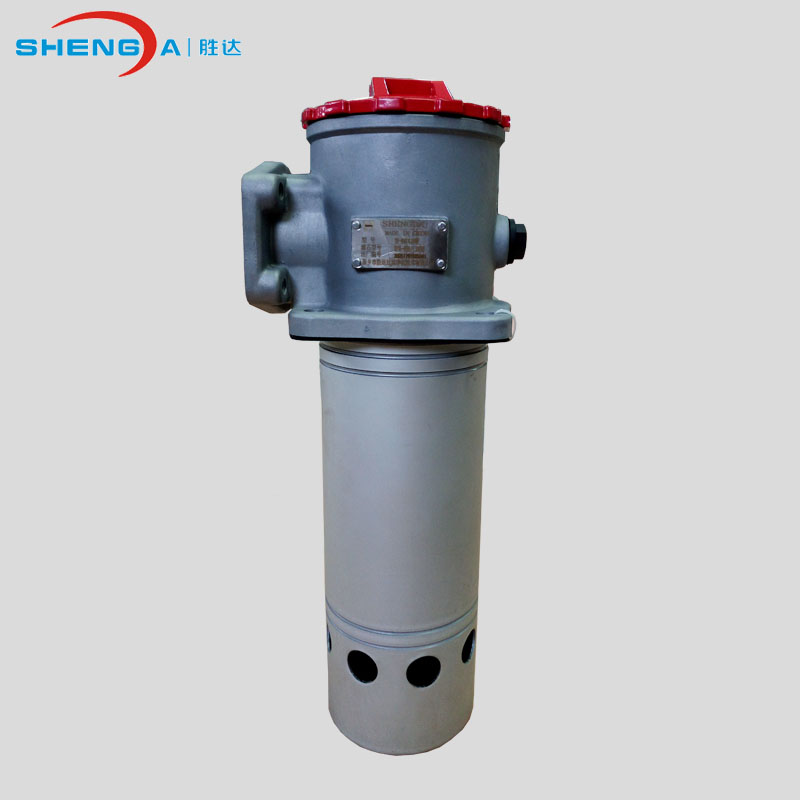

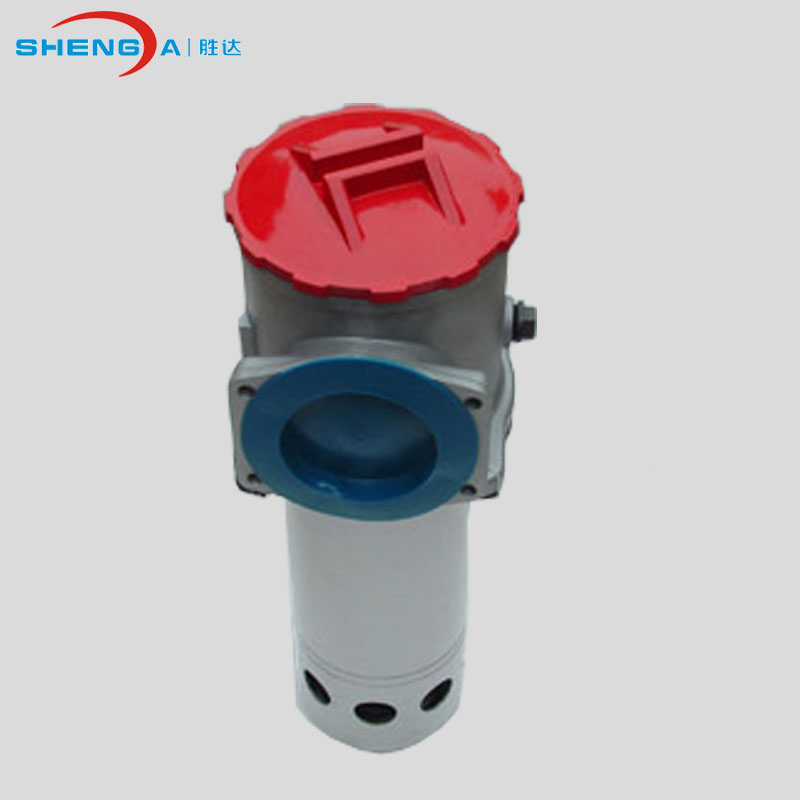

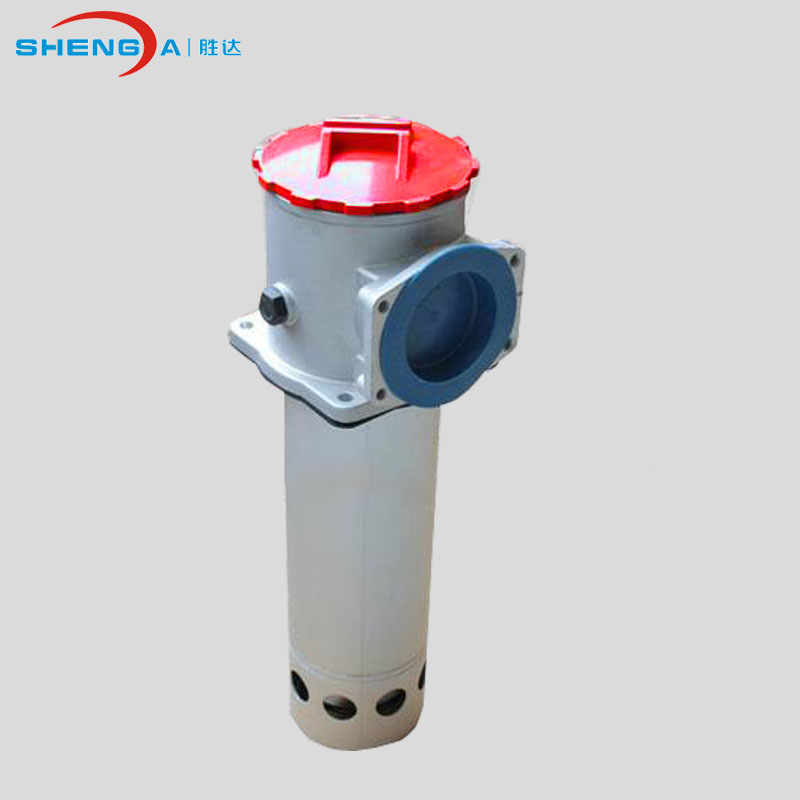

Suction Oil Filter RFB

Oil Tank Top Suction Filter

--up to 1300 l/min

---material: Aluminum

1.   Introduction

SDTF suction oil filter consists of cover with bypass valve, filter element and housing. It can be installed vertically in the side, on the top or in the bottom of oil tank.

2.    Description

Mounting          in the side, at the top or in the bottom of oil tank

Temperature range    - 10 ℃ ~ + 100 ℃

Pressure setting of clogging indicator △ Pa=0.18 bar-10% (others on request)

Cracking pressure of bypass valve △ Po=0.2 bar+10% (others on request)

3.    Notes:

*Filter housing must be earthed;

*When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.

4.    Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.
