City Power CP5 COB light

High Quality IP67 Architecture COB Flood Light CP5

StrongLED is a total solution provider and manufacturer of LED Lighting and Control System. Since 2000, StrongLED has been focusing on LED lighting and control systems,our product including Dot Light, Linear Light, Wall Washer, Spot Light, LED Flood Light, High Power Flood Light, Addressable Flood Light, Anti-glare LED Flood Lights, Narrow Beam Angle Flood Light, Architecture Flood Light, In-ground Light, Led Master Controller, DMX512 Master Controller, Smart Dmx 512 Controller, Digital Master Controller , etc.

 Features

■ Exquisite and gold ratio structure design-Compact square form-factor and high-performance exterior IP67 rating luminaire designed to light large-scale outdoor structures ranging from bridges and facades to monuments and skyscrapers.

■ High performance-Maximum 21,200 lm at 5000 K. COB LED for white color and SMD LED for RGBW color. Power watt is available in three main versions: 160 W, 170 W and 140 W to meet different application requirements. Optional beam angle choices, and superior narrow beam angle lens solution for RGBW color mixing lighting effect.

■ Reliability and Stability-Die-cast aluminum body and electrically neutral thermal path design. Standard finish color of black, gray and white or preferred customized finish color. Integrated with the AC power supply, and protected by the outdoor waterproof die-cast material driver box. Capability of anti surge protection, 6K/10K for on/off light, 4K/6K for DMX control light. IP 67 rating for exterior environment.

■  Flexible accessories-Choose from a full line of high-quality accessories, from lens mounts, diffuser filters, to internal or external louvres.

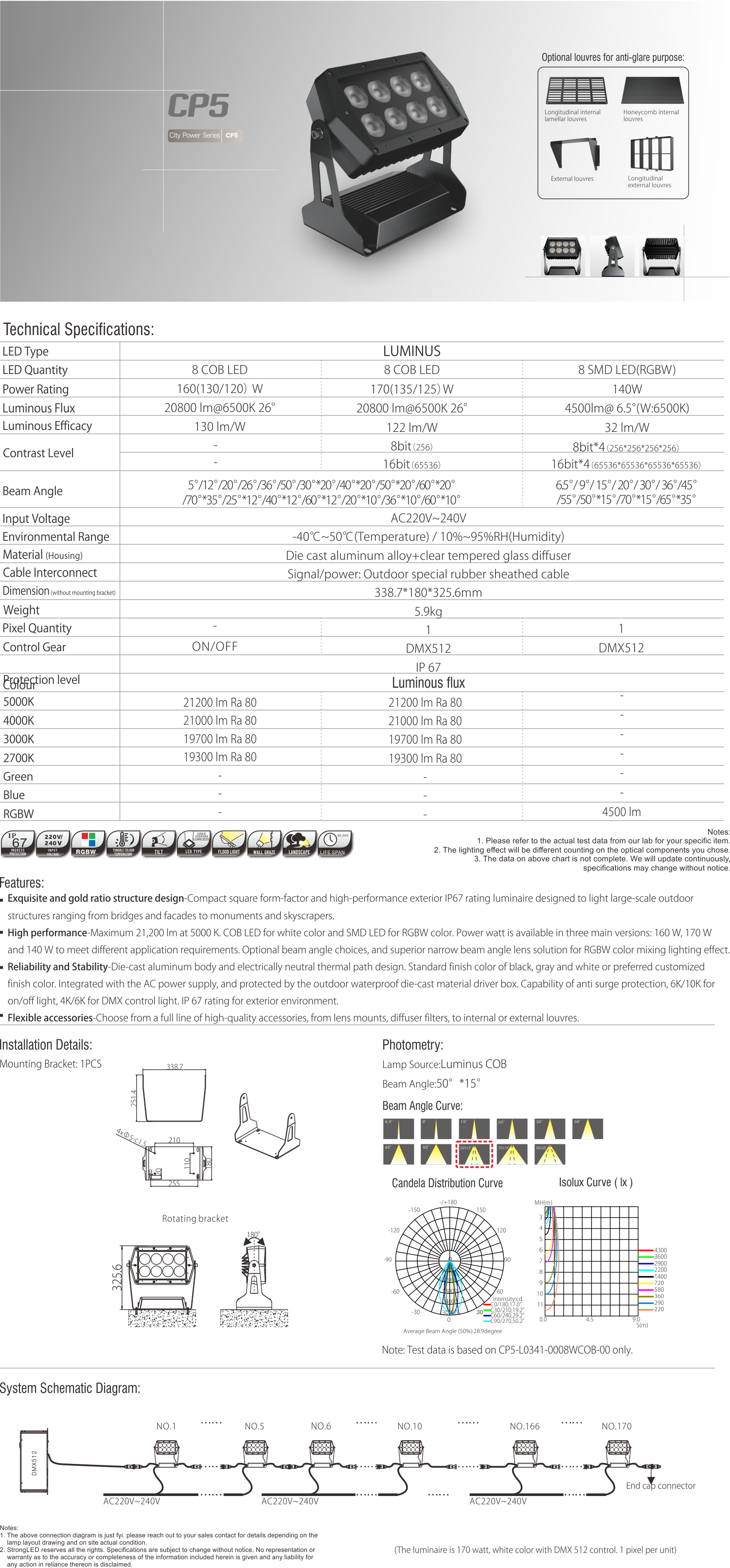

 Parameters

■ LED source:Luminus
■ Power Rating: 160W, Input Voltage:AC220V~240V
■ CCT:2700K-5000K, ON/OFF

■ LEDs:8 COB LEDs
■ Beam Angle:5°/12°/20°/26°/36°/50°/30°*20°/40°*20°/50°*20°/60°*20°/70°*35°/25°*12°/40°*12°/60°*12°/20°*10°/36°*10°/60°*10°
■ Dimension: 338.7*180*325.6mm(without bracket)
■ Protection: IP 67
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum +clear tempered glass diffuser
■ Cable length: 500mm with waterproof connectors
■ Cable (2 in/1 out)
■ Rotary bracket with 180D

■ Pixels:1
