Product details

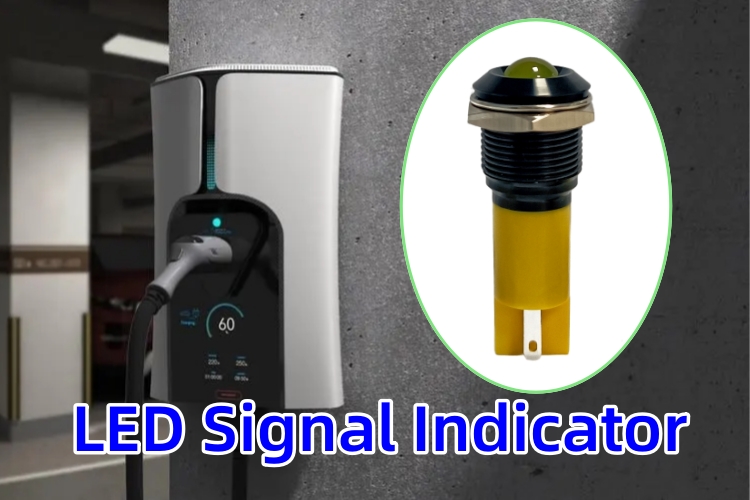

YESWITCH 16mm IP67 Yellow LED Signal Indicator For Signaling

YESWITCH 16mm Yellow LED signal light range has an IP67 sealing rating, which means the LED Indicator is suitable for use in harsh environments. Compact and sturdy, the LED indicator light features convenient solder lug terminals for easy installation. Yellow signal indicator lights have a 50,000 hour life expectancy.All waterproof Indicator light is highly reliable and of excellent quality.With excellent performance, long life and low power consumption, IP67 indicator light is your best choice.

SPECIFICATIONS

Mounting hole：Ф16mm

Lamp color:R/G/Y/O/B/W

Lamp voltage:1.8V,3V,6V,12V,24V,110V,220V

Lamp type:LED

Rated Current:2mA~20mA

Torque:About1.2Nm

Panel Thickness:1~8mm

Operating Temperature:-20~+85 Degree

Solder Heat Resistance:320 Degree(or 30W soldering iron) no more than 2 seconds)

Crust material:Nickel-plated brass/Black-plated brass/stainless steel

Lamp cover material:Epoxy（Anti-UV can be made to order）

Base material:PA66

IP degree:IP67

ILLUMINATION BASE RATING:

Red,Yellow and Orange:20mA 1.8V

Blue,Green and White:20mA 2.8V
