S2015 19mm IPX5 KeyLock Switch

2 year ago

28 0 

7 year

Product details

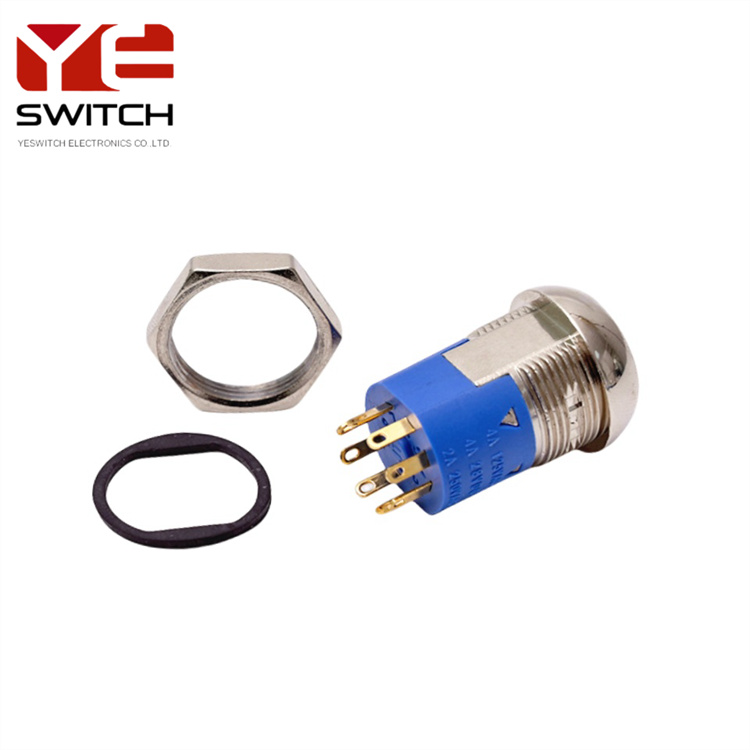

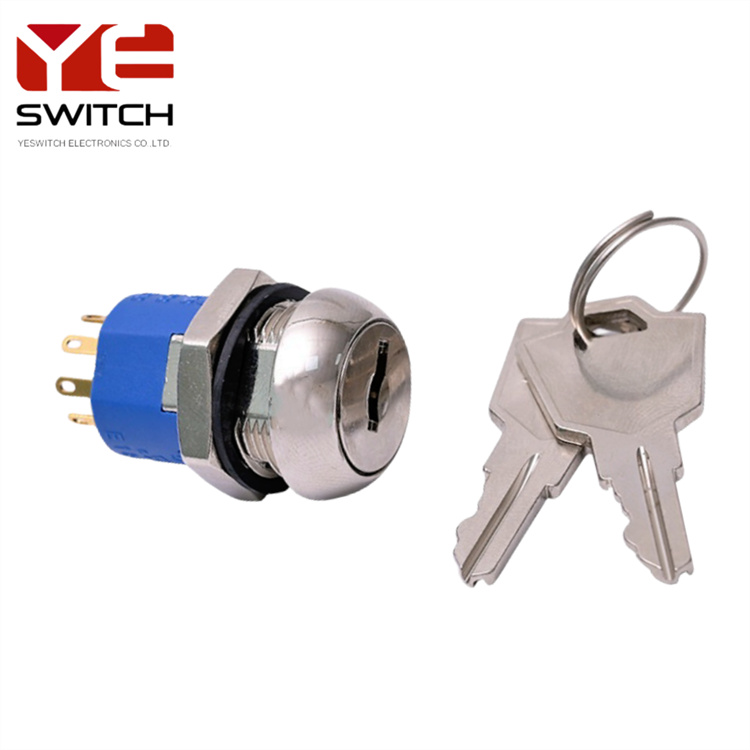

YESWITCH 19mm IPX5 S2015 Anti-Vandal UL Certified Key Lock Key Switch

YESWITCH S2015 19mm high-security key switch lock offer a wide range of electrical functions with the physical security. The power switch lock is made of zinc alloy,brass and other metal materials.The lock switch with IPX5 rating and UL certification.s2015 19mm key switches are ideally suited for applications requiring controlled access to electrically activated systems, including alarms, ATMs, time delay safes, encryption devices, heavy power equipment, control panels, and electrically accessed doors and gates. Power lock key switch use a four disc tumbler mechanism to maximize keyed different and master keying capabilities. YESWITCH Design and engineering resources are available to assist customers with special functional requirements.

DESCRIPTION

Zinc alloy die cast housing and cylinder.

Bright nickel plated standard.

4 disc tumbler mechanism.

Brass keys, nickel plated.

Various key withdrawals available.

Golden plated contacts and terminals.

Hex nut or speed clip mounted.

All keyed alike or 20 combinations standard.

SPECIFICATION

Contact Rating: 4A 125VAC, 2A 250VAC,4A 28VDC

Contact Resistance: 50Milli-Ohms Max.

Insulation Resistance: 109 Ohm Min.

Dielectric Strength: 1000 VAC -1 Minute
Protection Degree:IPX5
