Product details

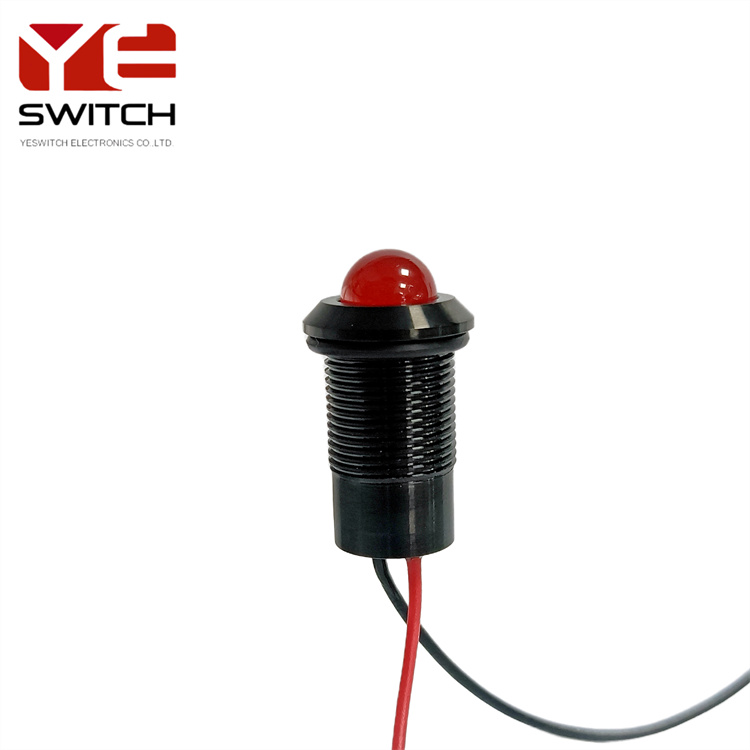

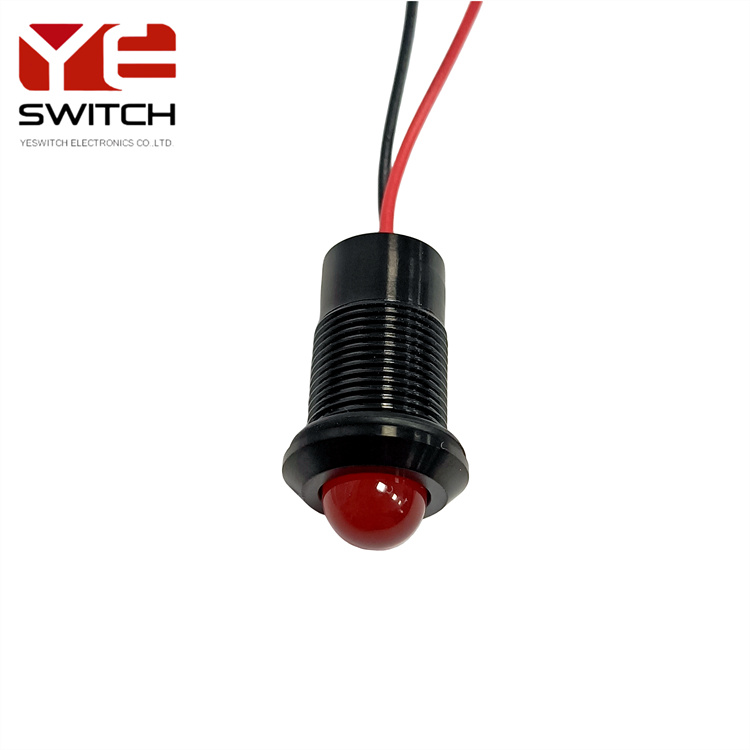

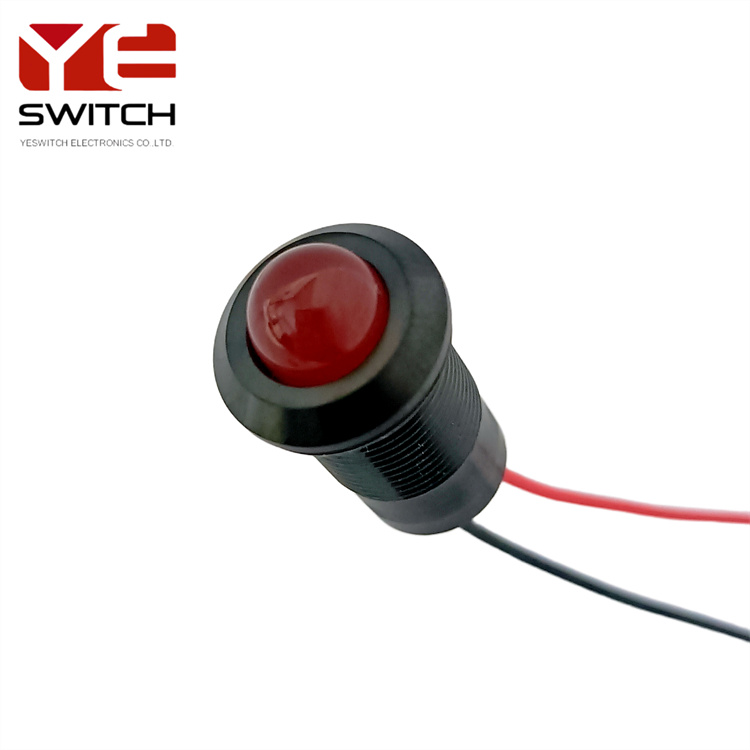

YESWITCH 11mm IP68 Metal Signal Indicator With Wires For Machinery

The Metal PBM-11I Series LED indicator light supports IP68 waterproof grade,with hole size of 11mm.More suitable for use in harsh environment.

And waterproof indicator light can be ordered in a variety of sizes, voltages, and connection types. The LED Indicators are ideal for instrument panels and for use on machinery. This no shield model has a spherical LED that is easily viewable from the front and the side. The 11mm signal indicator use the latest LED technology making them energy-efficient, durable, and long-lasting.The lamp color include red,green,blue,yellow,white and other color can be customized.The anti-vandal and waterproof lamp life reach 50000h and led current reach 20mA max.

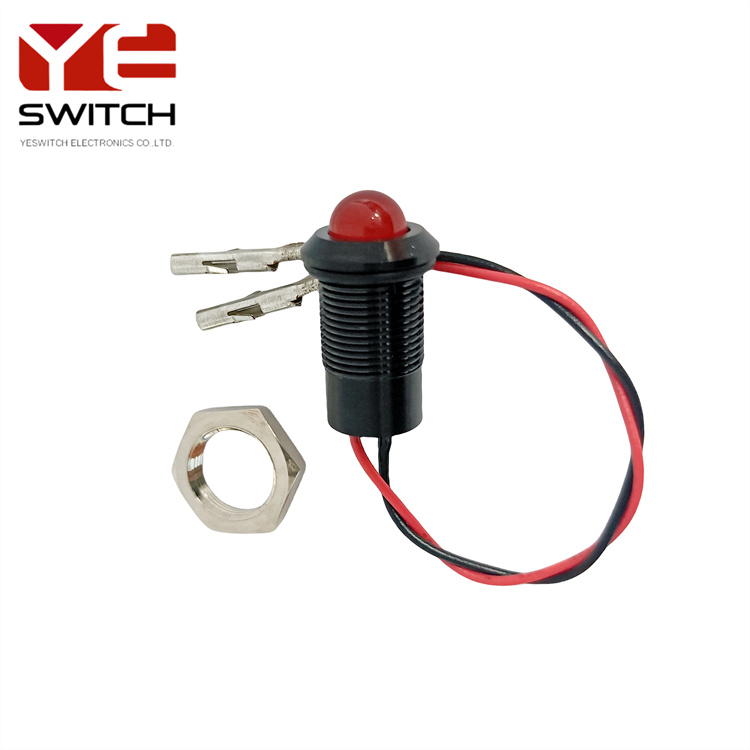

The LED's come with 100mm wires, Which makes installation easy. The LED signal light can also be ordered without the wires for applications where your own wire will be added.

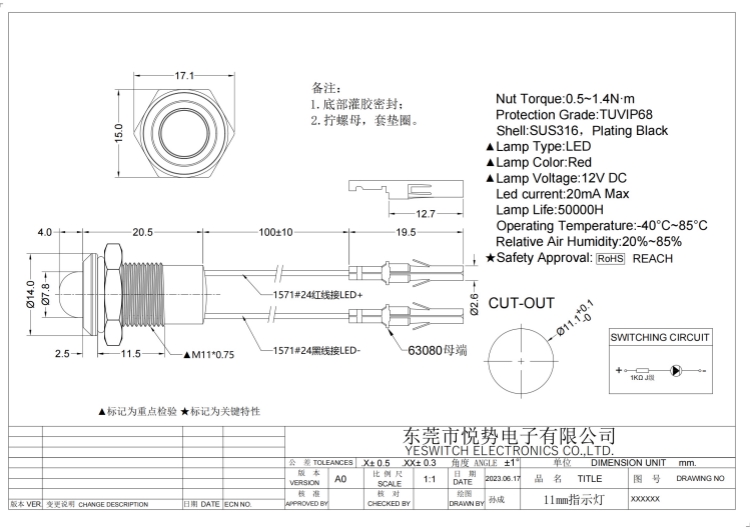

SPECIFICATION

Mounting hole:Φ11mm

Lamp color:R/G/Y/O/B/W

Lamp voltage:1.8V,3V,6V,12V,24V,110V,220V

Lamp type:LED

Lamp Life:50000H

Led current:20mA Max

Nut Torque:0.5~1.4N-m

Panel Thickness:1~10mm

Operating Temperature:-40~85 Degrees

Relative Air Humidity:20%~85%

Shell:SUS316, Plating Black
Protection Grade:TUV IP68
