YESWITCH HT802 (ON)-OFF Toggle Switch For Telescopic Boom Lift

YESWITCH HT802 series high current toggle switches (ON)-OFF have excellent sealing and waterproof performance, with a waterproof rating of IP68. Whether in extremely harsh conditions, such as military aerospace, heavy machinery and agricultural machinery and equipment, it can maintain a stable working state.

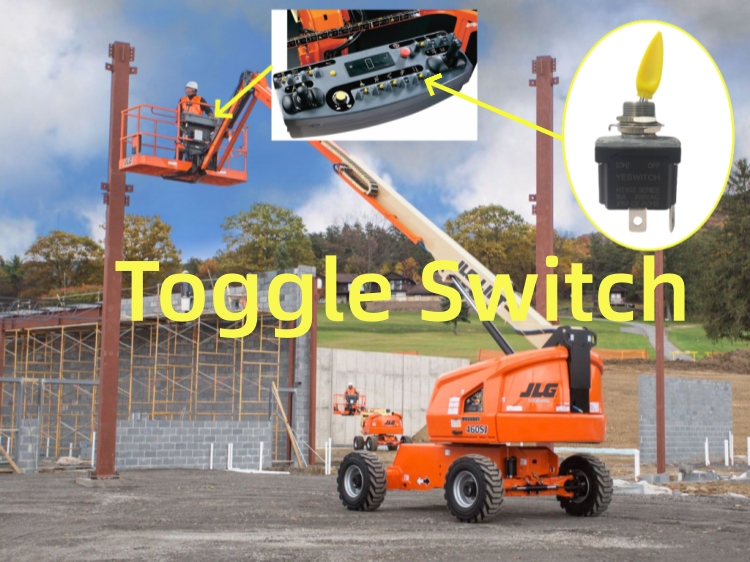

In fact, no matter how harsh the working environment is, we can see the figure of the high-current toggle switch. For example, telescopic boom lift, electric scissors lift, hybrid lift, etc., these scenarios have high requirements for the sealing and waterproof performance of the equipment. The high-current toggle switch can work perfectly in these environments to ensure the stability and reliability of the equipment.

In addition, the high current toggle switch has an operating temperature range of -40~+85°C, which means that it is able to work well in a variety of extreme temperatures. Moreover, its life can reach 100,000 cycles, with high durability. In short, whether it is in industry, agriculture, aerospace and other fields, high-current toggle switches are your ideal choice.

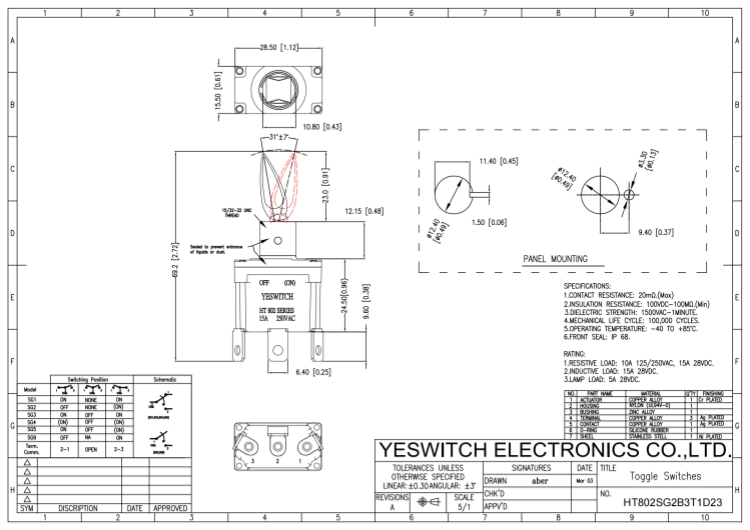

SPECIFICATIONS：

CONTACT RESISTANCE: 20m0(Max)

INSULATION RESISTANCE: 100VDC-100MQ.(Min)

DIELECTRIC STRENGTH: 1500VAC-1MINUTE

MECHANICAL LIFE CYCLE: 100,000 CYCLES

OPERATING TEMPERATURE: -40 ~+ 85 Degree

FRONT SEAL: IP 68.

RATING:

RESISTIVE LOAD: 15A 125/250VAC,15A 28VDC.

INDUCTIVE LOAD:15A 28VDC.

MATERIAL:

ACTUATOR: COPPER ALLOY

HOUSING:NYLON (UL94V-0)

BUSHING:ZINC ALLOY

TERMINAL:COPPER ALLOY

CONTACT:COPPER ALLOY

O-RING:SILICONE RUBBER

SHEEL:STAINLESS STELL

FEATURE:

Copper Alloy contact for increased application flexibility

High strength for durability in tough conditions

Temperature resistant materials to enhance performance in challenging environments

APPLICATION：

Industrial machinery and equipment, military and commercial aviation, construction equipment, test instruments, agricultural machinery, process control, medical instrumentation
