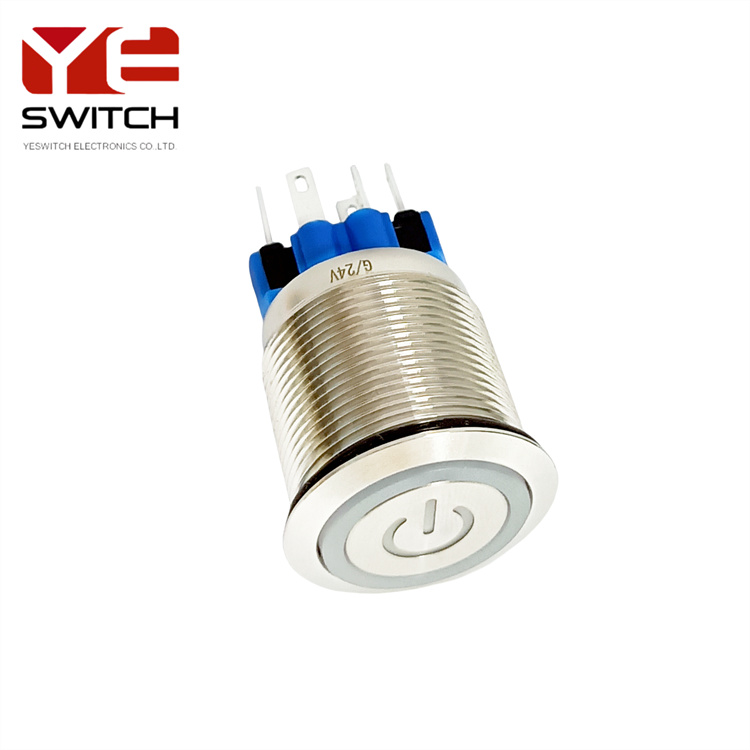

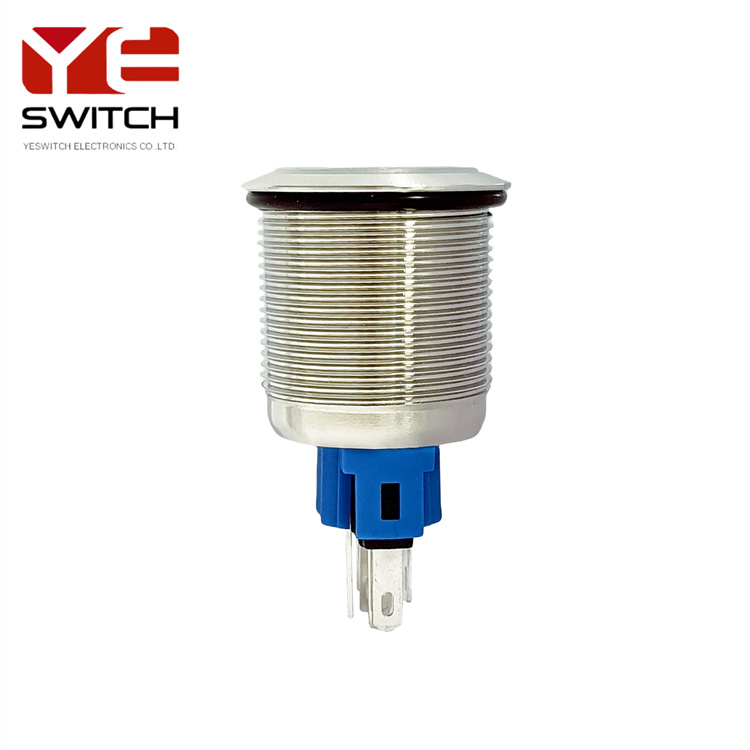

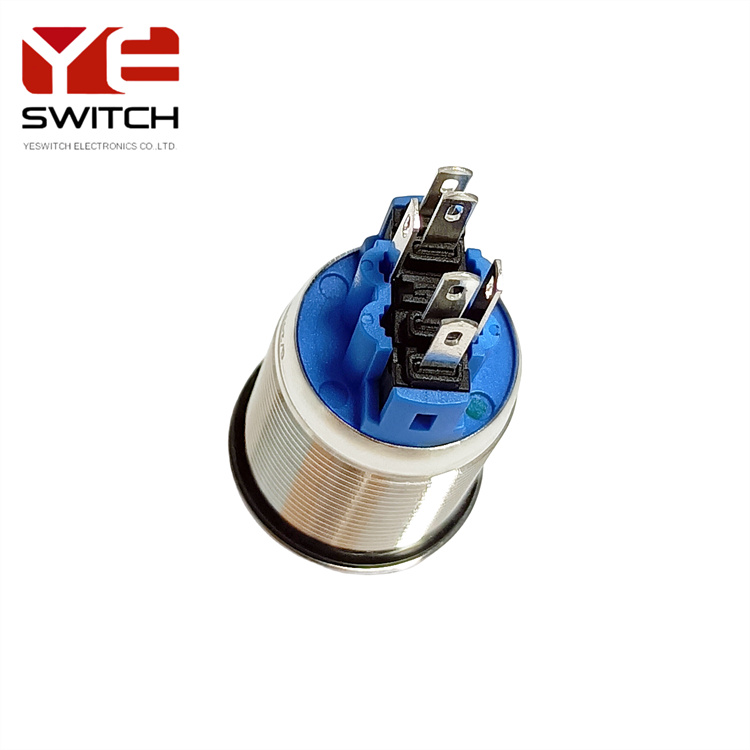

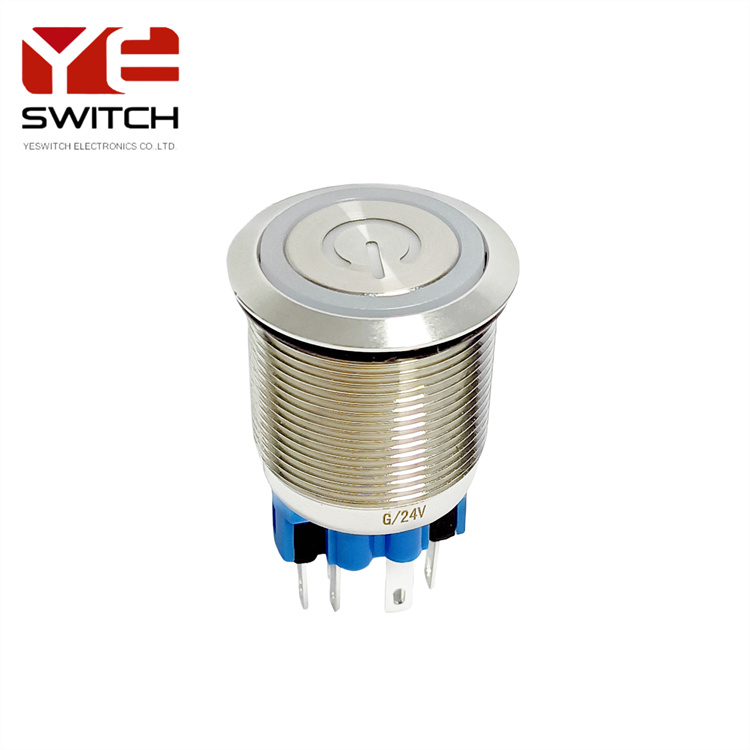

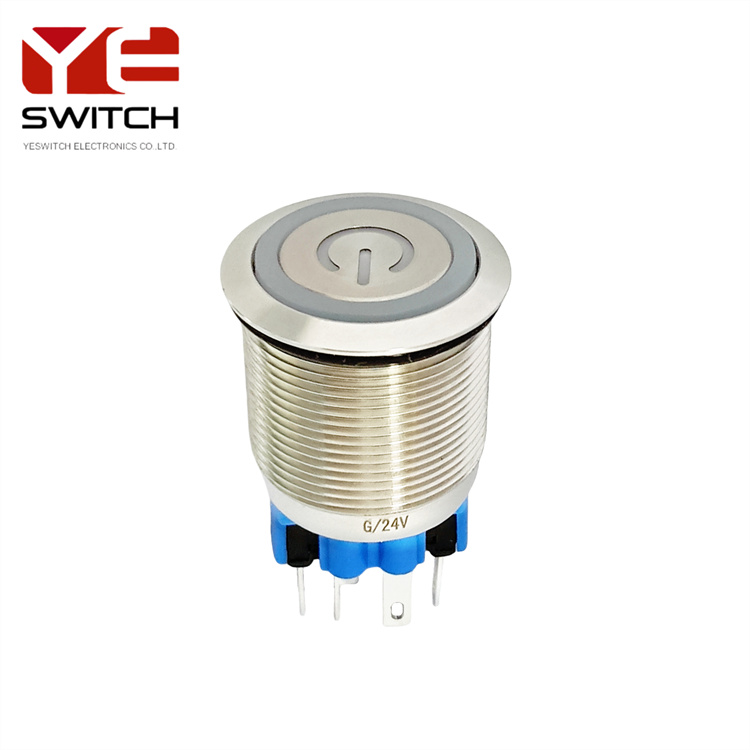

YESWITCH 22mm Illuminated Sealed Anti-Vandal Metal Push Button Switch

The YESWICH 22mm metal push button switches sealed tamper-resistant offer long life expectancy and are waterproof. The 22mm metal push button switch LED lighting colors include red, yellow, orange, blue, green, white, bi-color and RGB LED options for nearly unlimited lighting color choices. The 22mm metal switch offers ring or power lighting, with graphic options including etched or illuminated power symbols.Electronic mechanical with either momentary or maintained action.And the 22mm waterproof metal push button switch come in stainless steel or aluminum housings.

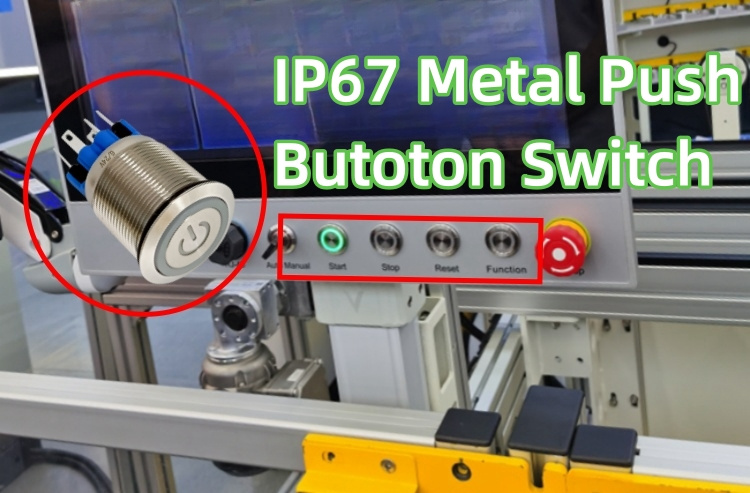

Applications for this tamper-resistant 22mm stainless steel switch include:Audio/Video Equipment,safety devices,industrial control,newsstand,Home appliances and medical equipment.

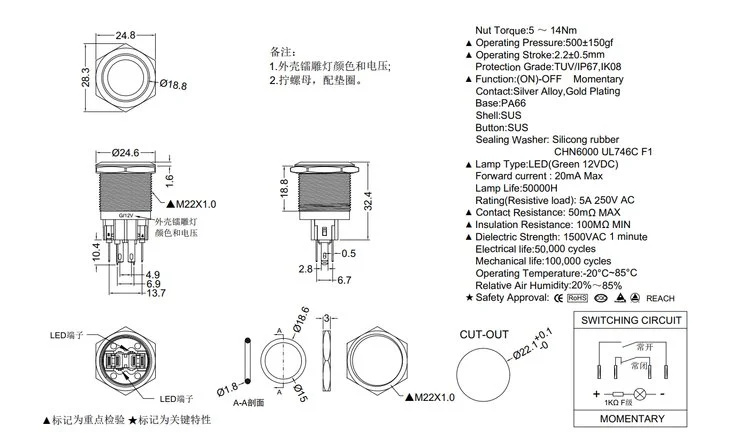

SPECIFICATION

Nut Torque:5~ 14Nm

Operating Pressure:500±150gf

Operating Stroke:2.2±0.5mm

Protection Grade:TUV/P67,IK08

Function:(ON)-OFF Momentary/Latching

Contact:Silver Alloy,Gold Plating

Base:PA66

Shell:SUS

Button:SUS

Sealing Washer: Silicone rubber CHN6000 UL746C F1

Lamp Type:LED(Green 12VDC)

Forward current : 20mA Max

Lamp Life:50000H

Rating(Resistive load): 5A 250V AC

Contact Resistance: 5Omn MAX

Insulation Resistance:100MΩ MIN

Dielectric Strength:1500VAc 1 minute

Electrical life:50.000 cycles

Mechanical life:100,000 cycles

Operating Temperature:-20-85 Degree

Relative Air Humidity:20%-85%
