YESWITCH 22mm IP67 sealed LED Metal Push Button Sw

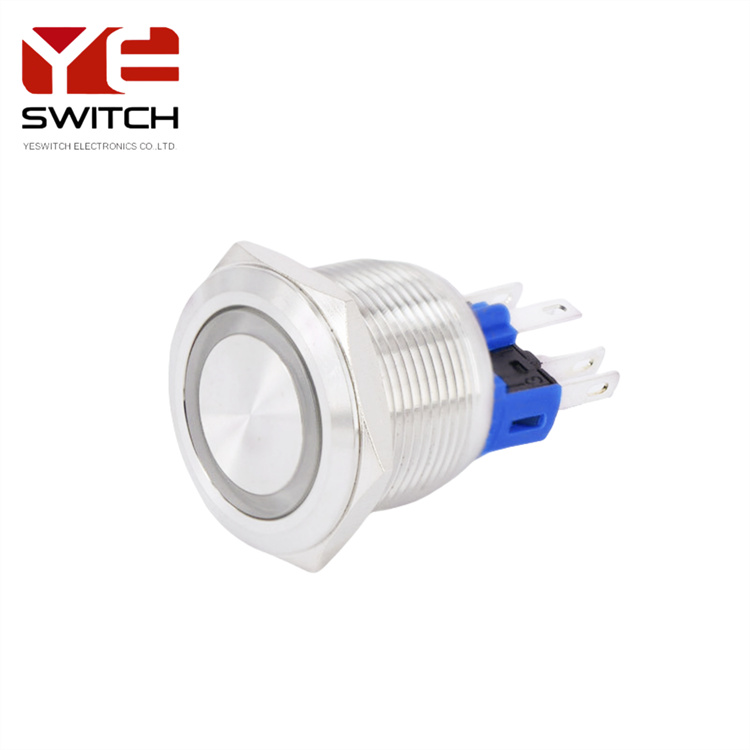

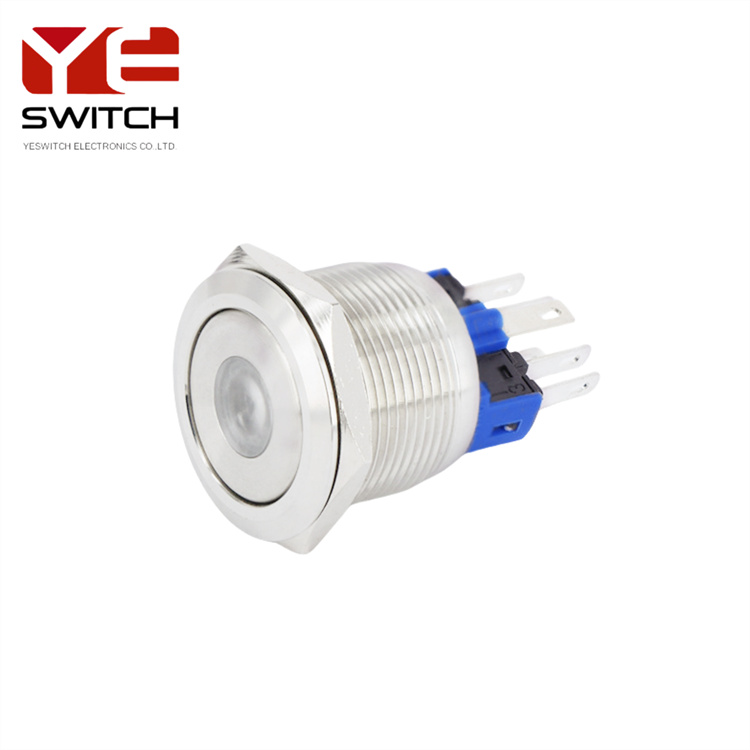

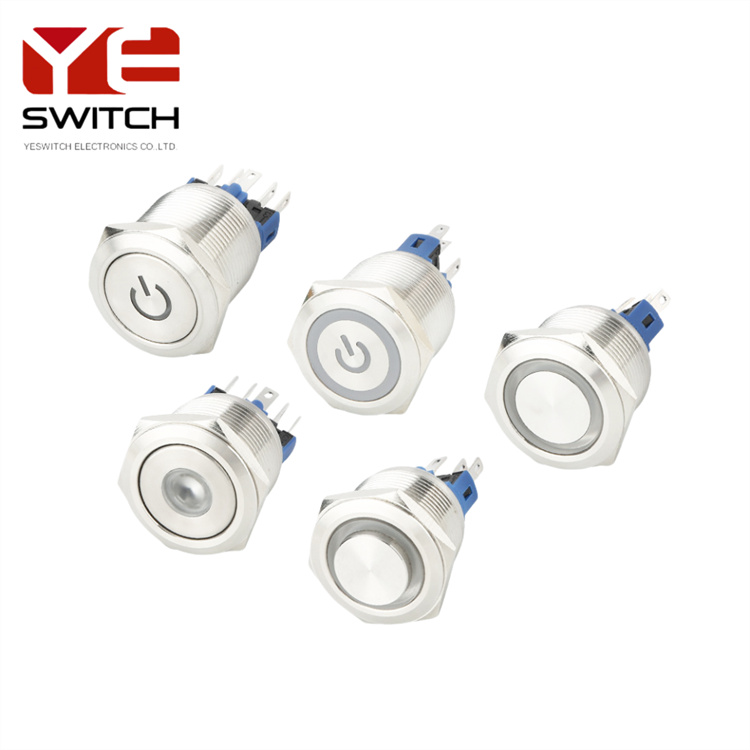

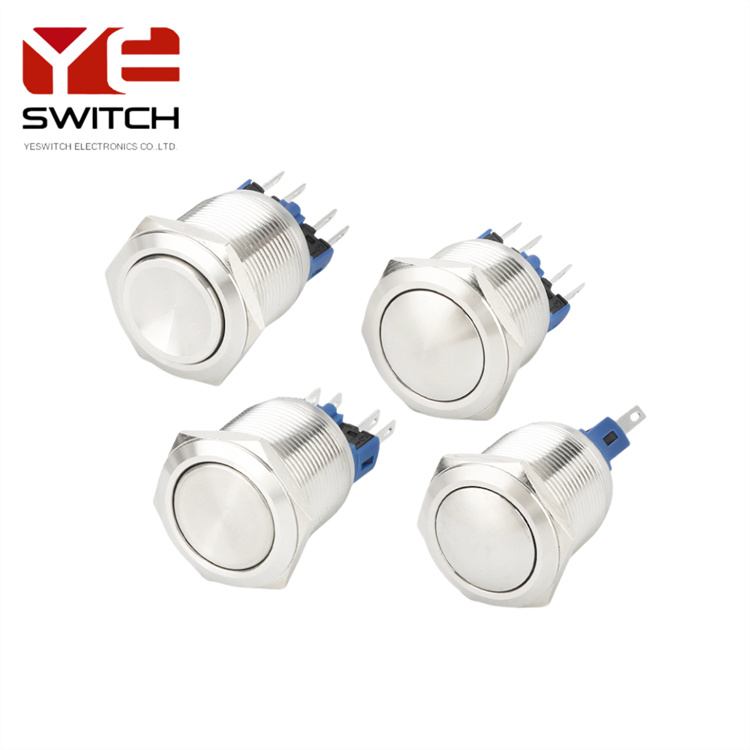

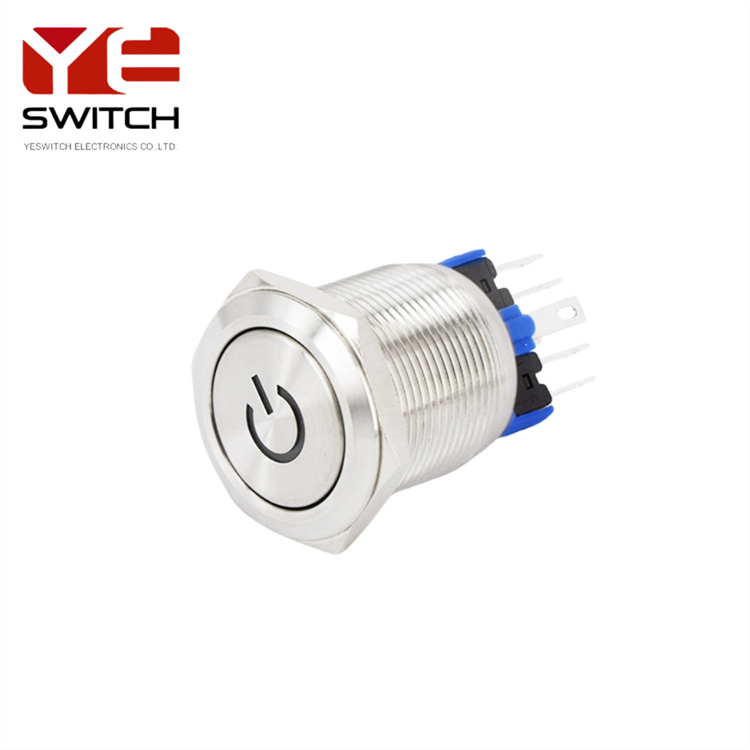

12 month agoThe metal push button switch is an anti-vandal sealed switch that offers the industry standard ring or power illuminated version in 22mm diameter.The 22mm metal push button switch use a scratch resistant actuator and housings are made of robust stainless steel particularly suitable for use in equipment subjected to harsh conditions or applications that require protection from vandalism.The 22mm metal push button switches meet the seal protection and impact resistance rating of IP67 and IK08 that design to withstand the possible extreme outdoor environmental and may subject to abuse.Also,the 22mm waterproof metal push button switch comes with a variety of LED color color as illuminated push button and various of indicators on the actuator that meet your application needs.

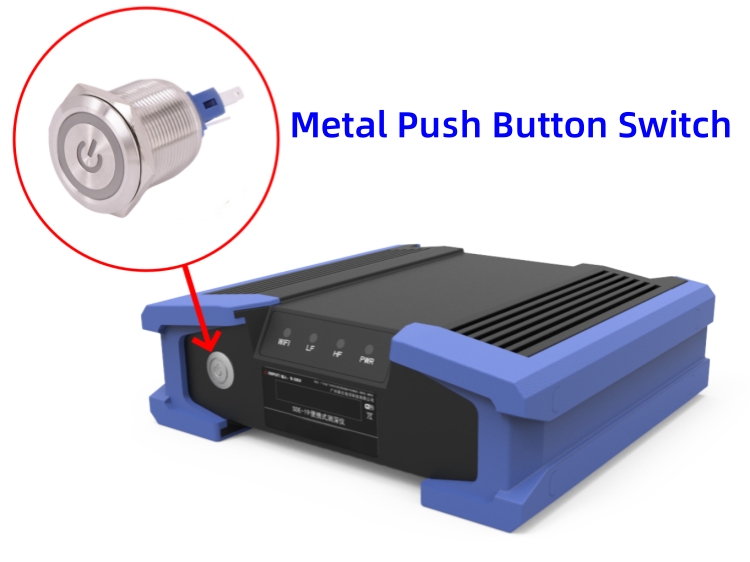

The 22mm metal switch widely use in control panels including car park and traffic light,industrial instruments,life escalator,communication equipment,alarm,safety and security systems.
- Nut Torque:5~ 14Nm
- Operating Pressure:500±150g
- Operating Stroke:2.2±0.5mm
- Protection Grade:TUV/P67,IK08
- Function:Momentary/Latching
- Contact:Silver Alloy,Gold Plating
- Base:PA66
- Shell:SUS
- Button:SUS
- Sealing Washer: Silicone rubber CHN6000 UL746C F1
- Lamp Type:LED(Green 12VDC)
- Forward current : 20mA Max
- Lamp Life:50000H
- Rating(Resistive load): 5A 250V AC
- Contact Resistance: 5Omn MAX
- Insulation Resistance:100MΩ MIN
- Dielectric Strength:1500VAc 1 minute
- Electrical life:50.000 cycles
- Mechanical life:100,000 cycles
- Operating Temperature:-20-85 Degree
- Relative Air Humidity:20%-85%
