2,No worry about the problem that the water meter shell will burst in ultra-low temperature environment ,because stainless steel housing has the merits of high compressive strength and high strength.
3,the product is applicable to the measurement of Household drinking water,oil industry,pharmacy industry,Chemical industry,metallurgy industry,papermaking industry,Water Treatment industry,etc.
Installation Instructions：
1. Flush the line thoroughly after all plumbing changes to prevent contaminates from entering the meter.
2. Install horizontally with the register facing up and inlet port facing the water supply line.
3. For outdoor installation, protect meter from direct exposure to the elements.
4. Protect meter from backflow of water opposite of indicted flow direction.
| Model No. | LXS-15-50 |
| Application | Civil |
| Medium Pressure | General Water Meter |
| Nominal Diameter | 15-50mm |
| Work Environment | Dry/Wet Water Meter |
| Material | Stainless steel |
| Standard | ISO4064,ISO9001 |
| Production Capacity | 10000 |
| H.S Code | 9028201000 |

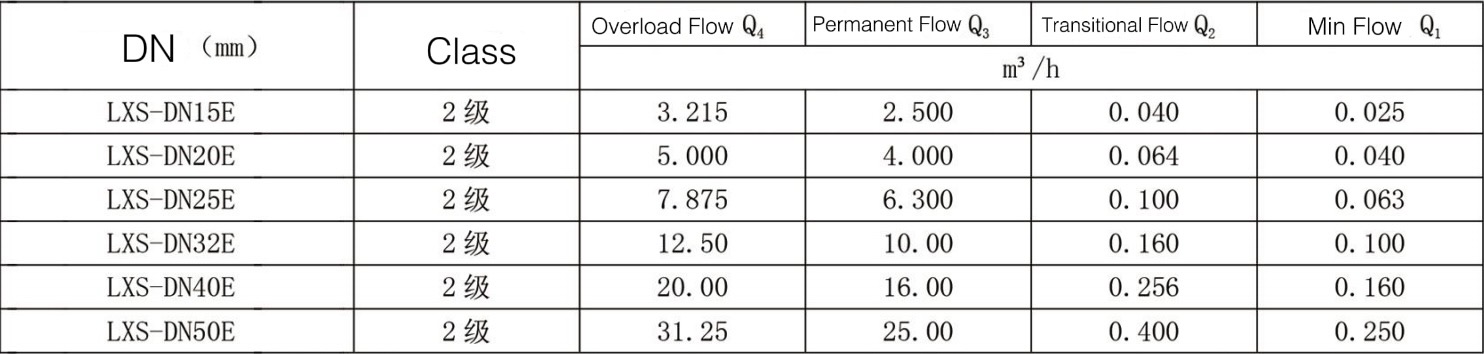

MAIN TECHNICAL DATA
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
