2. Easy to manufacture and maintain, low cost.
3. Durable, low water quality requirements.
4. The error is easy to adjust.
5. The flow ratio is relatively large.
6. The requirements for straight pipe section are low.
Service conditions:
The water pressure shall not be greater than 1.0MPa
The cold water meter shall not exceed 30 degrees
Hot water not exceeding 90C meter
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
| Model No. | LXS-15-40 |
| Application | Civil |
| Medium Pressure | General Water Meter |
| Nominal Diameter | 15-40mm |
| Work Environment | Dry/Wet Water Meter |
| Material | Stainless steel |
| Standard | ISO4064,ISO9001 |
| Production Capacity | 10000 |
| H.S Code | 9028201000 |

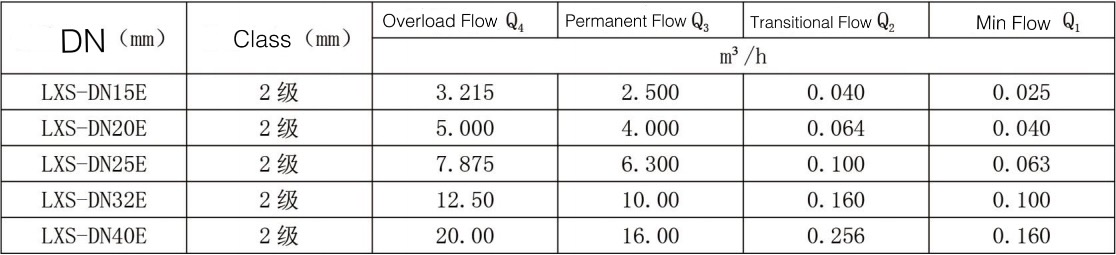

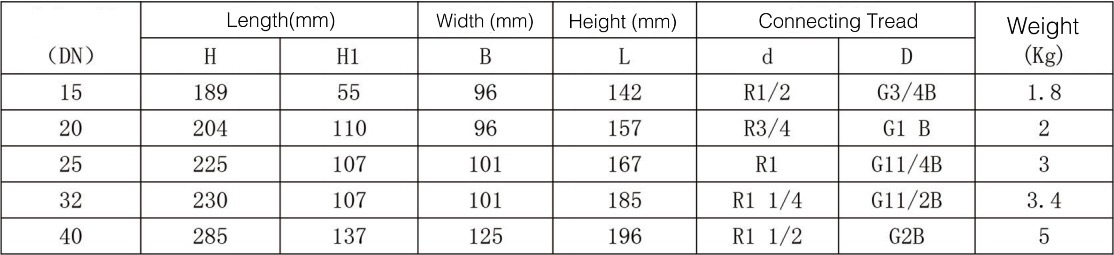

MAIN TECHNICAL DATA
