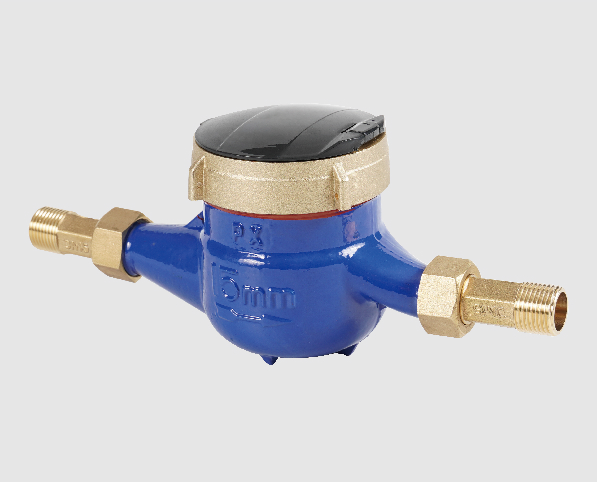

linshui product video6
12 month ago
·Dry type / Wet type( for selecting )
·Cold water / hot water (for selecting)
·Available to install in vertical direction
·Measuring accuracy is up to ISO4064 CLASS B
·High quality materials ,Steady & reliable characteristic
*The water meter must be horizontally installed, with the reading surface upwards and the direction of the arrow being the same as the direction of the water flow.
*The pipeline must be flushed before installing the water meter.
*The water meter must be installed in a dry and easy to maintain environment, install in a dedicated water meter box is recommended.
*Valves must be installed at the inlet and outlet of the water meter.
WORKING CONDITION：
Water temperature:≤40ºC for cold water meter
Water temperature:≤90ºC for hot water meter
Working pressure:≤1.6Mpa
| Model No. | LXS-15-40 |
| Application | Civil |
| Medium Pressure | General Water Meter |
| Nominal Diameter | 15-40mm |
| Work Environment | Dry Water Meter |
| Material | Stainless steel |
| Standard | ISO4064,ISO9001 |
| Production Capacity | 10000 |
| H.S Code | 9028201000 |

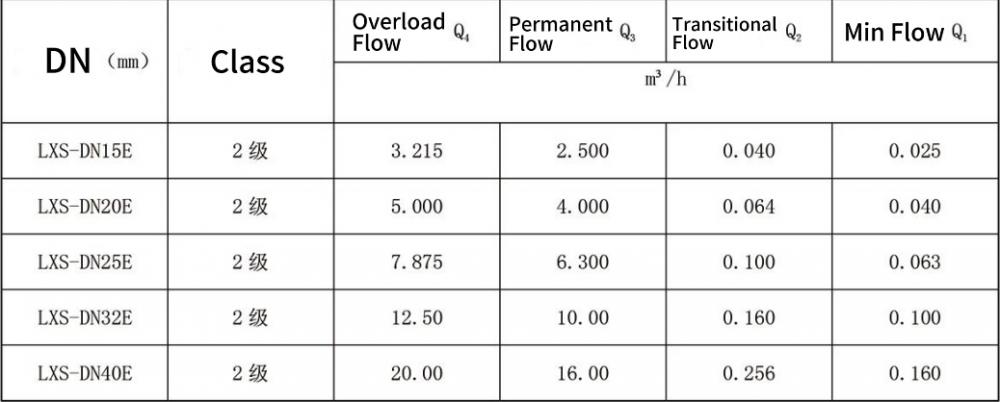

MAIN TECHNICAL DATA
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
