Product details

Product features:

1. Magnetic drive with super dry copper can register,
2. Lower Transmission
3. Internal -exchangeable mechianism, easy for removing the Mechanism from the body for easy inspection, no need to dismantle the meter fro pipe.
4. Hermetically sealed register(IP 68); Register may be rotated through 360
5. Hydrodynamically balanced system
6. High overload capability
7. Pattern approved removable measuring element
8. Powder coating affords max. Corrosion protection
9. Not affected by external magnetic fields

When it comes to managing water usage, having an accurate and reliable water meter is essential. One popular choice among many consumers is the Woltman water meter. This type of water meter is known for its durability and precision in measuring water flow. However, like any product, there are certain precautions and guidelines that users should be aware of to ensure optimal performance and longevity.

Model No.	WS-40-200
Application	Civil
Medium Pressure	General Water Meter
Nominal Diameter	DN 40-200mm
Work Environment	Dry/Wet Water Meter
Material	Stainless steel
Standard	ISO4064,ISO9001
Production Capacity	10000
H.S Code	9028201000

3509 3

15263b2e3fb80a46cd4506e2b2ef43c Png

3509 2 3509

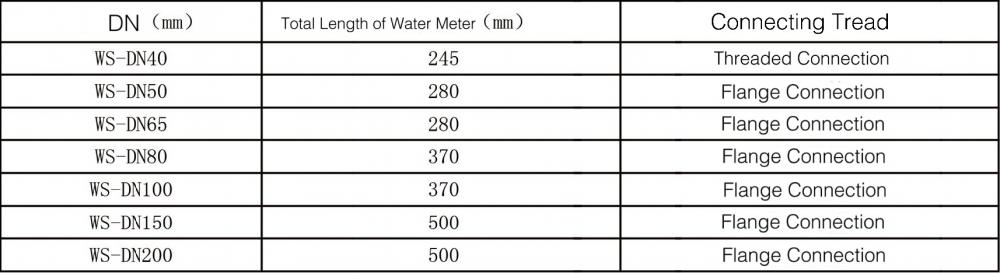

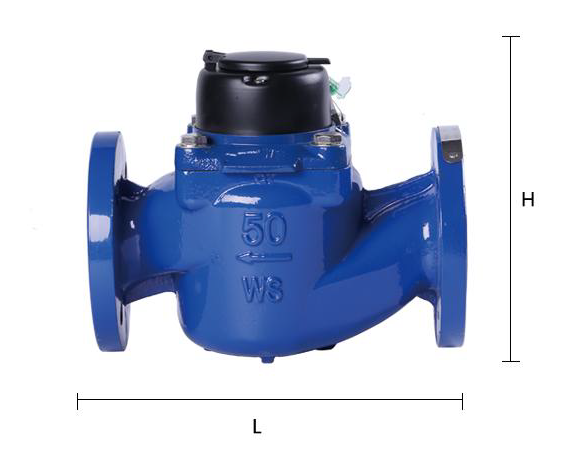

3509 Outline

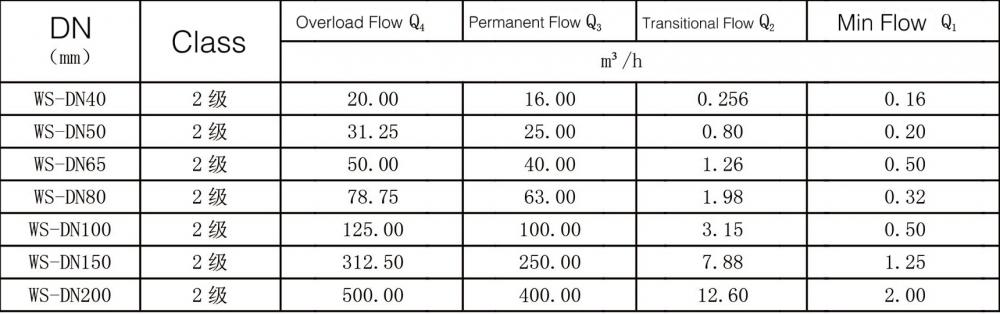

MAIN TECHNICAL DATA

3509 Flow

INDICATING ERROR

At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
