YESWITCH 12mm Automotive Illuminated Metal Lamp Pu

11 month ago

30 0 

7 year

Product details

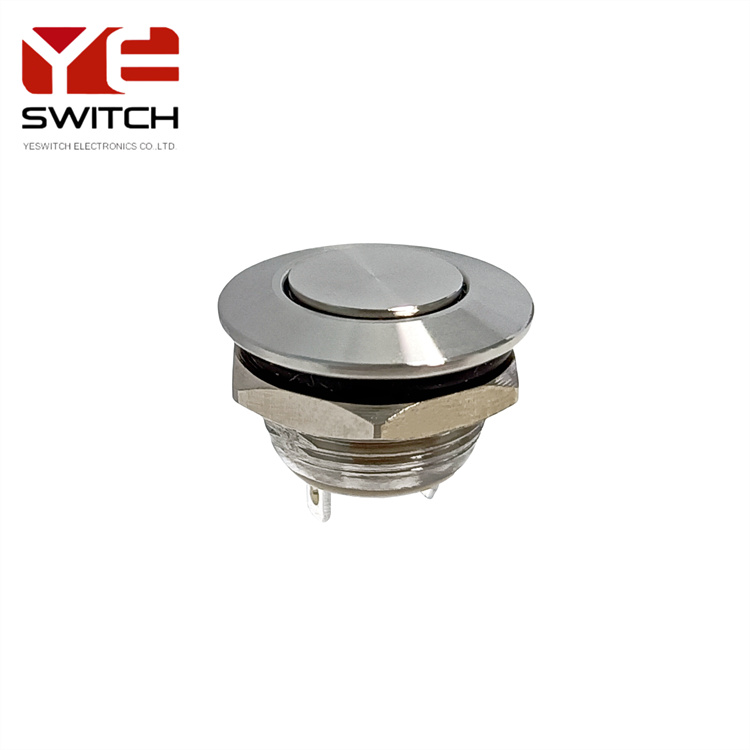

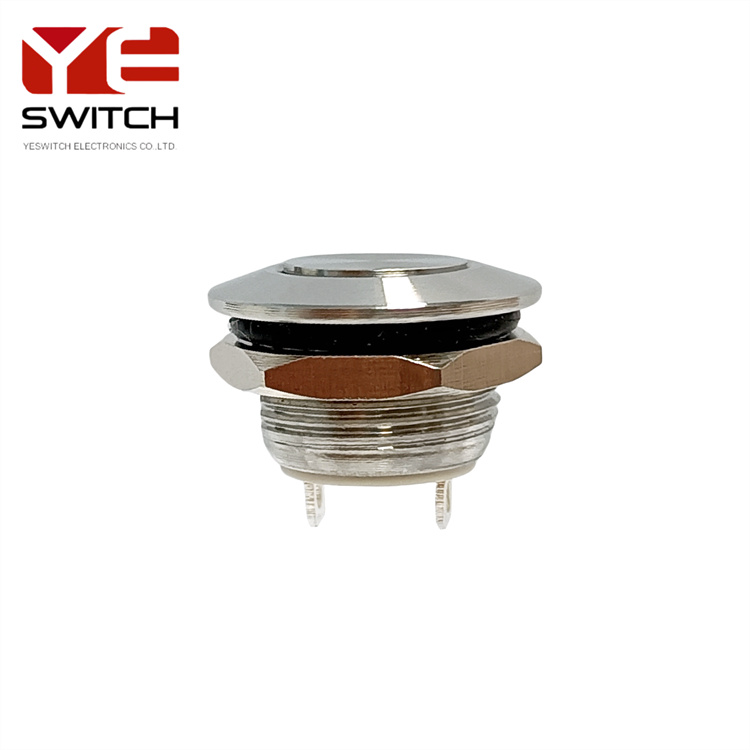

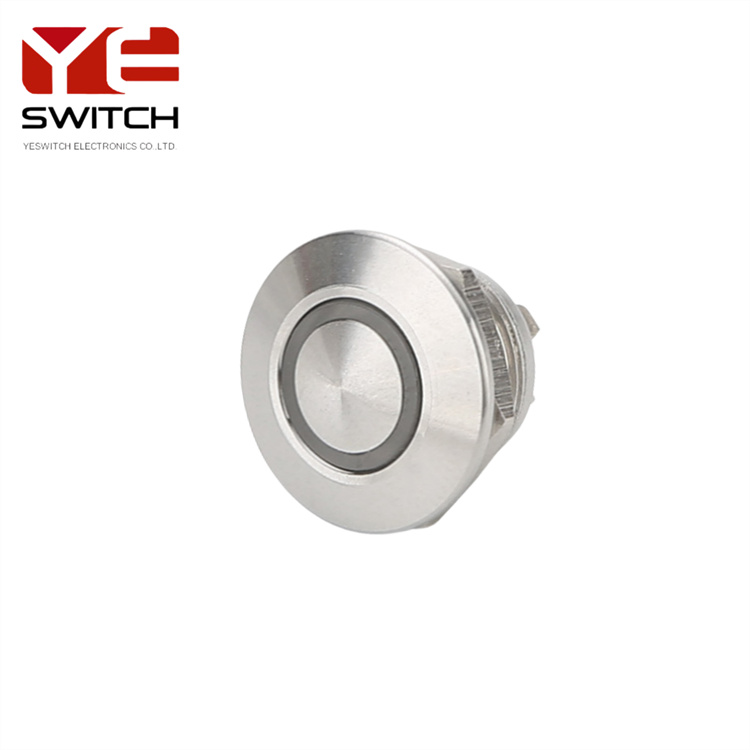

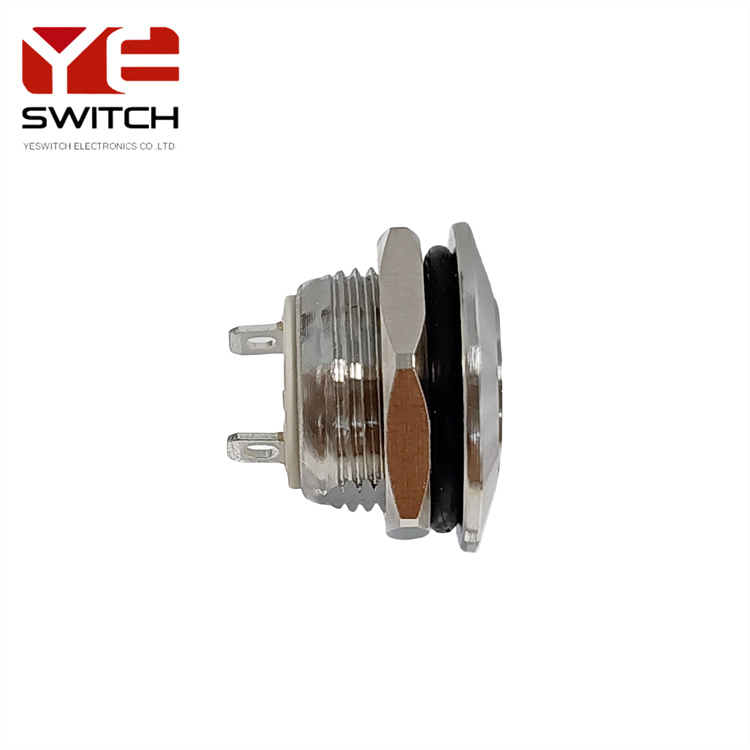

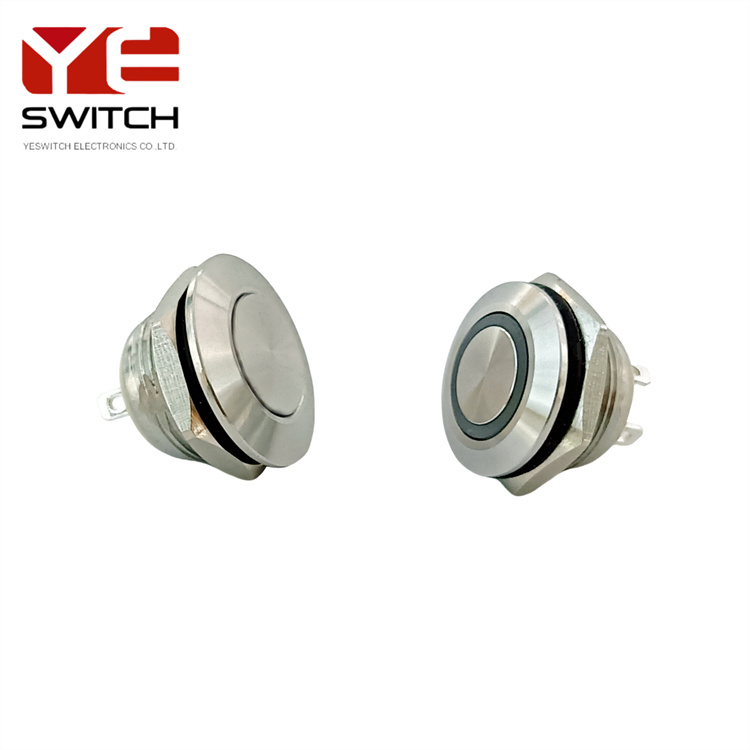

YESWITCH 12mm Automotive Illuminated Metal Lamp Push Button Switch

The 12mm metal push button switch is made of high-quality stainless steel,nickel plated brass,aluminum alloy black and other materials, with excellent corrosion resistance and compression properties. The waterproof push button switch can withstand greater pressure, has higher structural strength, fall and collision resistance. And the 12mm metal switches also use a one-piece metal housing, which is not only beautiful and generous, but also very durable and can effectively protect the internal components from damage.

This waterproof metal switch has multi-color with illuminated and no LED two options, with light color red,orange,yellow,green, blue,white, you can choose according to your needs and preferences. The design with lights makes it easier for you to use at night, while the design without lights is more simple and generous. No matter which option, push button switch types have a very high use value.

12mm push button switch is suitable for a variety of scenarios, such as CNC lathes, medical equipment, automobiles, battery car refitting, computer host keys, home, buttons, instrument switches, etc. The automotive switches are waterproof with IP67 IK08 rating and can be used normally in a variety of harsh environments.

In addition, this LED light switches also have a reset function, so that you can use more convenient and fast. Overall, this automotive push button switches are a very practical switch with excellent performance and use value.

SPECIIFICATION

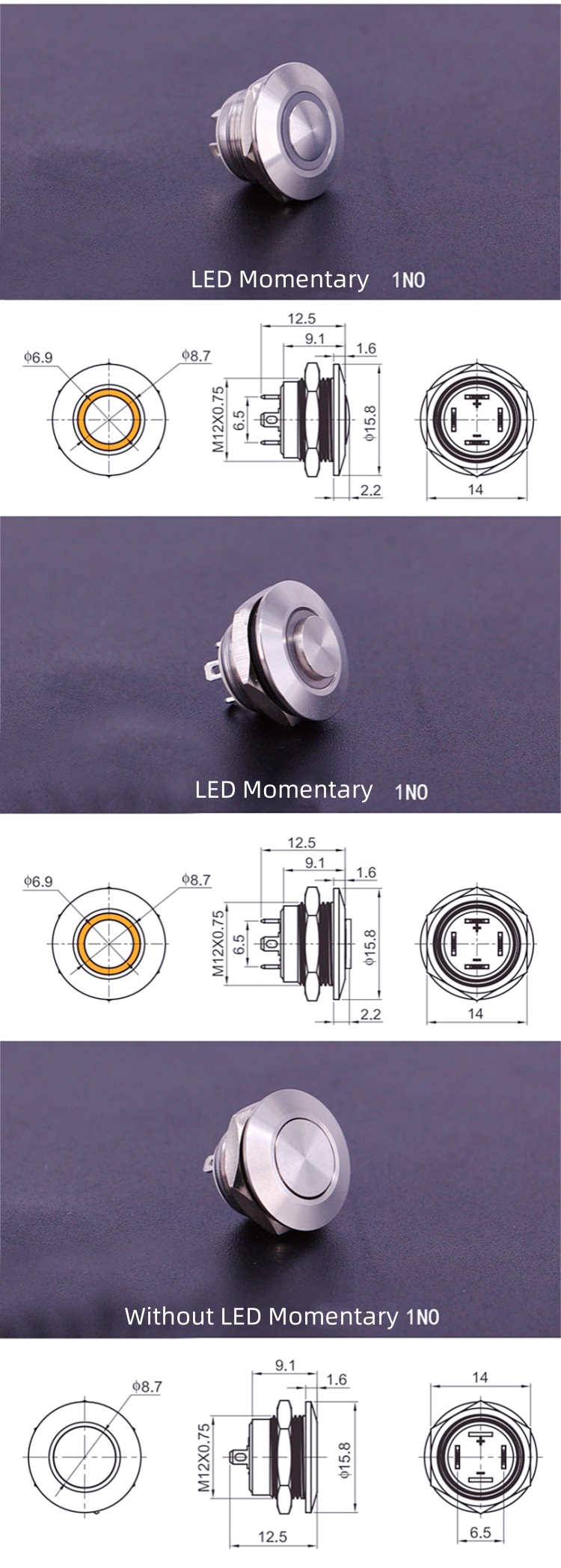

Mounting Hole Size:12mm
Switch Combination:1NO
Operation Type:Momentary
Electrical Life:0.05A 250VAC
Nut Torque:5~14Nm
Operation Pressure:About 4~8N
Contact Resistance:≤50MΩ
Dielectric Resistance:≥1000MΩ
Dielectric Intensity:1000 VAC min
Mechanical Life:100,000 cycles
Enclosure Material:Stainless steel/Nickel plated brass/Aluminum Alloy Black
Contact:Silver Alloy
Head Shape:Flat/High flush
Lamp Type:Ring
LED Color:Red/Orange/Blue/Green/Yellow/White
Ambient Temperature:-25~85℃
Protection level:IP67,IK08
