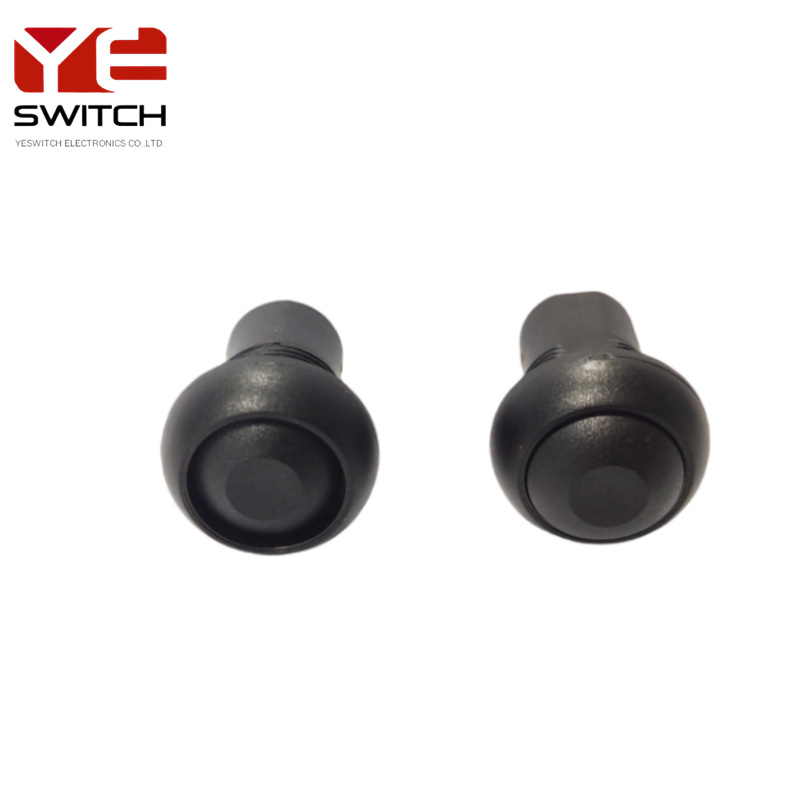

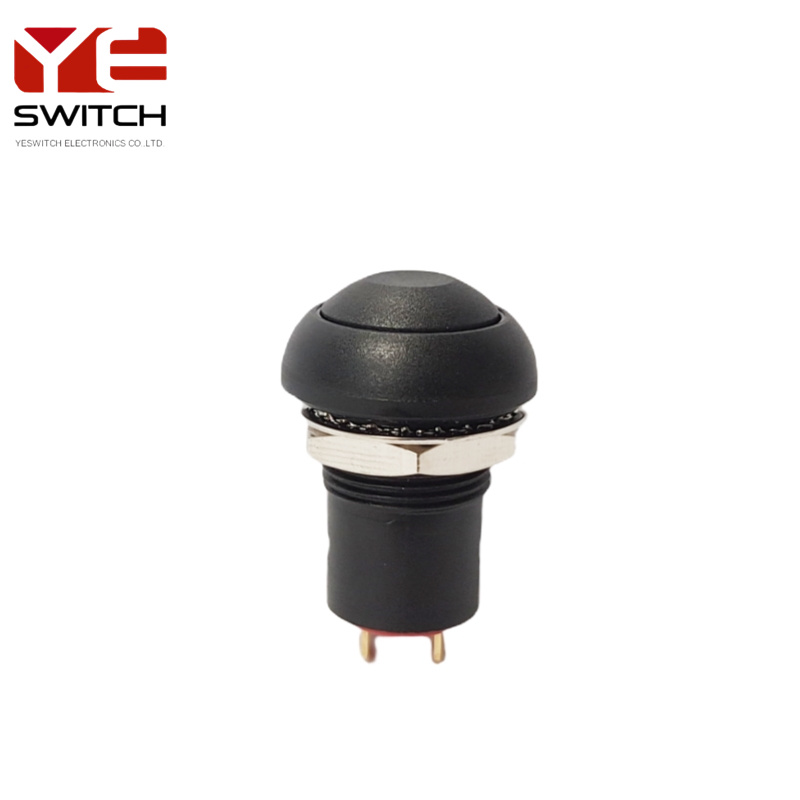

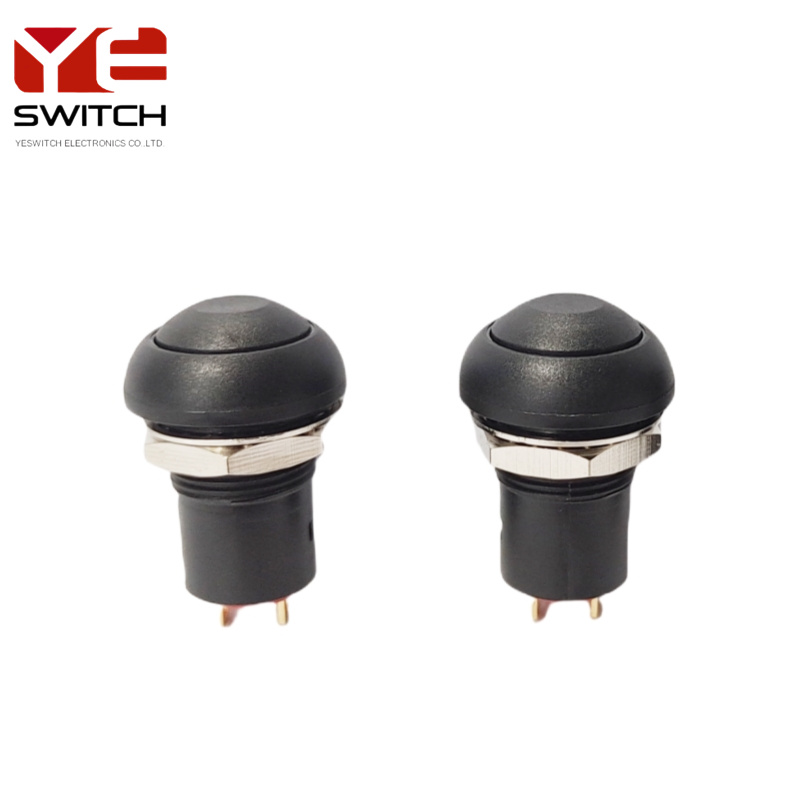

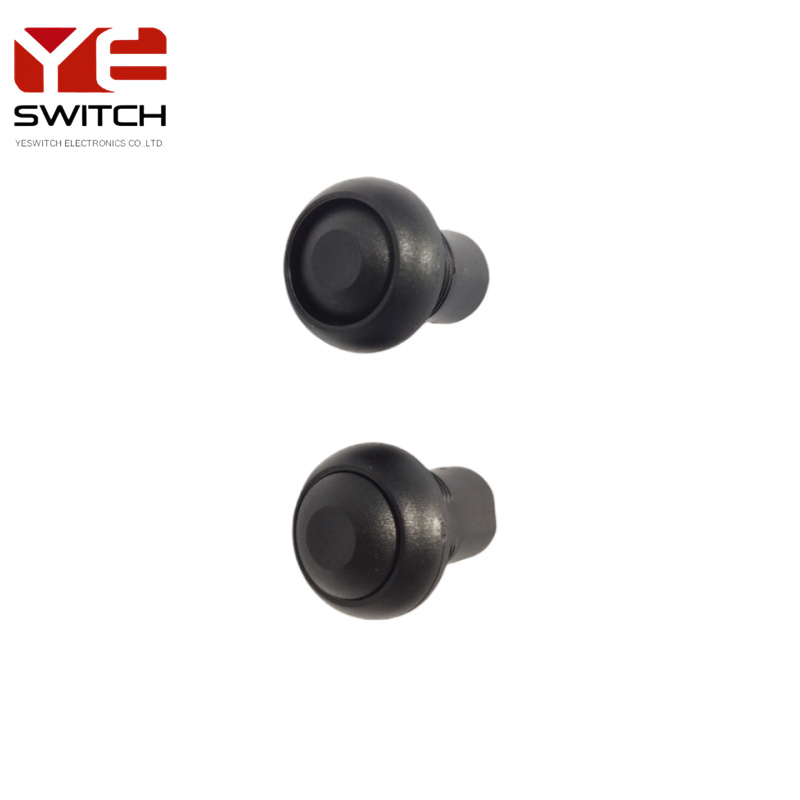

YESWITCH 12mm IP67 Automotive Self-lock Push Button Switch

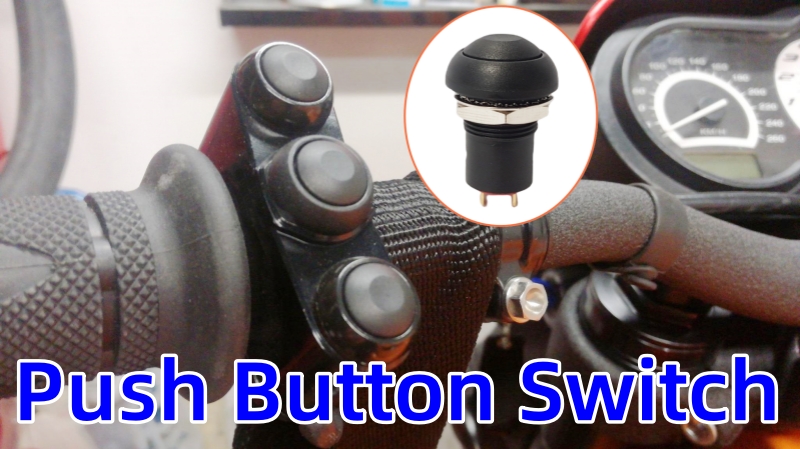

The 12mm push button switch is suitable for a variety of harsh environments,such as motorcycles,buses,agricultural mechanical vehicles,ships,aviation aircraft,household appliances and other fields.The automotive switches not only have a self-lock function, but also has an IP67 level of sealed dust-proof and waterproof protection.The push button switches can effectively prevent water droplets from entering the inside of the switch, ensure the normal use of the switch, and truly meet the needs of users in harsh environments.

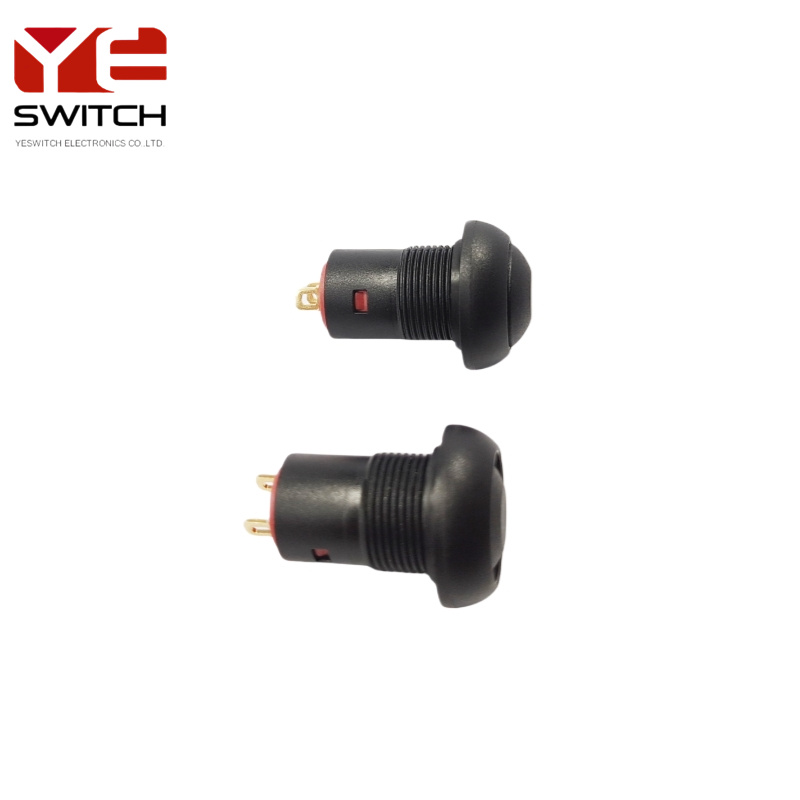

At the same time,the 12mm waterproof push button switch is also available in a variety of colors,including white,black,red,orange,yellow,green,blue.Different colors can add personality to your device.In addition,the OFF-ON automotive push button switch also offers two versions with and without lights,and the luminous color of the version with lights is also white,red,yellow,green and blue.

Most importantly,the IP67 push button switch types electrical life reach 200,000 cycles and is very durable.And led light switches use high-quality materials and exquisite workmanship,and has undergone rigorous testing and verification to ensure the reliability and stability of the product.

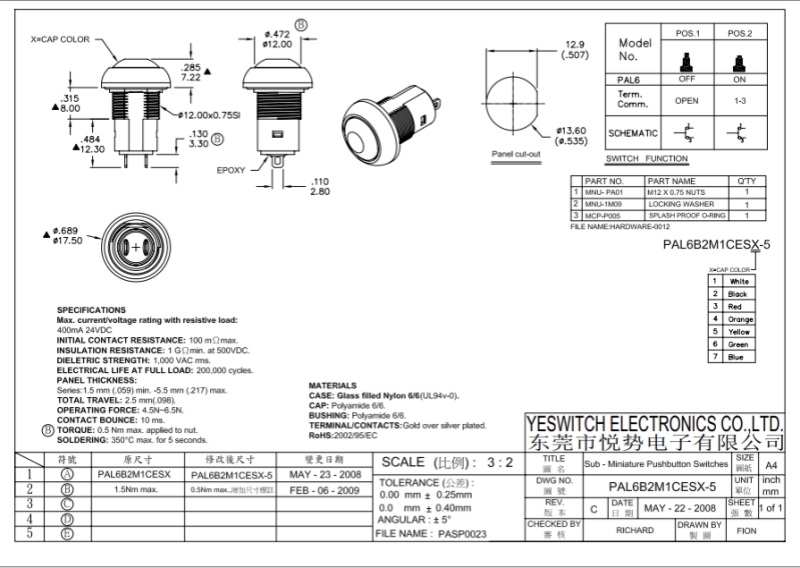

SPECIFICATIONS

Max. Current/voltage rating with resistive load:	400mA 24VDC
INITLAL GONTACT RESISTANCE:	100mΩ max
INSULATION RESISTANCE:	1GΩ min. at 500VDC
DELECTRIC STRENGTH:	1.000 VAC rms
ELECTRICAL LIFE AT FULL LOAD:	200,000 cycles
PANEL THICKNESS:	1.5mm(.059) min- 5.5mm(.217)max
TOTAL TRAVEL:	2.5mm(.098)
OPERATING FORCE:	4.5N~6.5N
GONTACT BOUNCE:	10 ms
TOROUE:	0.5Nm max. applied to nut
SOLDERING:	350 degree max. for 5 seconds
CAP COLOR:	White/Black/Red/Orange/Yellow/Green/Blue
LED COLOR:	White/Red/Yellow/Green/Blue/Red+Green

MATERIALS

CASE:	Glass filled Nylon 6/6(UL94v-0)
CAP:	Polyamide 6/6
BUSHING:	Polyamide 6/6
TERMINALICONTACTS:	Gold over silver plated.
