servo 4 colors pad printer

12 month ago

13 0 

9 year

Product details

Samples

The shuttle pad printer is one of the most important types of pad printers. It is equipped with a mobile workbench that can shuttle and change in different printing positions, which can achieve accurate color registration. The earliest shuttle workbench was controlled by a cylinder, with low positioning accuracy and limited printing functions. It is generally only suitable for multi-color pad printing at the same position of the same product, and its production efficiency is severely restricted.

With the increase in labor costs and the continuous improvement of pad printing machine functions, the shuttle workbench is upgraded, and the servo motor control is used to greatly improve the position accuracy of the shuttle workbench. At the same time, the shuttle workbench can also be installed with a servo device that can adjust horizontally, vertically, and angles in multiple dimensions to achieve one-time complex pad printing of products in multiple directions, angles, and colors. This type of pad printer usually analyzes the pad printing position and characteristics of the product, and finely sets various parameters and controls them under computer control, so as to achieve the purpose of fully pad printing a product with one machine, greatly improving production efficiency, which is equivalent to the automatic combination of multiple single-color pad printers.

Servo shuttle pad printers have been widely used in the printing fields of household appliances, electronics, auto parts, telecommunication products, toys, hardware paper products, plastic products, gifts, crafts and stationery products.

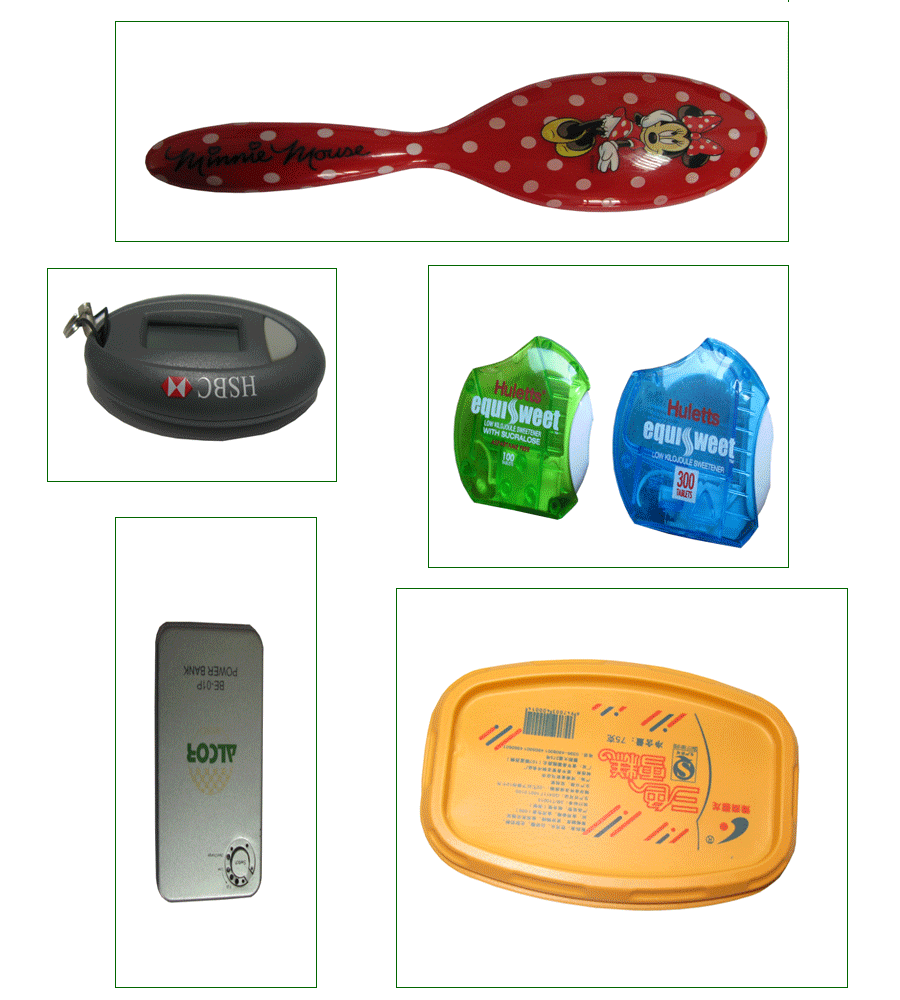

samples of pad printer

Technical data

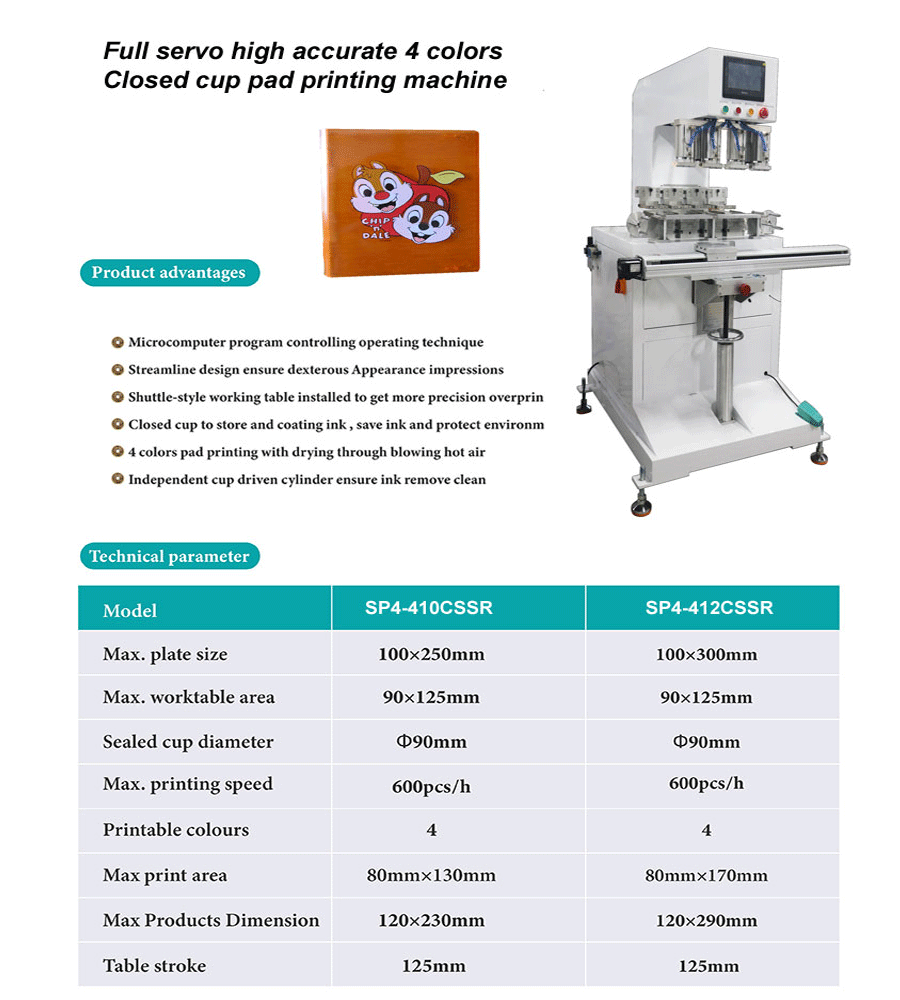

4 colors pad printer with shuttle//Parameter
Technical parameters	SP4-410CSSR	SP4-412CSSR
	Max. plate size: 100×250mm. Max. worktable area: 125×200mm. Sealed cup diameter: Φ90mm. Max. printing speed: 550pcs/h. Printable color:4 Shuttle stroke:125mm. Max print area: 80×130mm.	Max. plate size: 100×300mm. Max. worktable area: 125×200mm. Sealed cup diameter: Φ90mm Max. printing speed: 550pcs/h. Printable color: 4 Shuttle stroke:125mm. Max print area: 80×170mm.
Works supply	110V-220VPower supply; 5-7Bar Compress air;
Package list	Package dimension: 1.210×0.780×1.520m Gross weight: 195KG. CBM: 1.43453
H.S.Code	8443198000
Certicate	CE

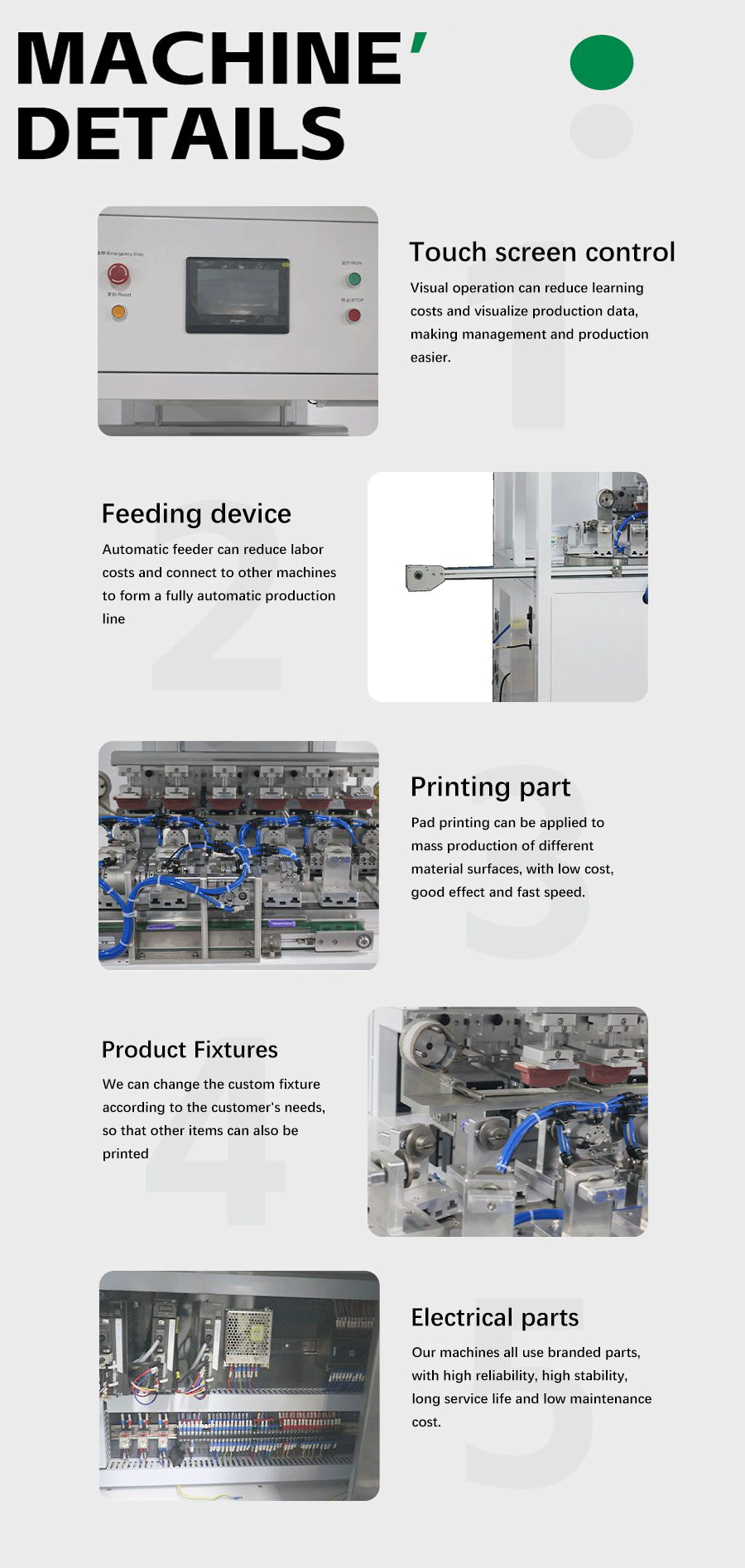

Details-Advantage

Microcomputer program controlling operating technique ;
Streamline design ensure dexterous Appearance impressions;
Coin aluminum structure frame coated Gross-Green color paint;
Shuttle working table installed to get more precision overprint;
Independency pressure adjustment of pad press-printing and picking up ink;
Either testing or running mode to operate ;
Closed cup to store and coating ink , save ink and protect environment .
Automatism digital count function;
4 colors pad printing with drying through blowing hot air:
Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
Independent cup driven cylinder ensure ink remove clean.

Catalogue

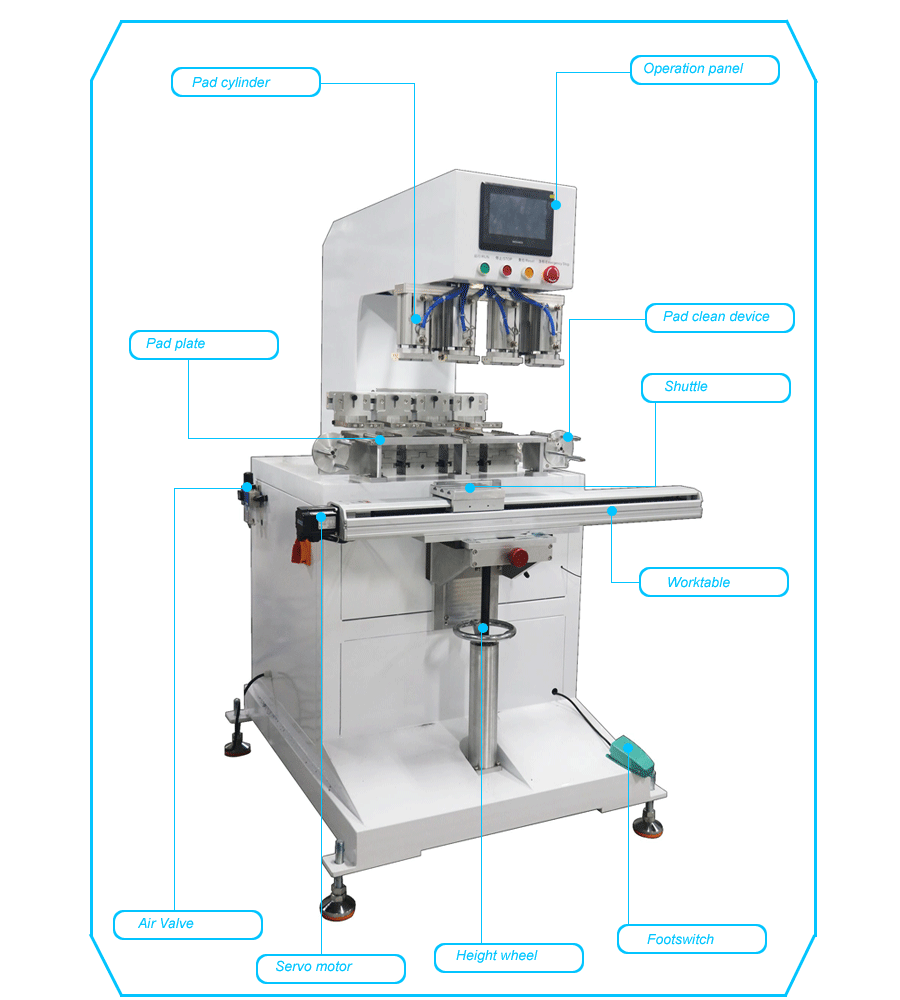

Structure
