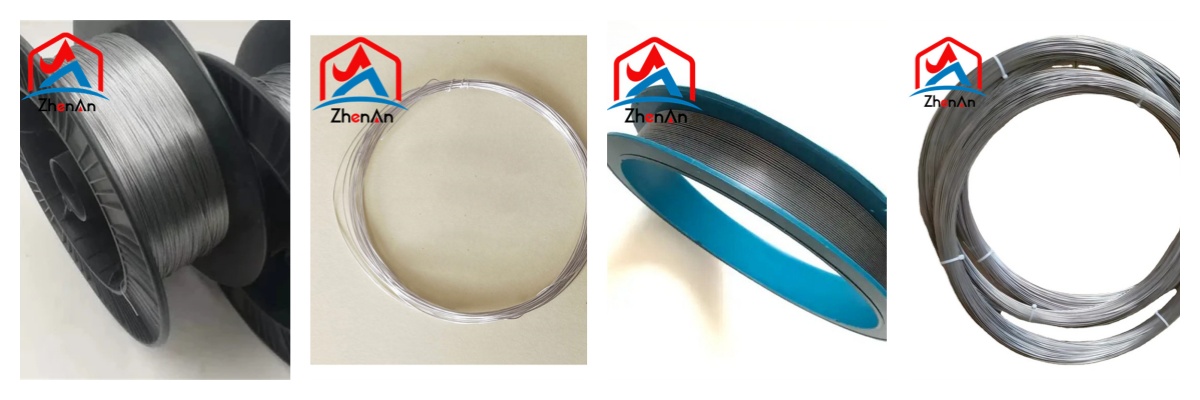

Tantalum wire
6 month ago
| Elements | Fe | Mo | Nb | Ni | Si | Ti | W |
| Content | 100 | 200 | 1000 | 100 | 50 | 100 | 50 |
Non-Metallic Impurities: ppm
| Elements | C | H | O | N |
| Content | 100 | 15 | 150 | 100 |
Mechanical Properties of Annealed Tantalum wires
| Diameter (mm) | Φ3.18-63.5 |
| Ultimate Tensile Strength (MPa) | 172 |
| Yield Strength (MPa) | 103 |
| Elongation (%, 1-inch gauge) | 25 |
Dimension Tolerance
| Diameter (mm) | Tolerance (±mm) |
| 0.254-0.508 | 0.013 |
| 0.508-0.762 | 0.019 |
| 0.762-1.524 | 0.025 |
| 1.524-2.286 | 0.038 |
| 2.286-3.175 | 0.051 |
| 3.175-4.750 | 0.076 |
| 4.750-9.525 | 0.102 |
| 9.525-12.70 | 0.127 |
| 12.70-15.88 | 0.178 |
| 15.88-19.05 | 0.203 |
| 19.05-25.40 | 0.254 |
| 25.40-38.10 | 0.381 |
| 38.10-50.80 | 0.508 |
| 50.80-63.50 | 0.762 |
We adhere to the principle of honest management and establish long-term cooperative relationships with customers to develop and grow together. In future cooperation, we will continue to improve and innovate to provide you with better products and services.
We also provide tantalum metal, molybdenum metal, niobium metal, zirconium metal, tungsten metal and other products in their series. Please feel free to contact us.
