YESWITCH 12mm IP67 Self-lock Pushbutton Red Switch

11 month ago

28 0 

7 year

Product details

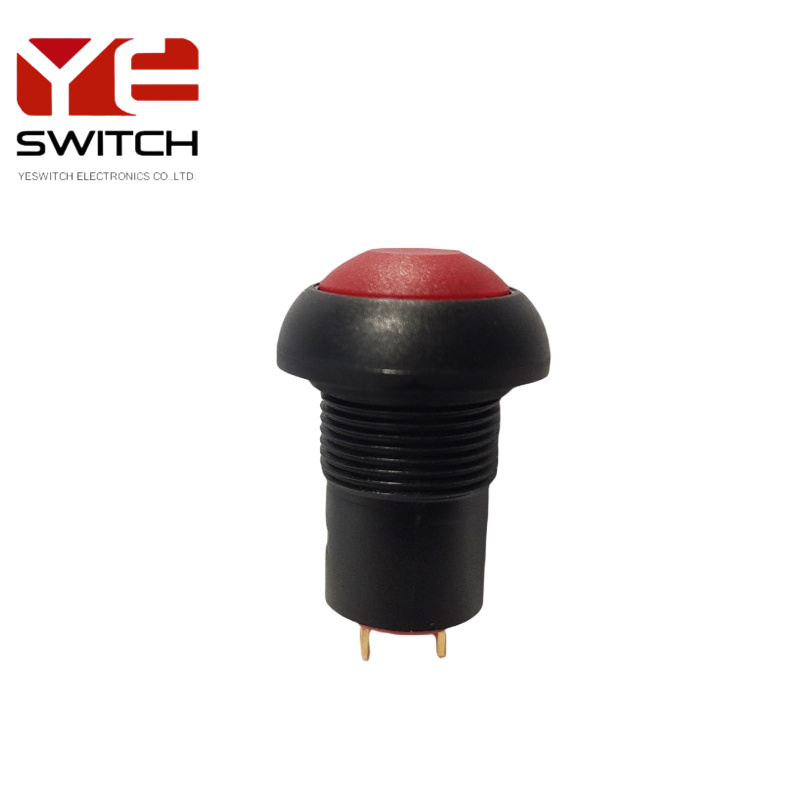

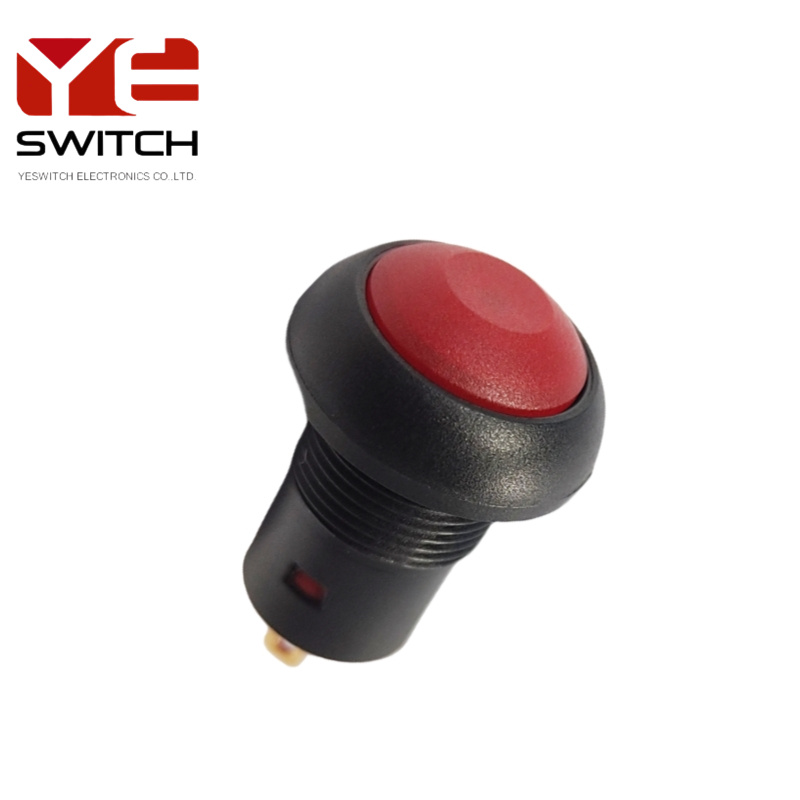

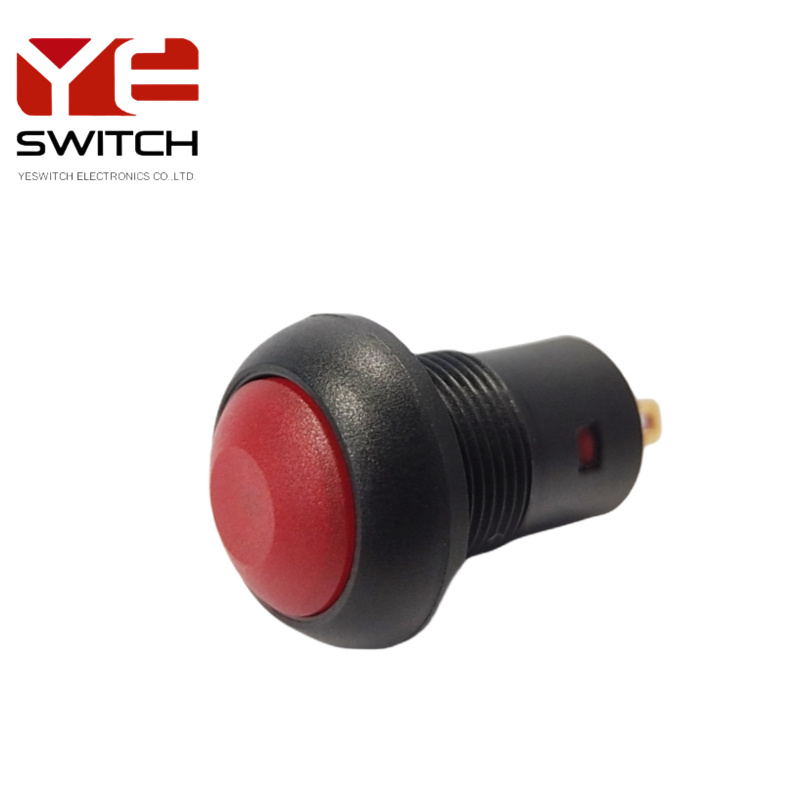

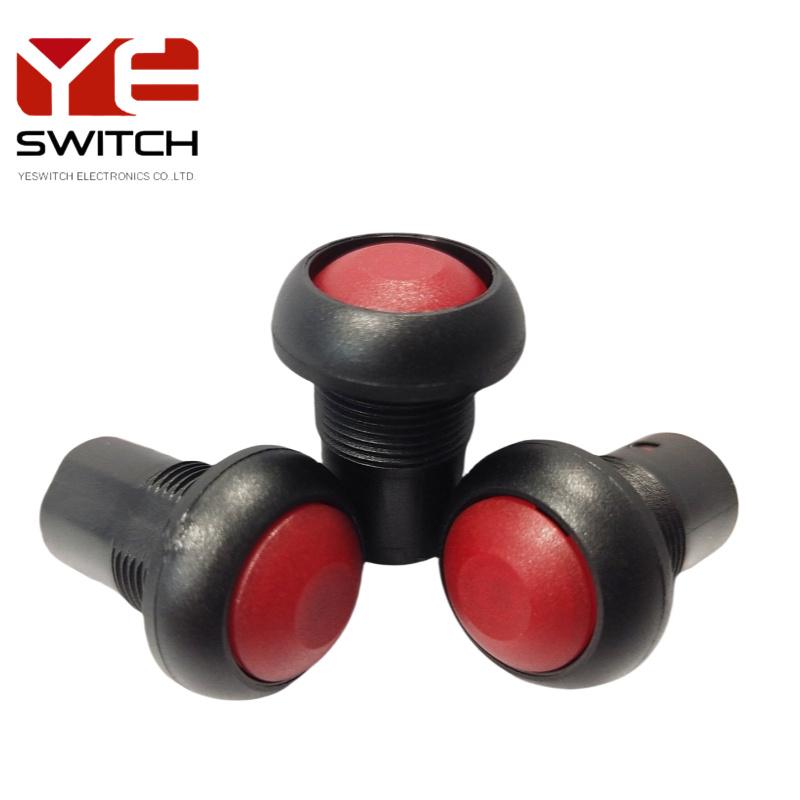

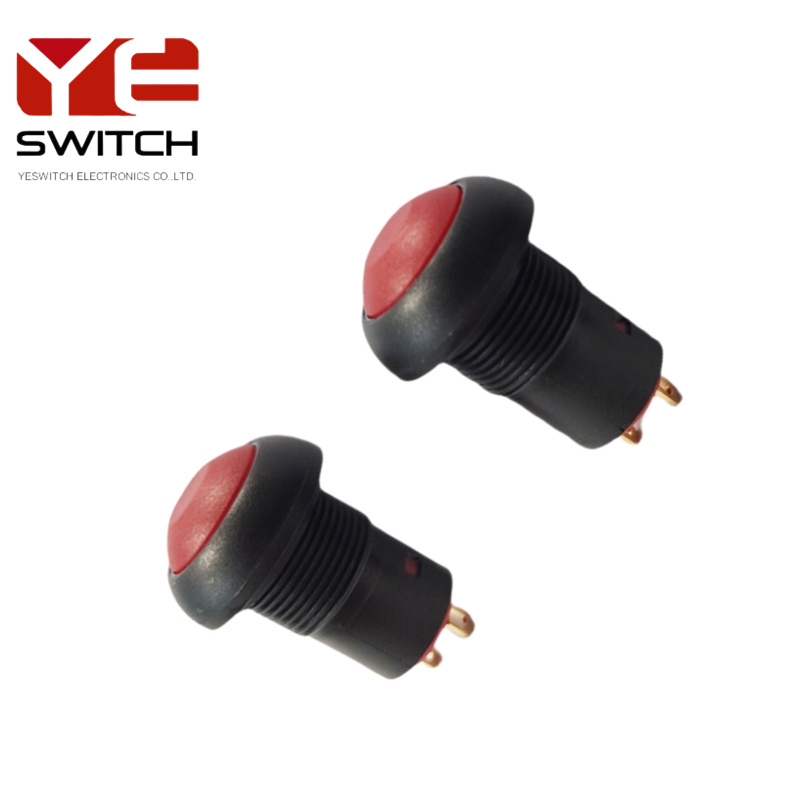

YESWITCH 12mm IP67 Self-lock Pushbutton Red Cap Switch

The push button switch not only has a 12mm self-locking function, but also has an IP67 level of sealed dustproof and waterproof protection,which can effectively prevent water droplets from entering the inside of the switch,ensure the normal use of the switch,and truly meet the needs of users in harsh environments.

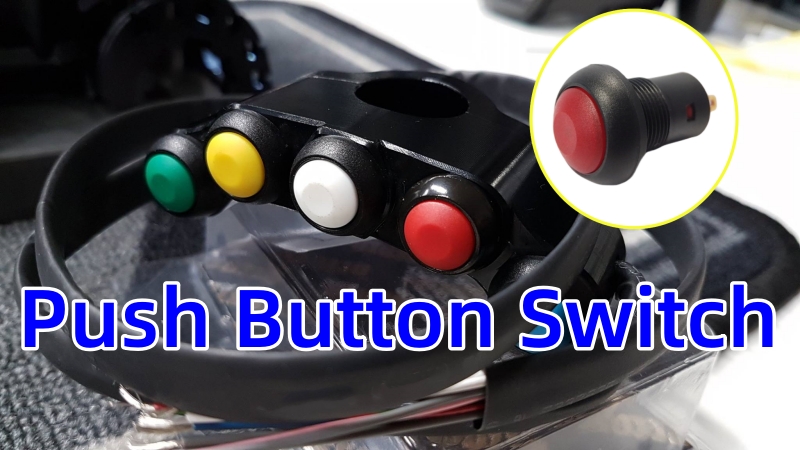

The waterproof push button switch is suitable for all kinds of motorcycles,buses,agricultural mechanical vehicles,ships,aviation aircraft,household appliances and other fields.No matter what the environment,the 12mm automotive switches provides stable,secure control of your device.

The push button switch types not only has a 12mm self-locking function, but also has a variety of button colors to choose from,including white,black,red,orange,yellow,green,blue.Different colors can add personality to your device.In addition,the automotive push button switches also offers a choice of lights,and the LED color is also white,red,yellow,green,and blue.

The 12mm push button switch not only looks fashionable, but also has a long service life and strong durability.Its surface is treated with imported technology and has good corrosion resistance and wear resistance.At the same time,the internal structure is made of high-quality materials to ensure that the switch will not loosen or fall off during use.

SPECIFICATIONS

Max. Current/voltage rating with resistive load:400mA 24VDC
INITLAL GONTACT RESISTANCE: 100mΩ max
INSULATION RESISTANCE: 1GΩ min. at 500VDC
DELECTRIC STRENGTH: 1.000 VAC rms
ELECTRICAL LIFE AT FULL LOAD: 200,000 cycles
PANEL THICKNESS: 1.5mm(.059) min- 5.5mm(.217)max
TOTAL TRAVEL: 2.5mm(.098)
OPERATING FORCE: 4.5N~6.5N
GONTACT BOUNCE: 10 ms
TOROUE: 0.5Nm max. applied to nut
SOLDERING: 350 degree max. for 5 seconds
CAP COLOR:White/Black/Red/Orange/Yellow/Green/Blue
LED COLOR:White/Red/Yellow/Green/Blue/Red+Green

MATERIALS

CASE: Glass filled Nylon 6/6(UL94v-0)
CAP: Polyamide 6/6
BUSHING: Polyamide 6/6
TERMINALICONTACTS:Gold over silver plated.
RoHS
