Product details

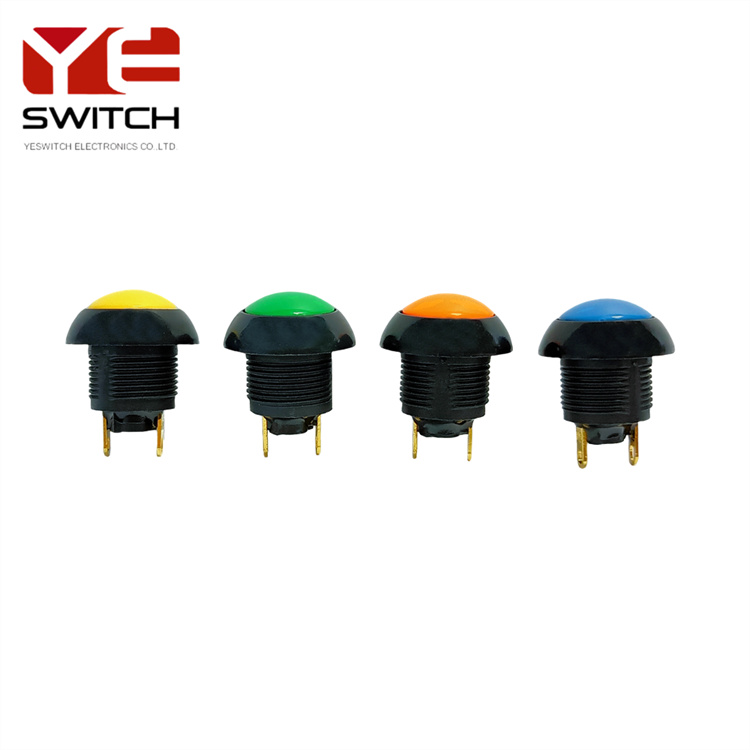

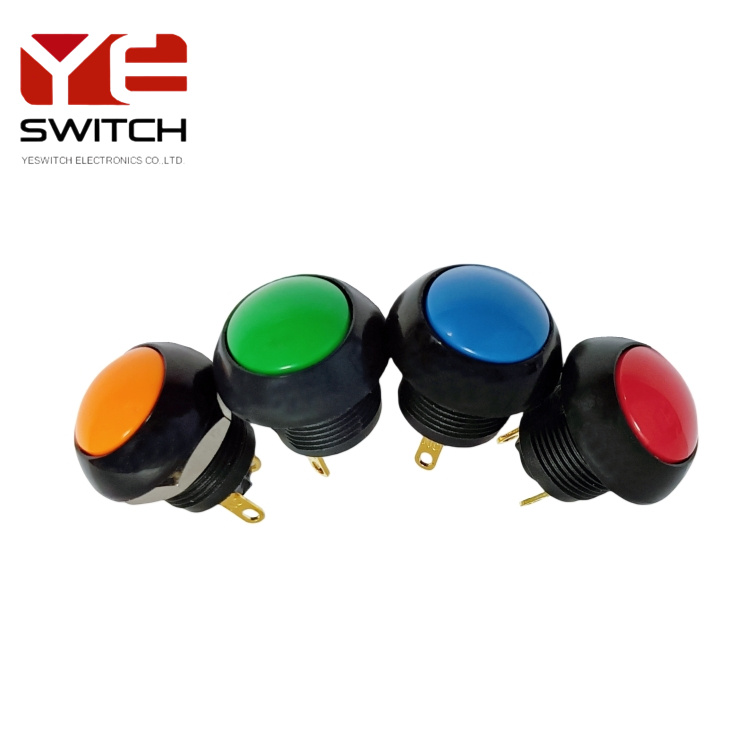

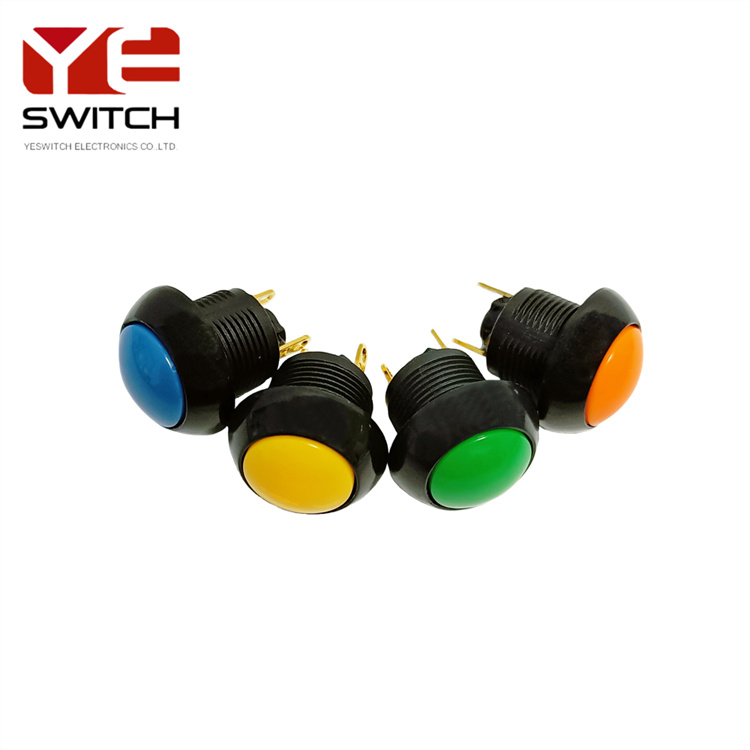

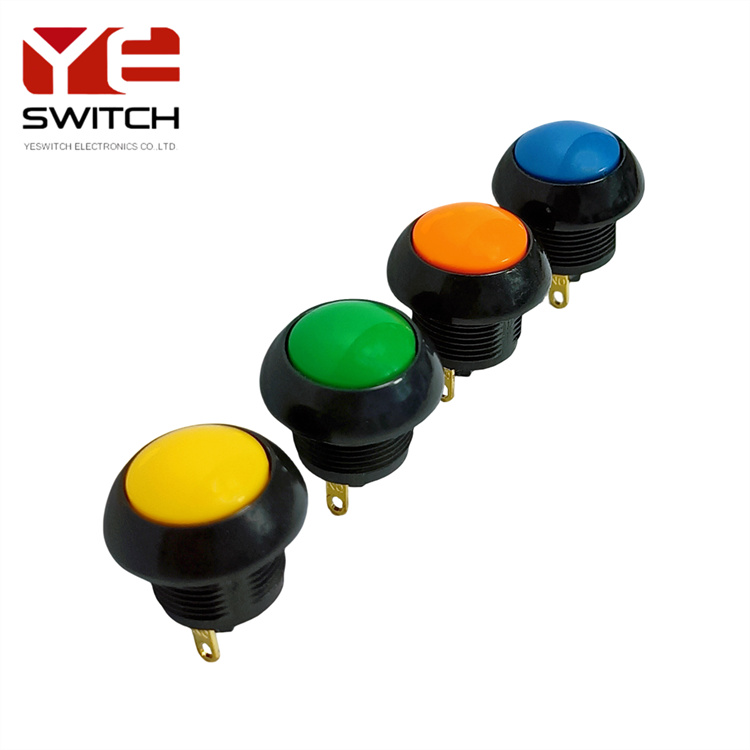

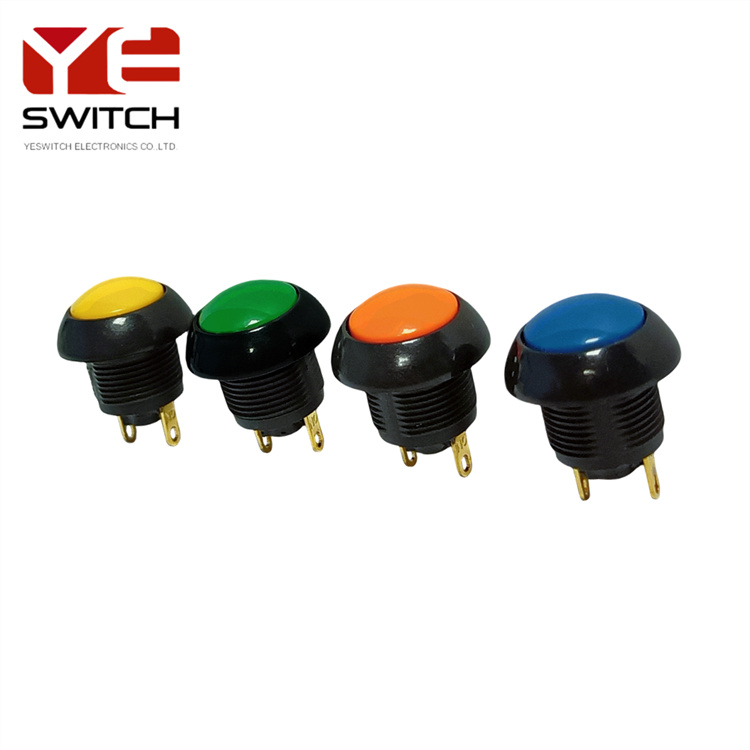

YESWITCH 12mm Waterproof Momentary Dome Push Button Switch

YESWITCH 12mm PA series dome push button switches feature a contoured dome style push button.There are two button versions: low button profile and high button profile. The waterproof push button switch comes with a threaded case for hex nut mounting.The automotive switches also offer excellent mechanical and electrical performance while operating under severe conditions found in demanding applications.

The PA Series 12mm push button switch types are offered in watertight, moistureproof and dustproof features sealed construction. One million mechanical operations and at full rated load of 5 amps resistive or 1 amps inductive.

IP67 Watertight sealing is available in standard and low-force double break snap-action and non-snap shorting bar models. All are momentary action. Special contact variations are available. High contact pressure and unique contact design provide low contact resistance for low level switching capability as well as full rated service. Solder, PC Pin, and Quick Connect termination options are available.

The 12mm dome push button switch is a quality precision switch designed for use in panels, control grips, computers, instruments, heavy equipment and other demanding application.

ELECTRICAL RATING:

Resistive:28VDC 5A 4A(DB) 25,000cycles
Resistive:115VAC 1A 1A(DB)25,000cycles
Inductive:28VDC 2A 2A(DB) 25,000cycles
Contact Resistance:50mΩ Max.
Insulation Resistance: 1GΩ @ 500DVC
Dielectric Strength:AC 1000V 1 minute
Mechanical Life:1,000,000cycles
Operating Temperature:-40°C~+85°C
Switch action:Momentary
Switch circuitry: SPDT ,load 1N.0./1N.C. 2 Circuit Life
Actuator Ingress Protection: lP67,IP68S,and IP69K(Front Panel)
Total travel: 1.6mm max.
Operating Force :1.7lbs [770g].
Release Force :12oz [340g]
Stands:UL61058 ROHS

MATERIAL:

Base:PA66
Cap: ABS
Terminal: Brass,Gold plated
Nut:Brass,Ni plated
