Product details

 PV Plus (PV+) Voltage Solar Panel System Generation Optimiser


The Solar+Plus is designed for use in domestic applications in conjunction with Solar Photovoltaic systems up to 4kW.


Generate 20% more electricity from your Solar Panel System using the NEW PV+.


NO HIDDEN EXTRAS - FULLY INSTALLED PRICE - GUARANTEED


How does the PV + work?
Solar PV systems have to increase the supplied voltage, by typically 4 volts, to be able to push the generated energy around your property and if not used back onto the national grid.
The increase in voltage and losses in wiring circuits can cause inverters to prematurely shut down on over voltage settings.
By monitoring the incoming supply voltage the PV+ unit allows the PV inverter to compliantly stay in circuit longer, preventing nuisance over voltage shut down and increasing PV generation.
Furthermore like all electrical appliances manufactured for Europe and the UK, Solar PV inverters are designed to operate at 230V. Running inverters closer to their designed voltage will help prevent over heating of the appliance.
Why do I need a PV Plus?
According to a recent report carried out by Western Power Distribution over 50% of our homes and businesses are supplied at a voltage above 243.8V, with nearly 7%of these being supplied with a voltage above 248.8V!
Although this falls well within the allowed supply voltages of 207/253V it can lead to loss of generation from your PV system. Reducing precious free generated energy and potentially reducing your return on investment.

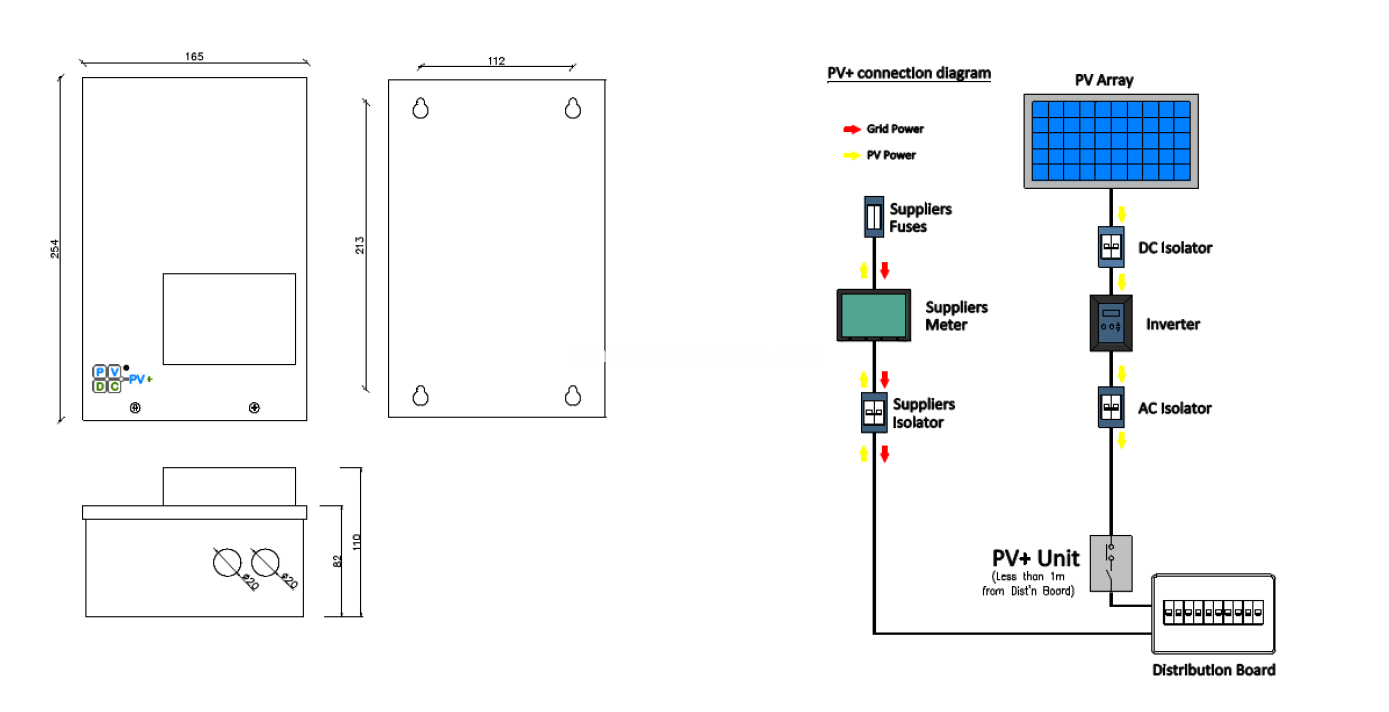

PV+ dimension and wire connection introduction

11






PV+ Technical Parameter

Name

PV+ Grid Voltage Monitor

Input voltage

Single phase 235~253V 50Hz

Capacity

4kw

Working Temperature

-5~45

DimensionS

254mm x 165mm x82 (110)mm

Weight

3.0KG

Ingress Protection

IP20

Warranty

5 years






How does the PV+ help?





By monitoring the incoming supply voltage, the PV+ unit allows the Solar PV inverter to compliantly stay in circuit for longer, preventing nuisance over voltage shut down and keeping you generating for longer. Meaning a faster return of investment for existing and new systems alike.





Additionally, as excessive voltage is given up as heat in electrical appliances, running the PV inverter closer to it’s designed voltage will reduce stresses caused by overheating and potentially help increase it’s operating life.
