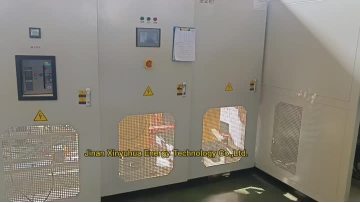

400hz Frequency Converter for Plane


This kind of products  one of the most popular 400Hz static frequency converter. AF400 is designed to change conventional 50 Hz or 60 Hz electrical energy to 400Hz/300-500Hz (adjustable).It integrates IGBT made by Mitsubishi, Siemens, and combines analog signal control design together for compact size and higher reliability.


AC400 as a power source is ideal for testing aviation electronics and aviation electrical equipment.
It can simulate 115V 400Hz aircraft power with clean sine wave output and excellent line and load regulation, high efficiency and low harmonic distortion.



★Adopt advanced IGBT/SPWM technology,small capacity,low noise,high reliability
★A lot of input immunity scope design,input the adapter power generator
★Double isolation from the input and output,safe and reliability
★Output pure sine wave, the wave shape is pure and steady
★ Perfect protection function



 Technic Parameter

Model

13030

13060

13100

33200

33450

33600

331000

331500

333000

Capacity

3KVA

6KVA

10KVA

20KVA

45KVA

60 KVA

100KVA

150KVA

300KVA

Circuit mode

IGBT/SPWM

Output frequency

400Hz/300~500Hz

Load stability

≤±1%

Frequency stability

≤±0.01%

Input

220V±20%

380V±20% 45~65hz

Input phase

1phase

3phase 4wires

three phases imbalance.

phase120°±2° ;phase difference<3% rated value

Wave distortion

THD≤2%

Outputvoltage

3phase 4wires ;115V(200V)±20% or 21V(36V)±20%

Over load ability

125% for 30 min; 150% for 90 sec;200% for 20 sec.

Protection function

≤2mS

Meter Display

Frequencyvoltagecurrentpowerpower factor 4 number display

Protection function

Over voltage, over current, over temperature, over load, short circuit, and automatic alarm.

Insulation reactance

500Vdc 20MΩ

Pressure endurance insulation

1800Vac/5mA/1 minute

Cooling mode

Compulsive fan cooling

Protect grade

IP20/IP32(optional)

Mobile function

With Trailor or without Trailor(optional)

Working temperature

-20~50

Relative humidity

0-90%No condensation

Altitude

1500 meters

Dimension(W×L×H)mm

660×400×800

830×450×1100

520×1160×1370

600×1320×1440

1850×1100

×1750
