Product details

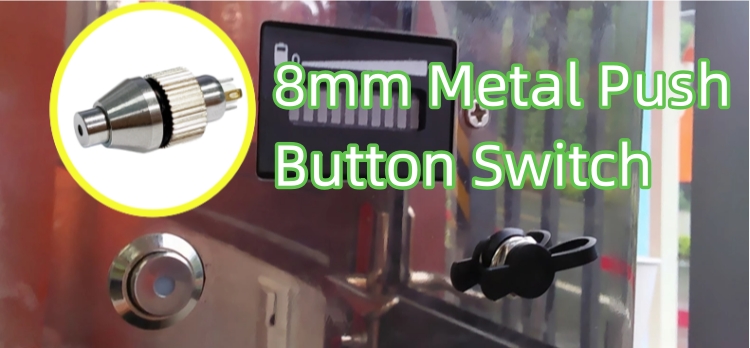

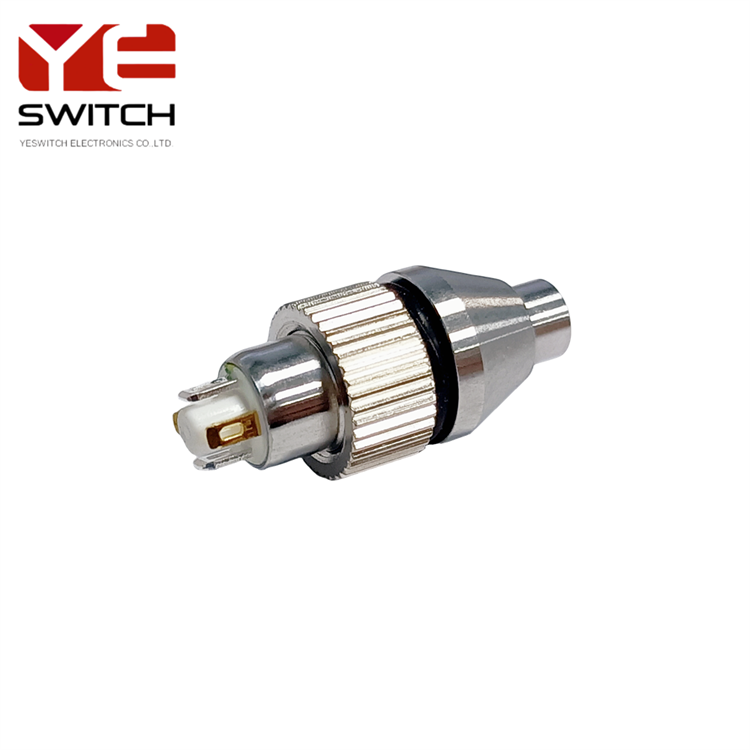

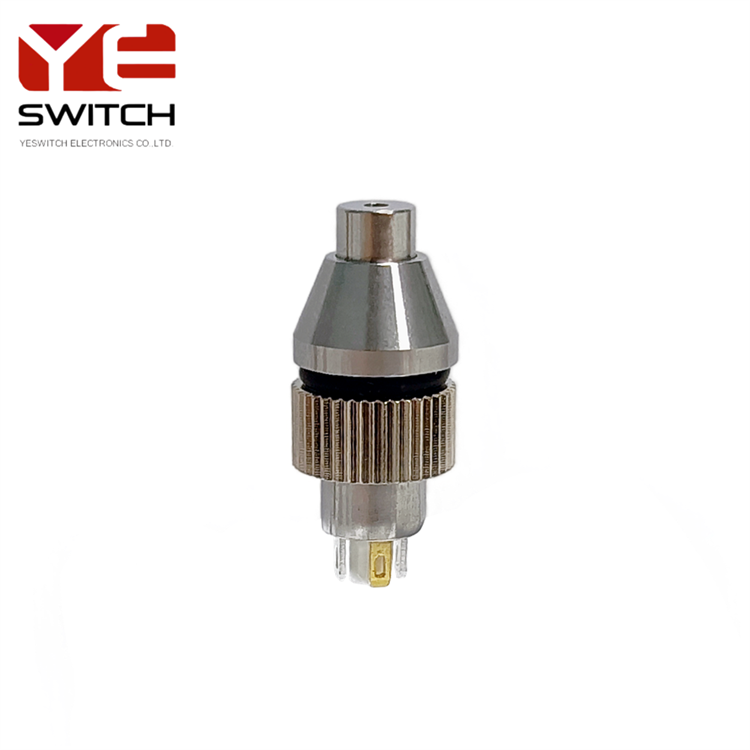

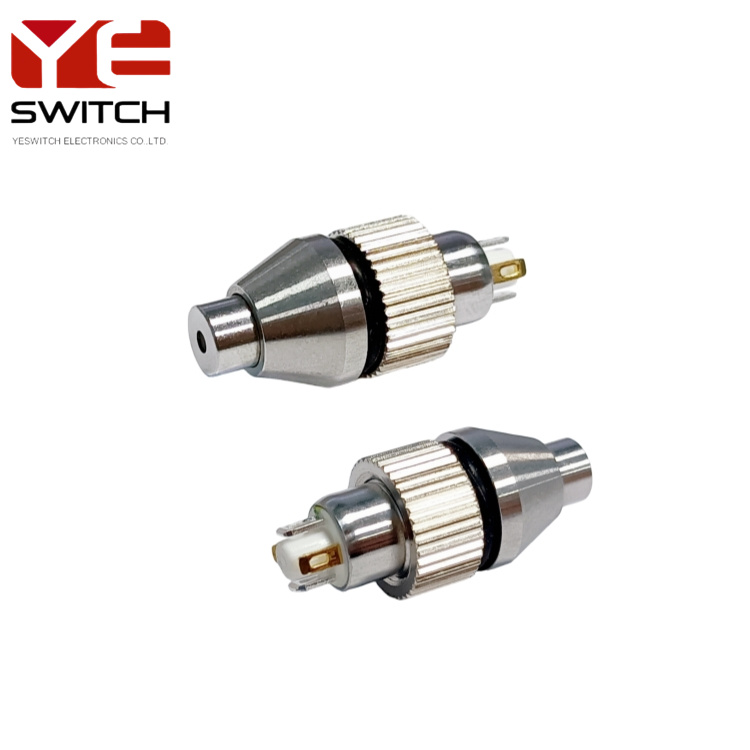

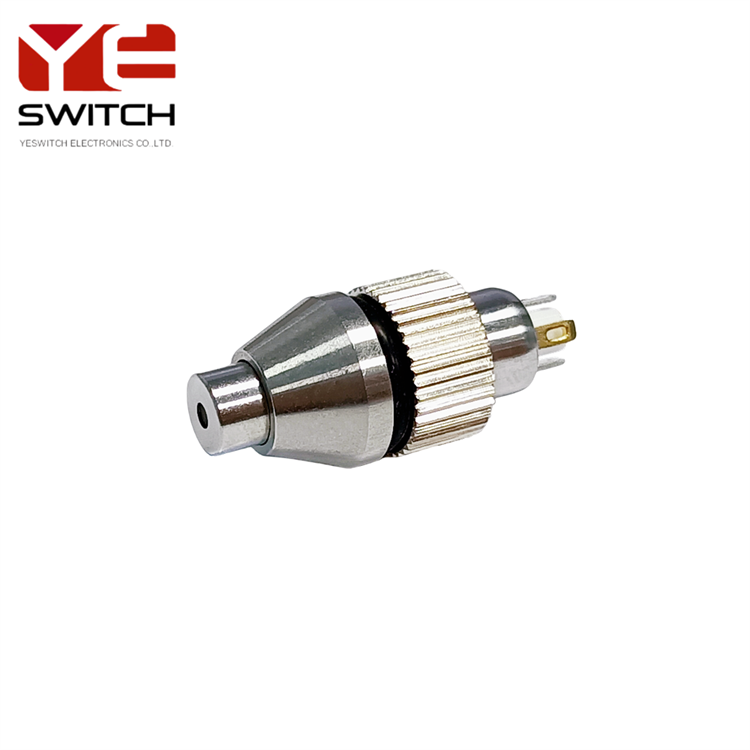

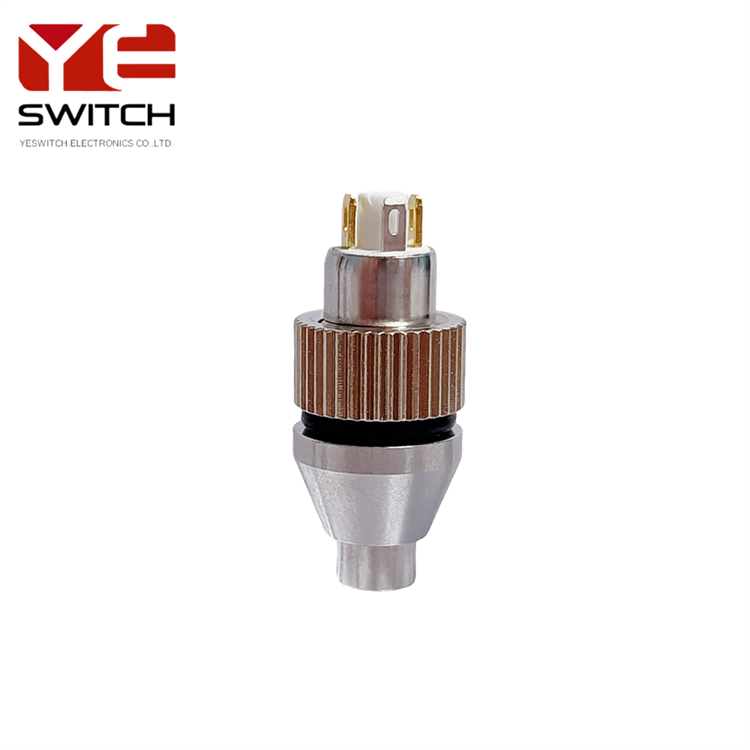

YESWITCH 8mm IP68 Self-lock Metal Push Button Switch

YESWITCH 8mm dust and water resistant IP68 small metal push button switch has self-lock and momentary function.The waterproof push button switch make your equipment more secure.The 8mm waterproof metal switch with high head button design, comfortable grip, which is suitable for a variety of scenes.The 8mm metal switches with stainless steel, corrosion resistant, IP68 dustproof and waterproof,suitable for outdoor waterproof equipment, medical equipment, alarm equipment, lighting fixtures and so on.

The automotive switches with dot luminescence type, red, white, blue, green, yellow, orange and other colors are available to add color to your life. And the metal push button switch has two options with and without lights, can be selected according to your needs. The 8mm automotive push button switches has mechanical life of 1 million cycles, electrical life of 500,000 cycles, long life, the use of rest assured. Whatever,the push button switch operating temperature -20~80 degrees Celsius, a wide range of applications to meet your various needs.

Choose YESWITCH 8mm IP68 dustproof and waterproof metal push button switch to make your equipment smarter and more powerful. Whether outdoors or indoors, this push-button switch gives you the best experience.

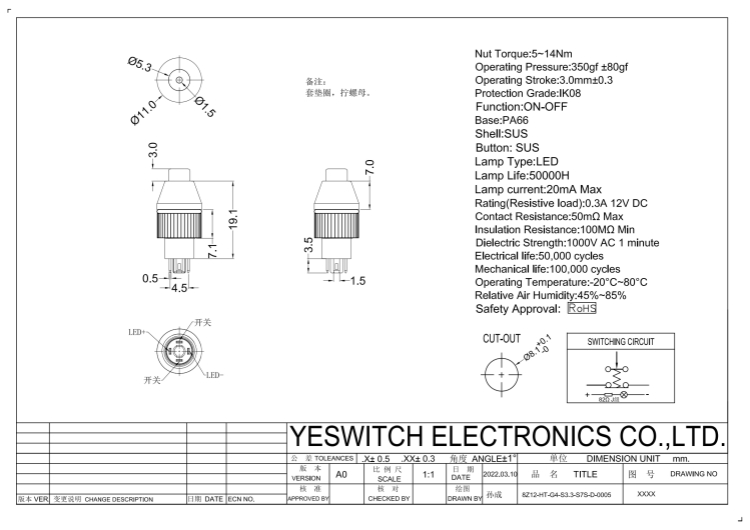

SPECIFICATION

Nut Torque:5~14Nm
Operating Pressure:350gf ±80gf
Operating Stroke:3.0mm±0.3
Protection Grade:IK08
Function:ON-OFF
Lamp Type:LED
Lamp Life:50000H
Lamp current:20mA Max
Rating(Resistive load):0.3A 12V DC
Contact Resistance:50mΩ Max
Insulation Resistance:100MΩ Min
Dielectric Strength:1000V AC 1 minute
Electrical life:50,000 cycles
Mechanical life:100,000 cycles
Operating Temperature:-20°C~80°C
Relative Air Humidity:45%~85%

MATERIAL

Base:PA66
Shell:SUS
Button: SUS
