Product details

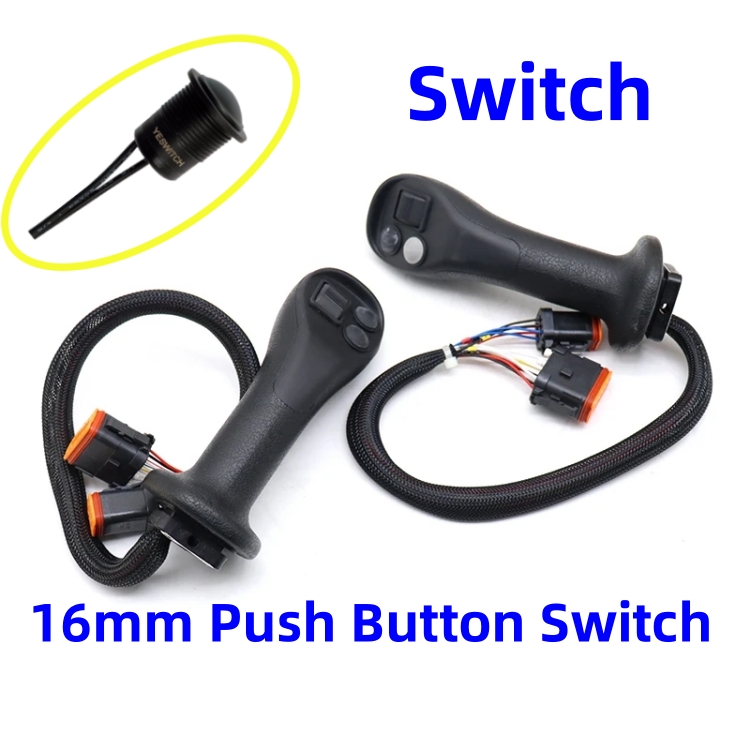

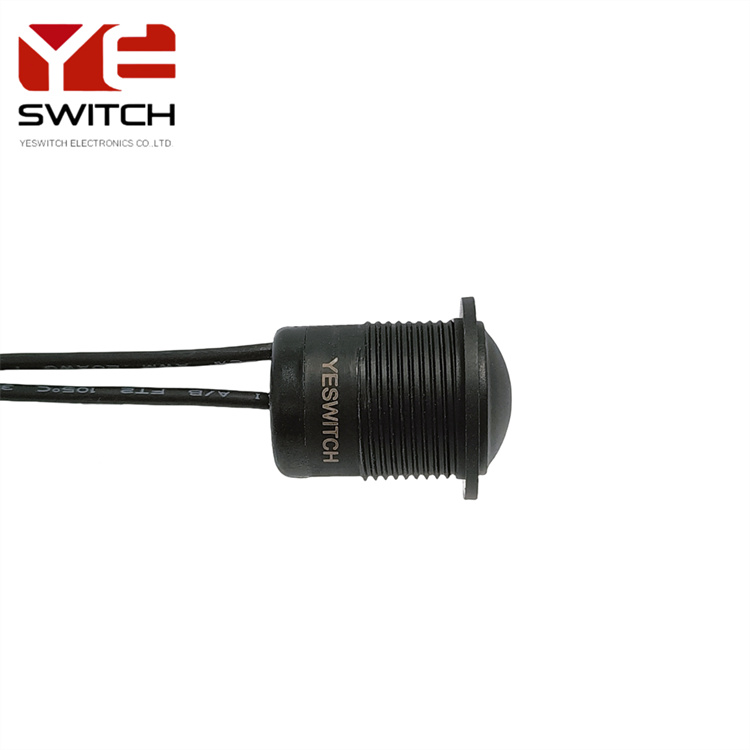

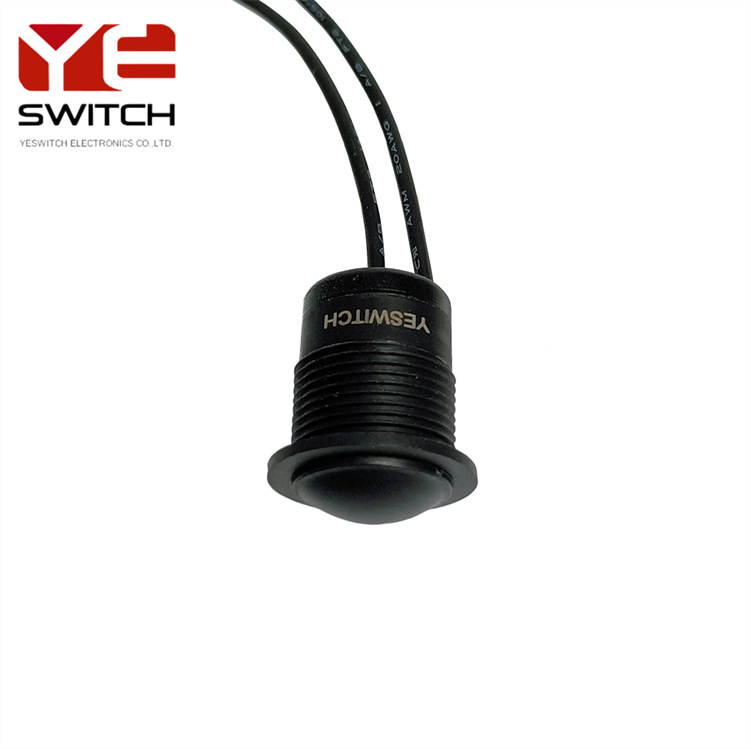

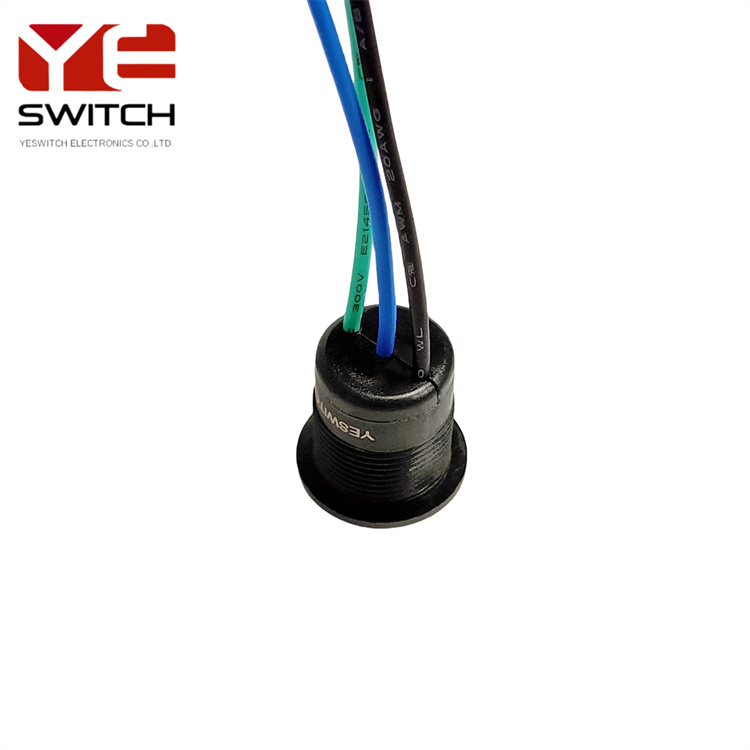

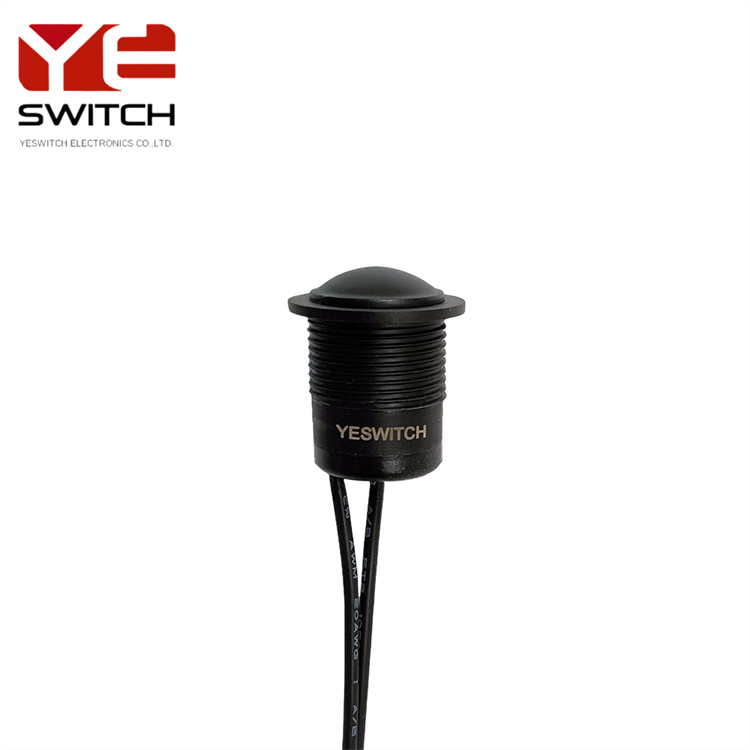

YESWITCH 16mm Momentary Low Profile Push Button Switch With Wire

YESWITCH 16mm waterproof push button switch with wire harness and momentary function,which can avoid mistouch.Push button switches only reveals about 4mm, the mechanical life is up to 1,000,000 times, rating is 2A/24VDC, and automotive push button switch travel is only 1.5mm.

16mm automotive switches with whole water proof,which can reach IP67 according to our internal testing,and push button switch also has excellent anti-fouling protection.Low profile push button switches are compact and easy to operate,making them ideal for use on small devices.

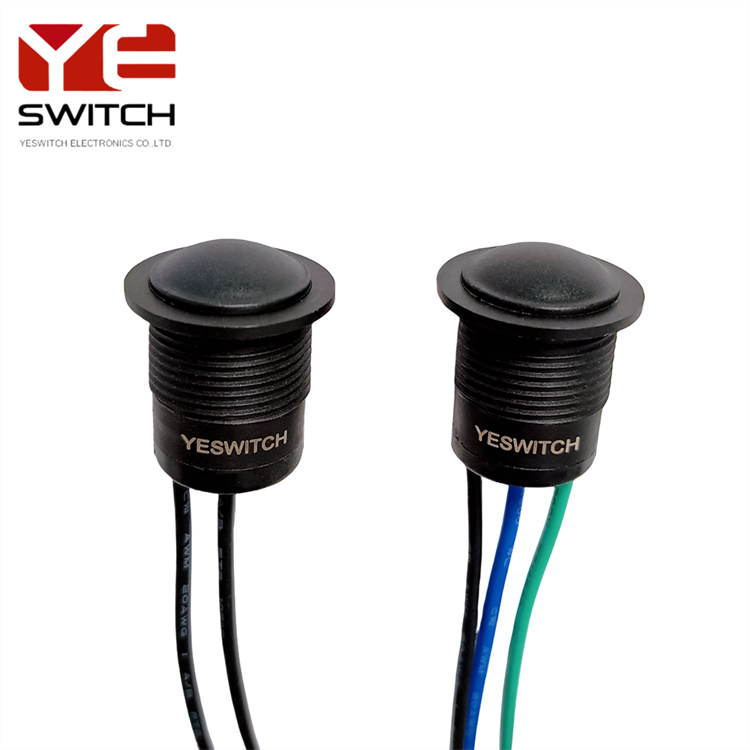

16mm waterproof switch has a black plastic case bushing and button color diversity, white,black,red,yellow,green and blue options.The 16mm push button switch has SPDT,SPST-NO,SPST-NC three functions.The insulation resistance can reach 100mΩ min. at 500VDC and the torque is 0.5 to 1 Nm max.The push-button switch can adapt to ambient temperatures from -20 to 65 degrees,and has a wide range of applications.

The push button switch types is especially suitable in harsh environment,such as industrial control,lighting device,computer peripherals,communication equipment,medical equipment,marine equipment and crane equipment etc.

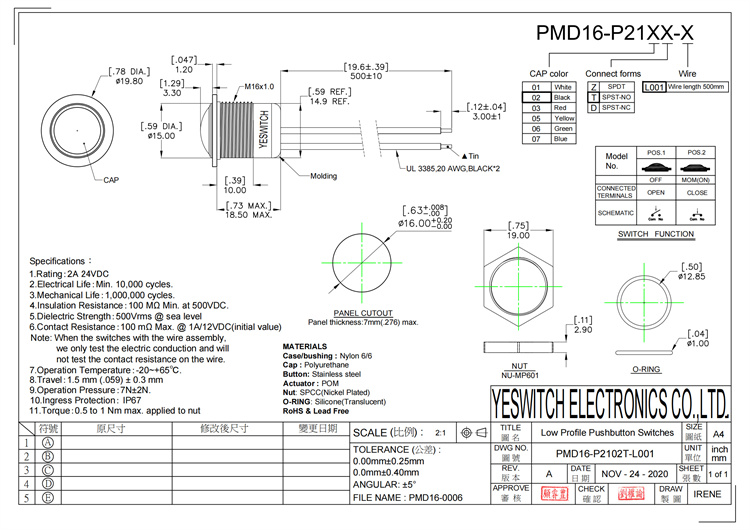

SPECIFICATIONS

RATING:2A 24VDC
ELECTRICAL LIFE:Min. 10,000 cycles.
MECHANICAL LIFE:1,000,000 cycles.
INSULATION RESISTANCE :100mΩ min. at 500VDC
OPERATING TEMPERATURE RANGE:-20°C ~ 65°C
TRAVEL:1.5(0.59inch)±0.3mm
INGRESS PROTECTION:IP67 (In house test)

MATERIALS

CASE & BUSHING:Nylon 6/6
CAP:Polyurethane
BUTTON:Stainless steel
ACTUATOR:POM
NUT:SPCC(Nickel Plated)
O-RING:Silicone(Translucent)
