Product details

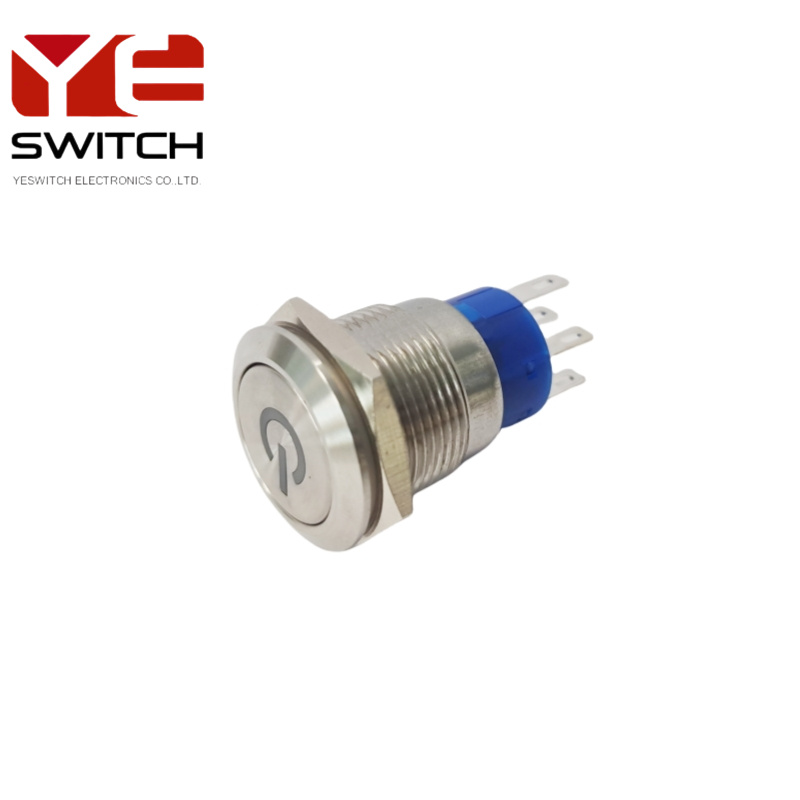

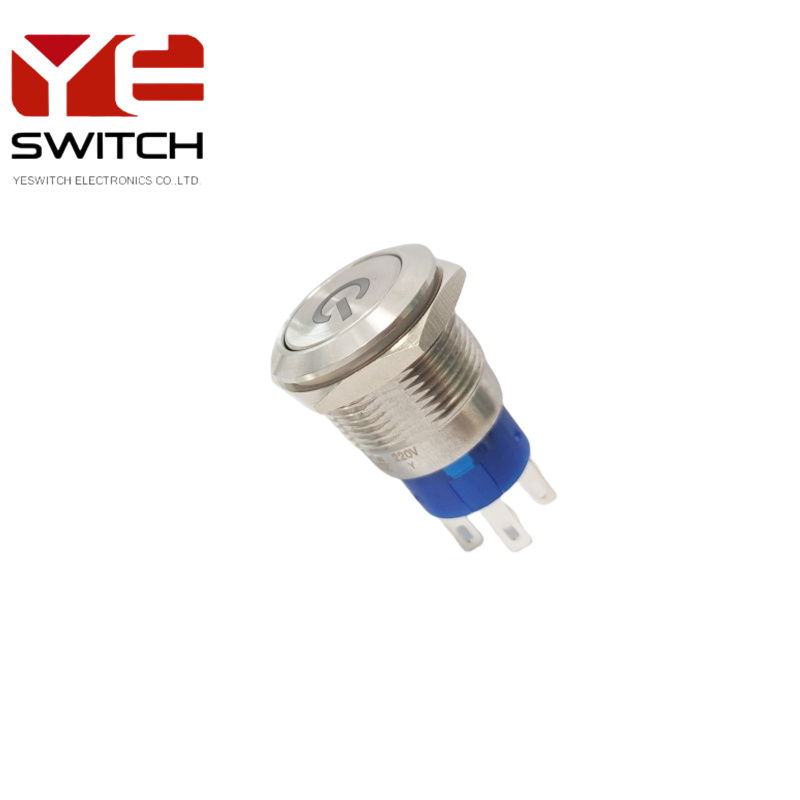

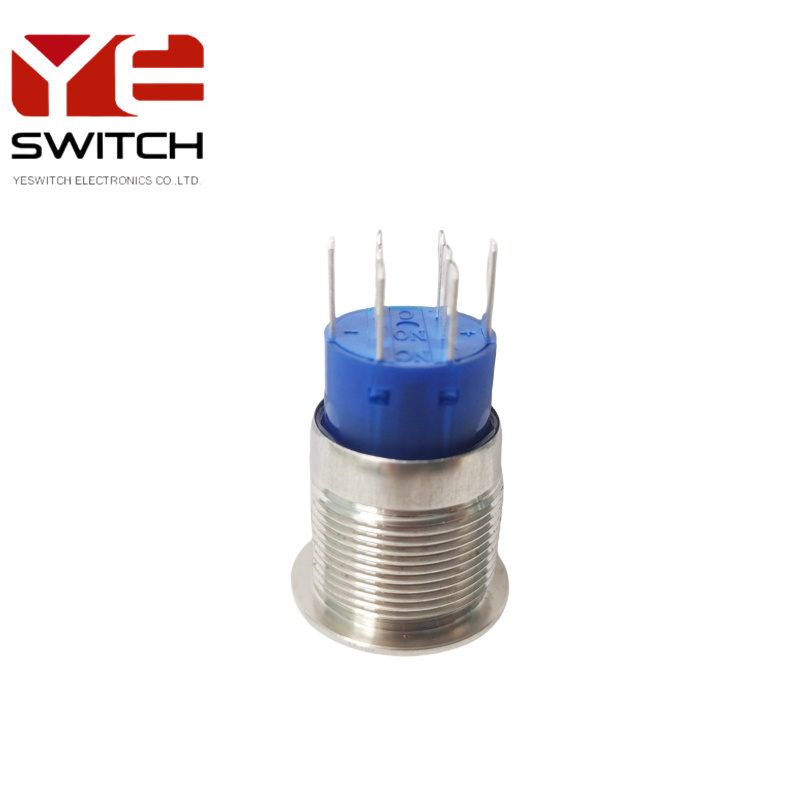

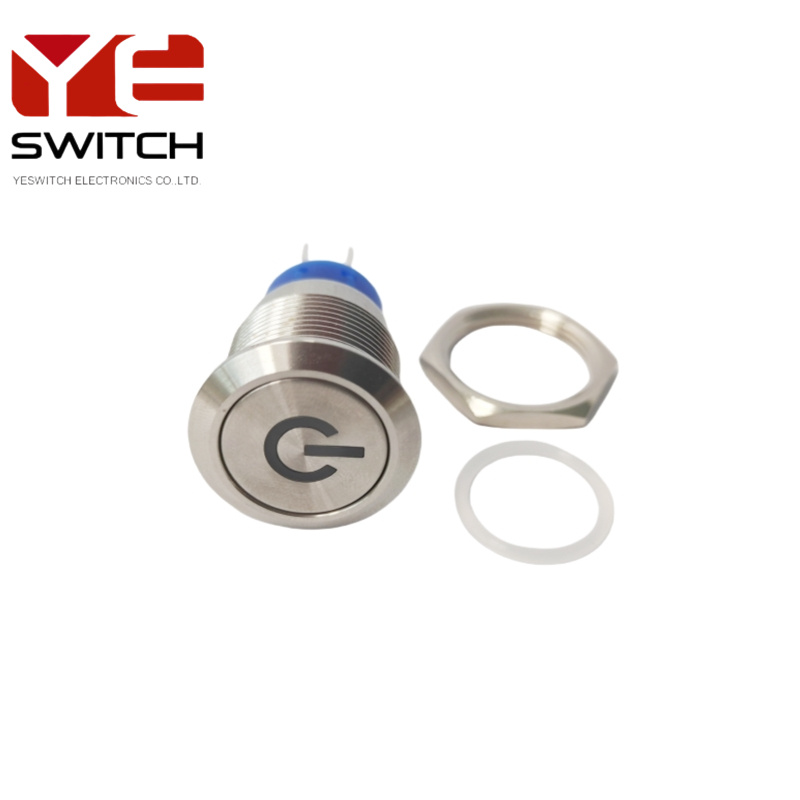

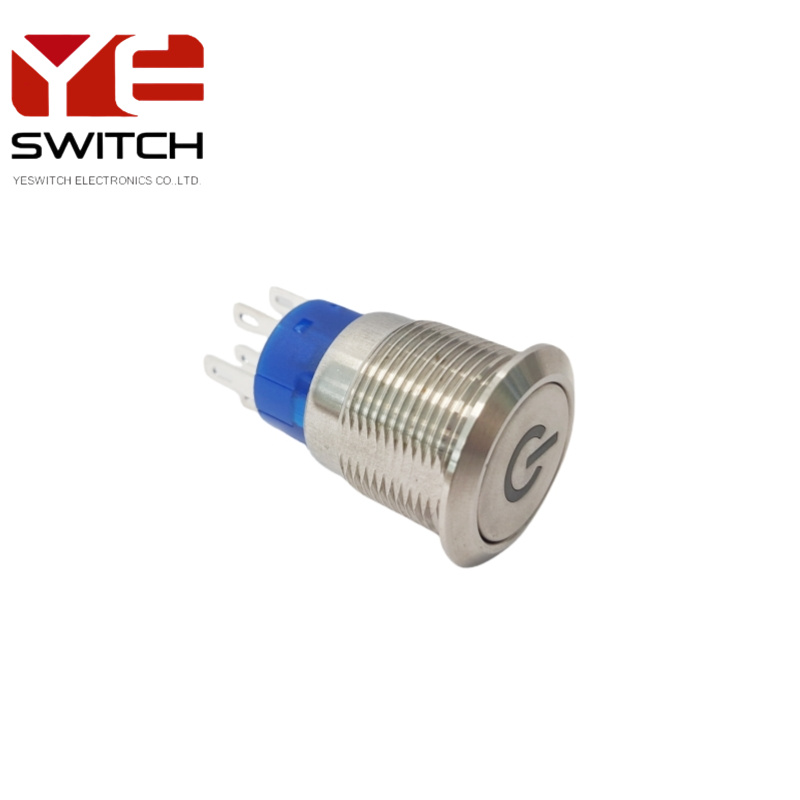

YESWITCH 19mm Momentary Lock Metal Push Button Switch

YESWITCH 19mm panel size metal push button switch, made of stainless steel material, has excellent damage resistance.The waterproof push button switch protection level up to IK10,even if the mechanism panel is damaged, the metal automotive switches will not be damaged by impact.The waterproof level of the front of the push button switch reaches IP67, which clearly protects the waterproof metal switch from water seepage into the mechanism.

The 19mm automotive push button switch not only has UL-certified electrical specifications, operating at 3A250VAC, can meet most user needs. And the push button switches rich features, including momentary,self-lock,1NO1NC, 2NO2NC, button with flat head, high head can be selected, with lights and without lights, with lights have monochrome lights and two-color lights, a variety of colors can be selected.

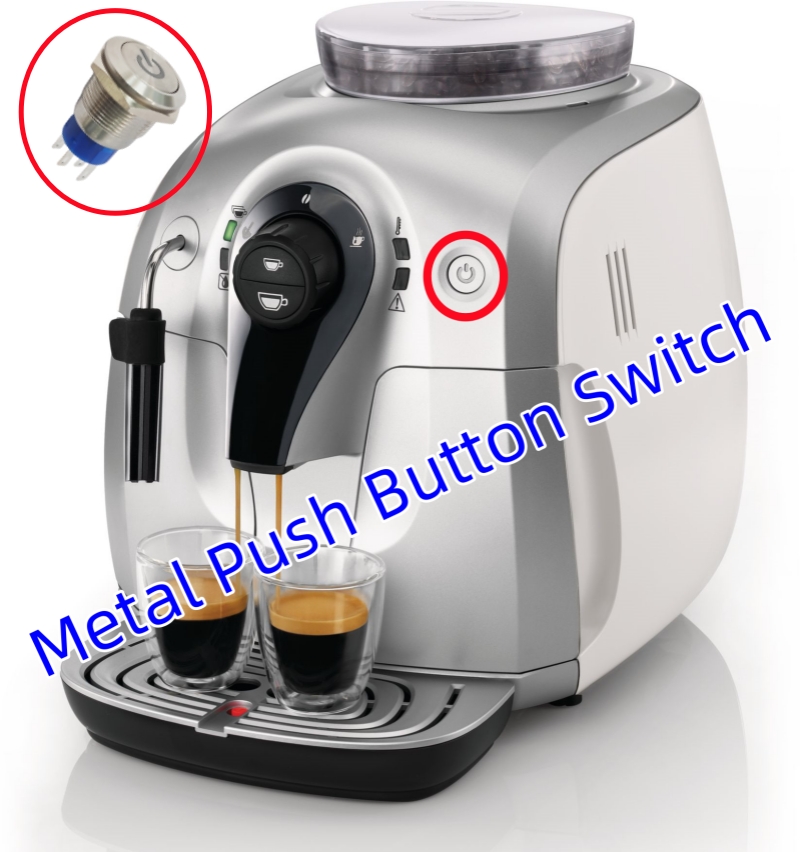

Applications for the tamper-resistant push button switch include:Audio/Video Equipment,safety devices,industrial control,newsstand,Home appliances and medical equipment.

In short, the 19mm metal button switch has performed very well in terms of performance, quality and appearance, and is a switch product that is very worthy of our choice.

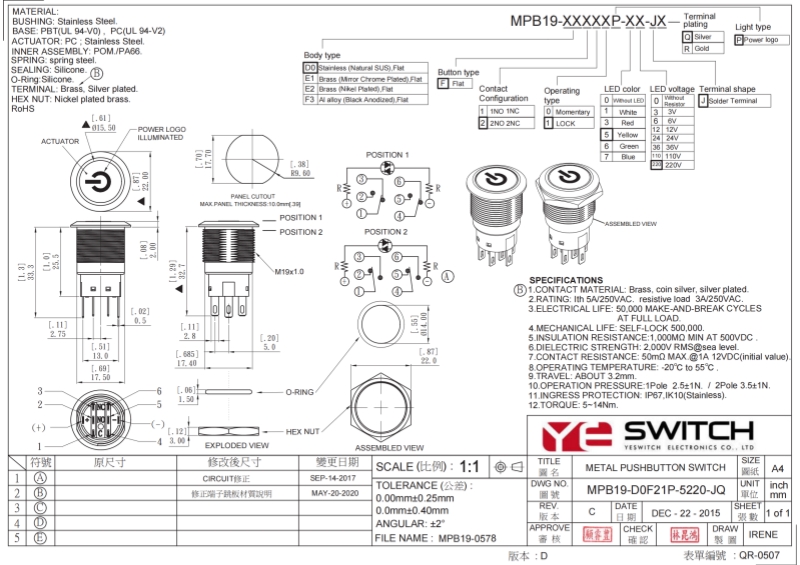

SPECIFICATIONS

CONTACT MATERIAL: Brass, coin silver, silver plated.
RATING:Ith5A250VAC,resistive load 3A250VAC.
ELECTRICAL LIFE:50,000 MAKE-AND-BREAK CYCLESAT FULL LOAD.
MECHANICAL LIFE: SELF-LOCK 500.000 cycles.
MOMENTARY 1.000.000 cycles.
INSULATIONRESISTANCE:1.000MΩ MIN AT 500VDC
DIELECTRIC STRENGTH: 2,000V RMS@sea level.
CONTACT RESISTANCE: 50mΩ MAX.@1A 12VDC(initial value)
OPERATING TEMPERATURE:-20 to 55℃.
TRAVEL:ABOUT 3.2mm.
OPERATION PRESSURE:1Pole 2.5+1N. / 2Poe 3.5+1N
INGRESS PROTECTION: IP67,IK10(Stainless).
TOROUE: 5-14Nm.

MATERIAL

BUSHING: Stainless Steel/Brass/Aluminum alloy
BASE: PBT(UL 94VO),PC(UL 94-V2)
ACTUATOR: PC ; Stainless Steel/Brass/Aluminum alloy
INNER ASSEMBLY: POM JPA66.
SPRING: Spring Steel.
SEALING: Silicone.
0-RING:Silicone.
TERMINAL:Brass, Gold or Silver plated.
CONTACT:Brass, coin silver,Gold or Silver plated.
HEX NUT: Nickel plated brass.
