BL195 Brazed Plate Heat Exchanger

Boiler Usage Stainless Steel Brazed Plate Heat Exchanger

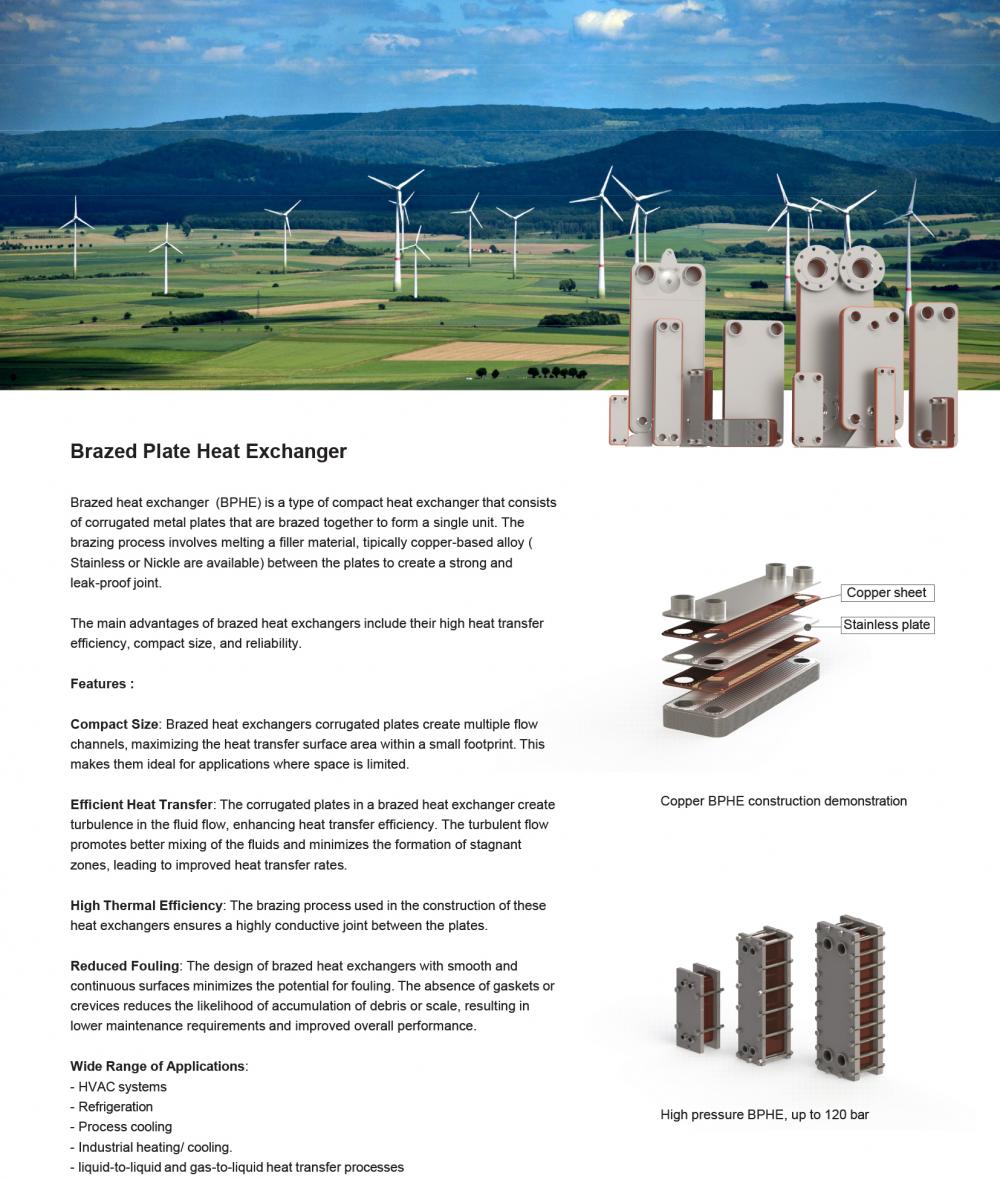

The brazed plate heat exchanger is composed of pressed adult shaped concave and convex metal plate, and the two adjacent plates are shaped concave and convex into 180 opposite combinations. Therefore, the two plates form a concave and convex ridge line, forming a staggered contact point, to be combined with the contact point by vacuum welding, it forms a plate heat exchanger high-pressure staggered channel system, the staggered channel system can make the brazing heat exchanger in the two fluids turbulence, and achieve the effect of heat transfer. Brazed plate heat exchangers can be divided into copper brazing and nickel brazing according to the welding material.

It has the advantages of efficient heat transfer, small size, light weight, durability, low price, universal high pressure and high temperature, low pressure drop, corrosion resistance, no leakage, easy installation, etc., and is widely used in various fluids and equipment.

Jiangsu Baode company provides high quality heat exchanger, including brazed plate heat exchanger, gasket plate heat exchanger, shell and tube heat exchanger, etc.
