India Customer Pallet Stretch Film Machine ChangLong Model CL-55/70/55A.mp4

1000mm Width Three Screws Stretch Film Machine---PE Stretch Film Machine

The unit is designed to produce three or five layers stretch film, cling film, etc., mainly using LLDPE ,LDPE,PE as raw material. We supply high quality machine with reasonable price.

Main Technical Parameter

Model: CL-45/65/55A

Linear Speed of Machinery: 120m/min

Max Extrusion Capacity: 135kg/h

Max Diameter of Rewinding Roll : 400mm

 Diameter of Screws: A Screw 45

                              B Screw 65

                              C  Screw 55

L/D Ratio of Screw: 30:1

Motor Power of Main Machine: 11/18.5/15 kw/h

Total Power: 15.5-65kw/h

Overall Dimensions(L*W*H): 7.6*4*3.6m

Total Weight: 9.5T

Width of T-die: 1250mm

Width of Product Film: 1000mm

Thickness of Film: 0.01-0.05mm

Structure of Film Layers: A/B/C or A/ C/B /C/A

Features

1. In order to improve and ensure high plasticization and high quality and high output, all of the screws on the machine are made from refined high-precision steel aloy.

2. The bi-directional loop design and helix runner inside of the cooling roller is adopted to make stable temperature on the surface of cooling roller.

3. Online changing system is equipped to easily test and adjust the thickness of film, and change the slitter without stopping the machine.

4. The winding system is equipped with online air knife device, which can automatically cut different thickness film quickly.

Application

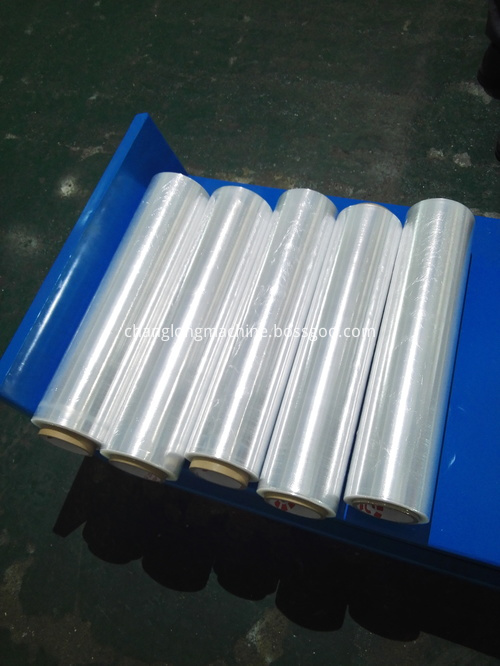

The film produced by this machine could be widely used for packing goods and prevent loosening and anti-dust and etc. The film can be widely used in wrapping of pallet packaging, storage packaging, manual packaging and so on. Perfect transparency and tensile strength of this film keep cargos clean and safe .

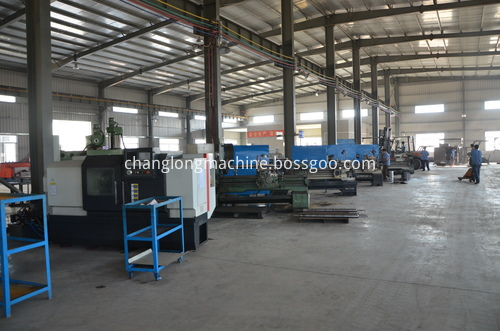

Workshop & Factory

Certificate

After-Sales Service

Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time and free technical training is offered to ensure stable and continually production.

We will respond to customer requests and solve their complaint in the shortest possible time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate. We will commit to improve our services quality, so that our customers will be most satisfied.

We offer warranty on product quality and lifelong maintenance services.
