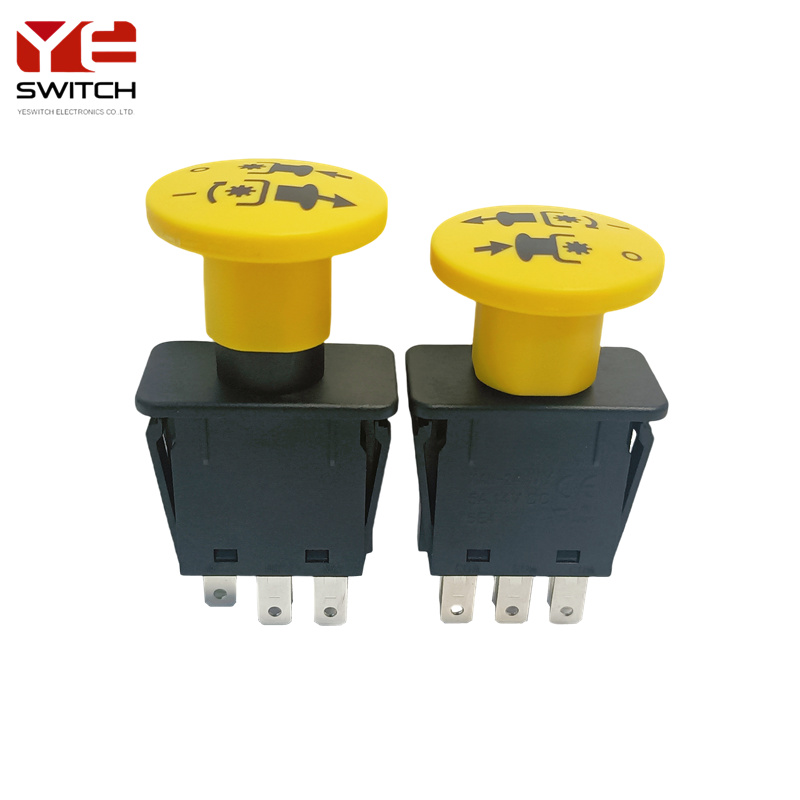

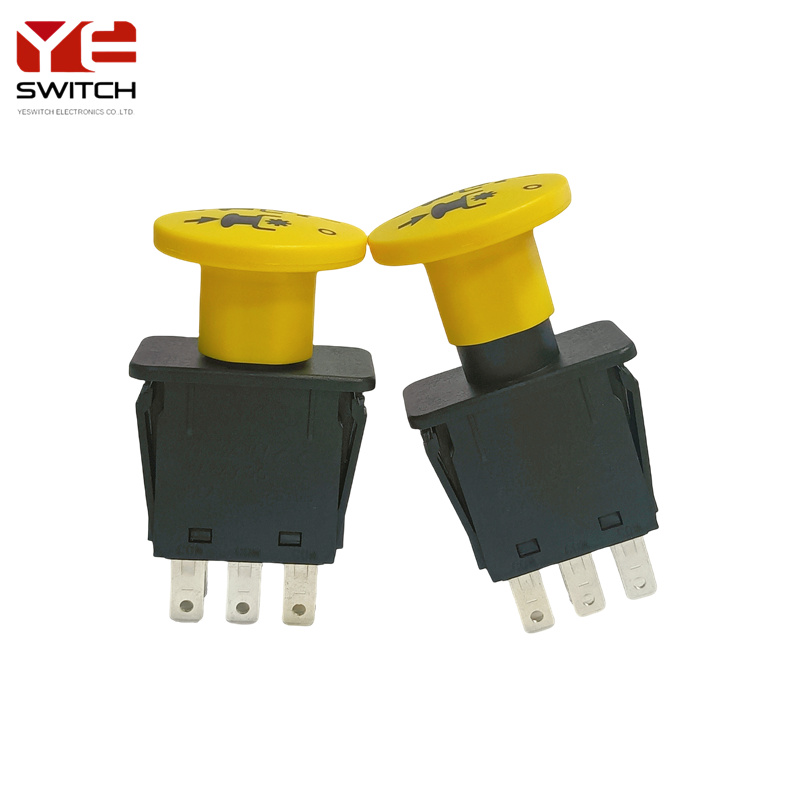

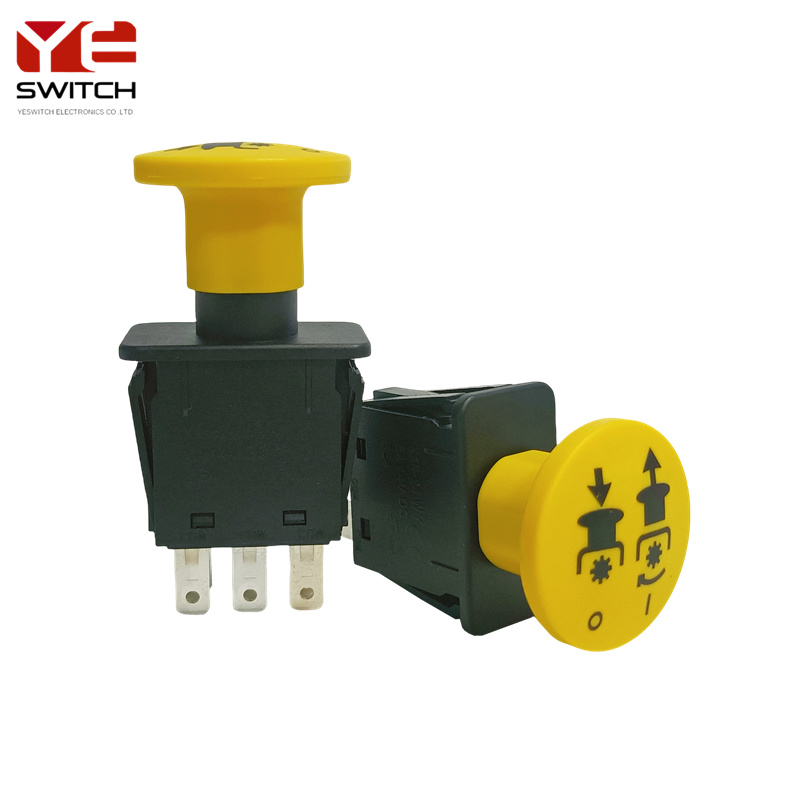

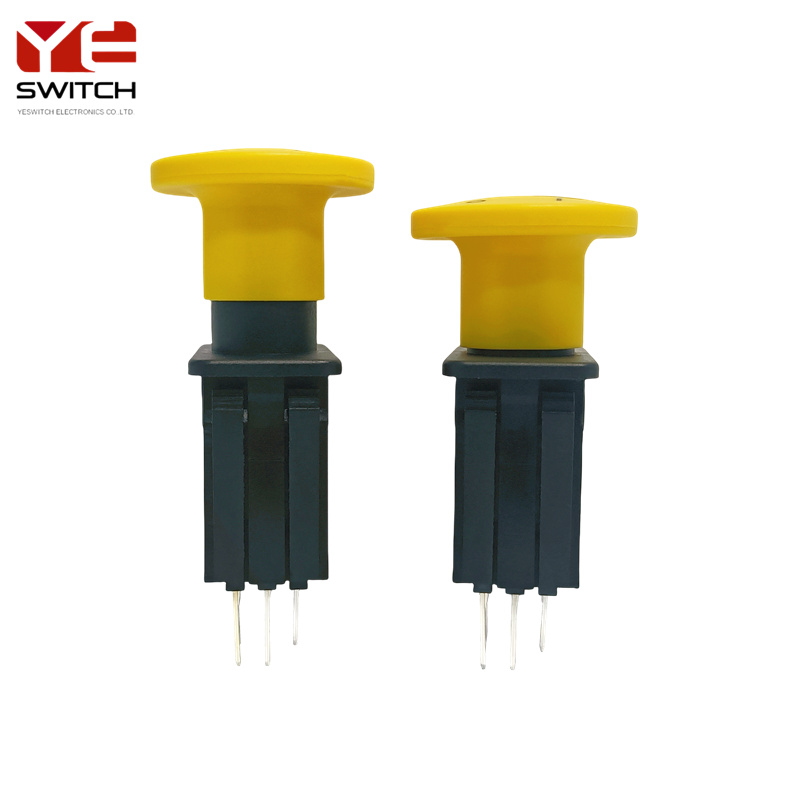

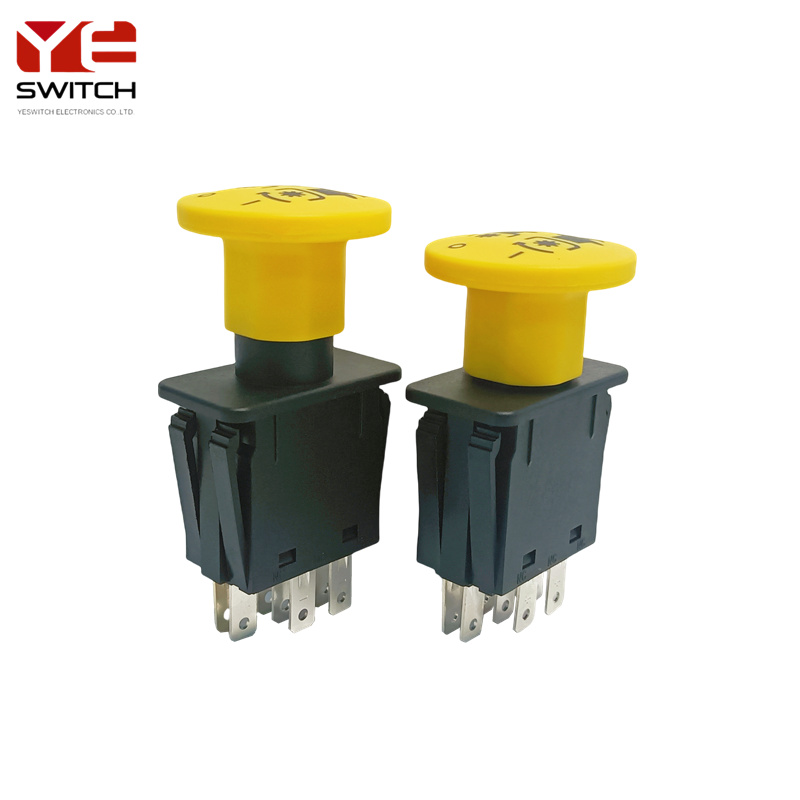

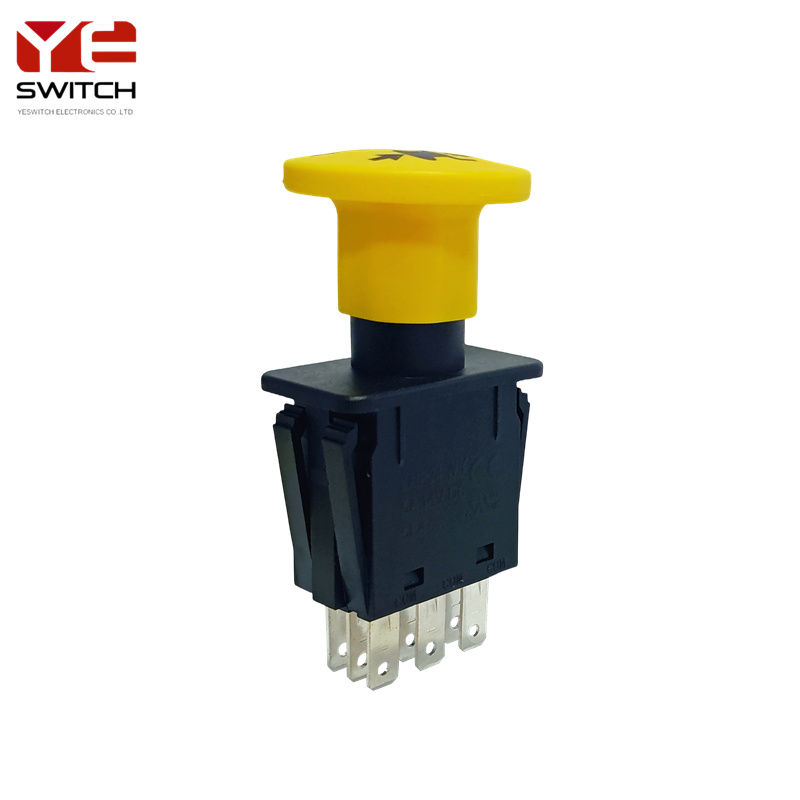

YESWITCH Sealed Universal Power Take-off Switch For Lawn Mower Tractors

YESWITCH Sealed Universal Power Take-Off switch for the outdoor power equipment market, designed to help provide a dependable and safe experience for ride-on mower operators.

The sealed push/pull switch offers reliability and ensures longer part life when compared with non-sealed parts. Protected from the elements, the Sealed Power Take-Off (PTO)switch keeps out grass, dirt, water, oil and other contaminants that reduce switch life. With an IP67 rating, this power take-off automotive switches are dust-tight and protects against water ingress.

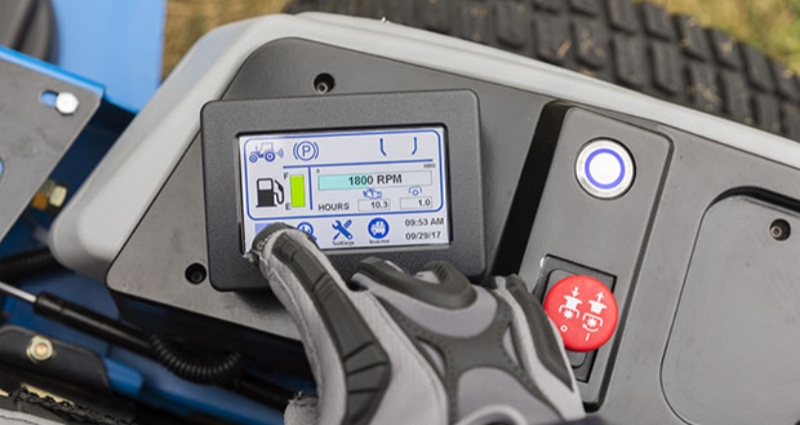

The PTO waterproof push button switch is a critical safety device developed to prevent unintentional blade actuation of lawn equipment. This automotive push button switches are part of a series of controls that comprise a mower’s safety interlock system, requiring riders to use proper procedure when operating machinery.

The YESWITCH Sealed Universal PTO switch is not only applicable to mowing equipment, but can also be used in light agricultural machinery, construction equipment and material-handling units.

The Sealed Universal PTO switch is expertly engineered and features:

A rugged, compact housing that is highly resistant to shock and vibration
Universal application from 10mA to 10Amps
A push/pull design that protects against inadvertent actuation
User-friendly and ergonomic styling
Full autonomy, with no need for a controller

SPECIFICATIONS

Cycle Life:Resistive:100,000,Inductive:40,000
Operating Voltage Range:9-96 VDC
Operating Current:10mA-10A@ 9-16VDC,10mA-500mA@ 48-96 VDC
Contact Resistance:50mOhms max, New at 10mA,12 VDC
Ingress Protection:IP67, with sealed mating connector
Operating Temperature Range:-40~85 Degree
Humidity:95% Relative Humidity,non-condensing
