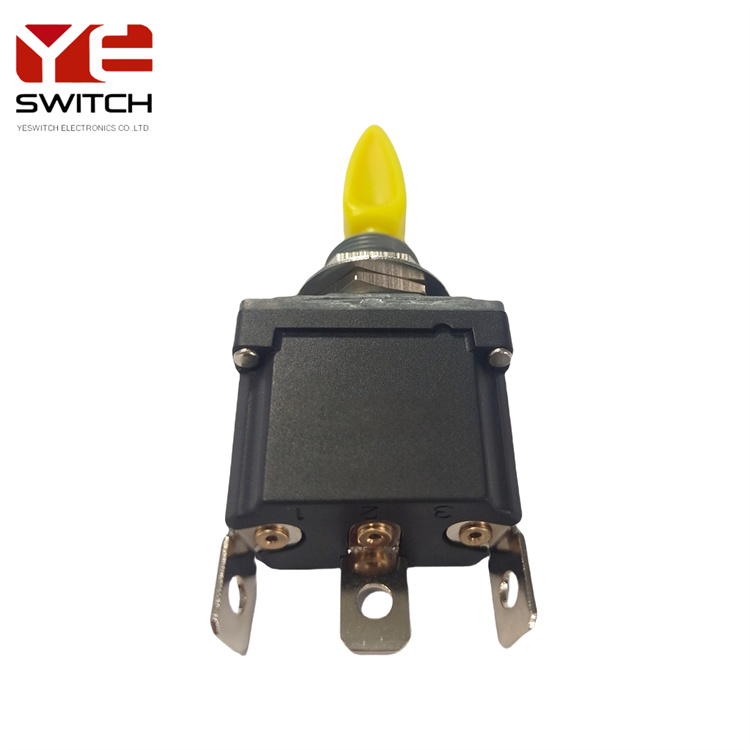

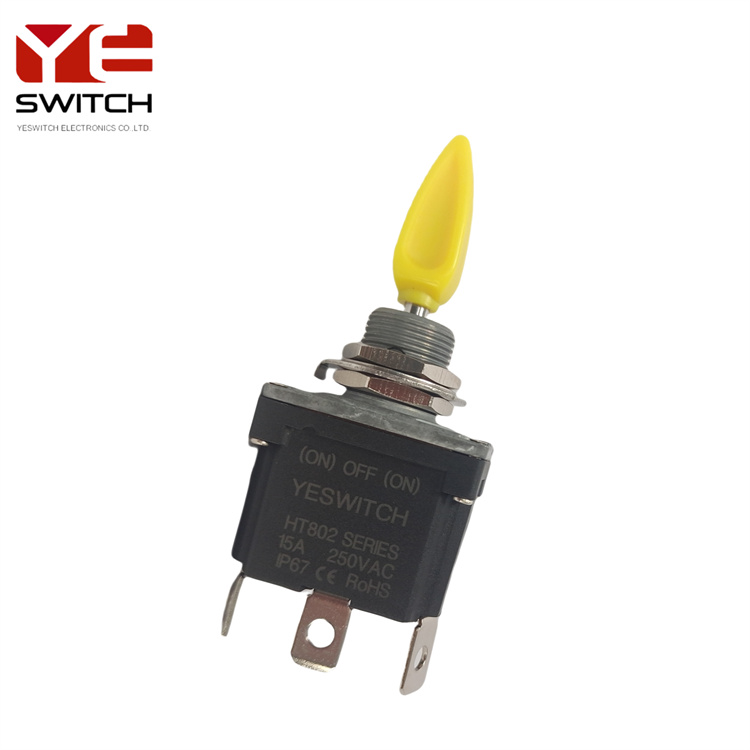

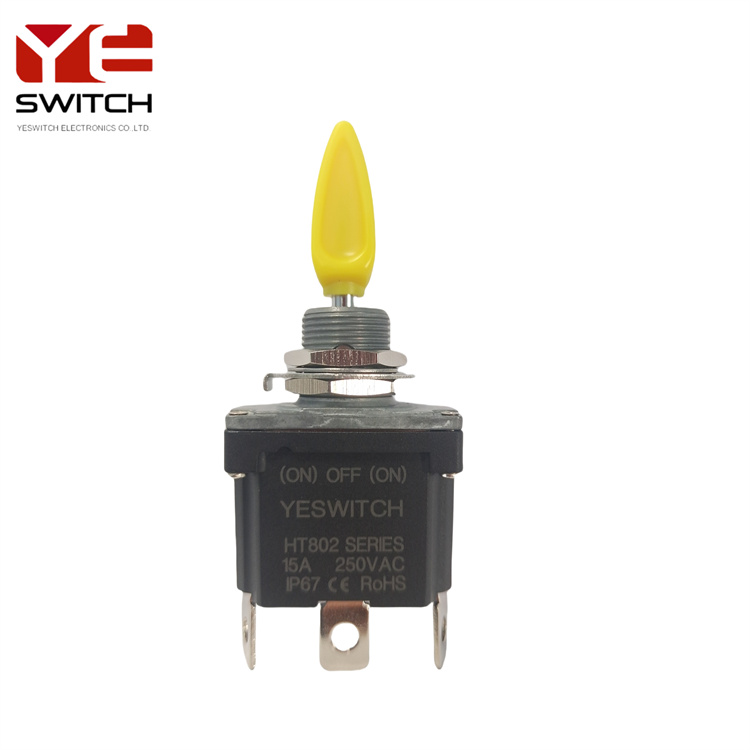

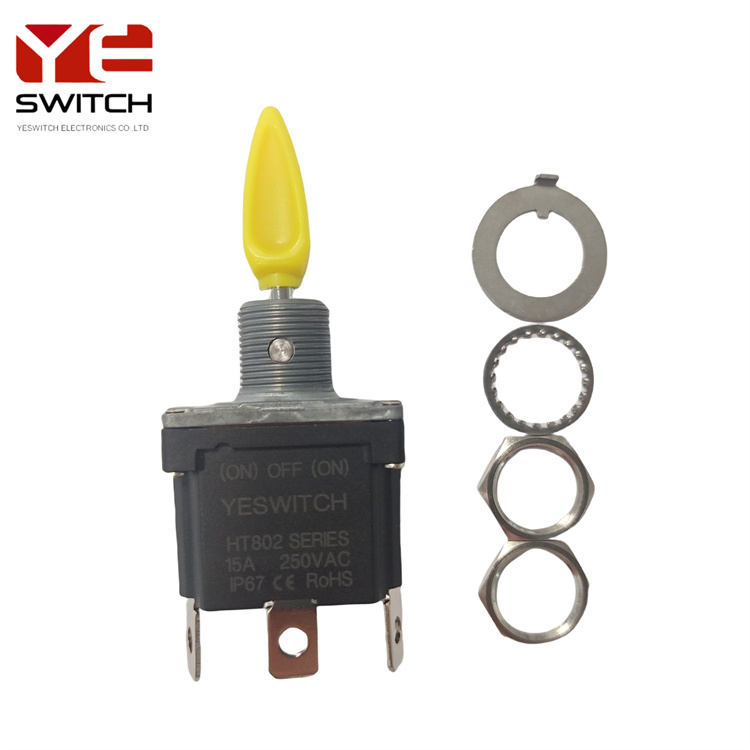

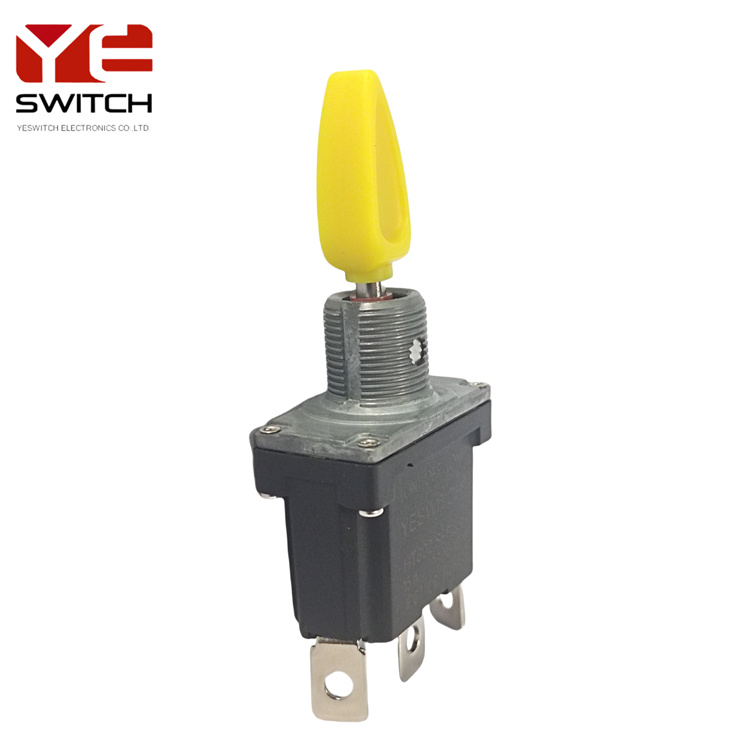

YESWITCH HT802 (ON)-OFF-(ON) Toggle Switch

12 month ago

27 0 

7 year

Product details

YESWITCH HT802 (ON)-OFF-(ON) Toggle Switch For Scissor Lift

YESWITCH HT802 Series toggle switches (ON)-OFF-(ON) has a high current withstand capacity of 15A, and has IP68 level of sealing and waterproof performance, so the IP68 toggle switch can still maintain a stable working state under extremely harsh conditions. Whether it is in military aerospace, heavy machinery and equipment or agricultural machinery and equipment and other fields, the momentary toggle switch has a wide range of applications. The high current toggle switch sealed waterproof design enables it to effectively prevent dust, water and corrosion, protecting the equipment from the erosion of harsh environments. Whether outdoors, underwater or in other harsh environments, the switch works reliably.

In short, the (ON)-OFF-(ON) 15A toggle switches are the best choice when you are looking for a high-performance switch. If you need a switch product with high current and high sealing and waterproof performance, consider this excellent waterproof toggle switch that will provide reliable control and protection for your equipment.

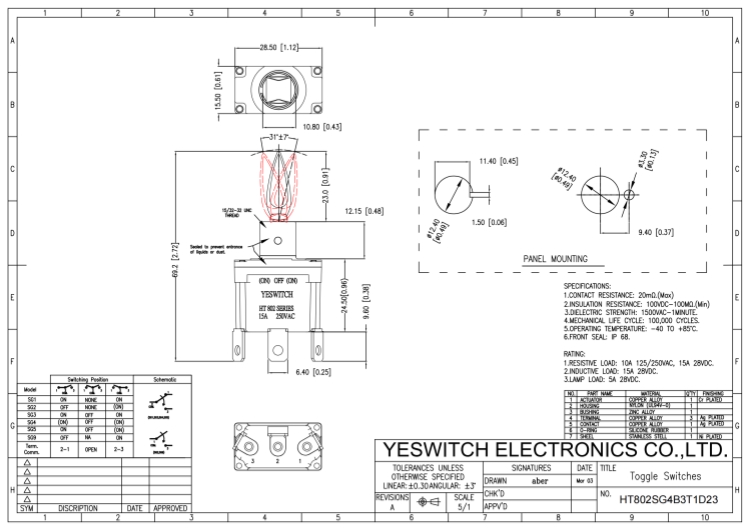

SPECIFICATIONS：

CONTACT RESISTANCE: 20m0(Max)

INSULATION RESISTANCE: 100VDC-100MQ.(Min)

DIELECTRIC STRENGTH: 1500VAC-1MINUTE

MECHANICAL LIFE CYCLE: 100,000 CYCLES

OPERATING TEMPERATURE: -40 ~+ 85 Degree

FRONT SEAL: IP 68.

RATING:

RESISTIVE LOAD: 15A 125/250VAC,15A 28VDC.

INDUCTIVE LOAD:15A 28VDC.

MATERIAL:

ACTUATOR: COPPER ALLOY

HOUSING:NYLON (UL94V-0)

BUSHING:ZINC ALLOY

TERMINAL:COPPER ALLOY

CONTACT:COPPER ALLOY

O-RING:SILICONE RUBBER

SHEEL:STAINLESS STELL

FEATURE:

Copper Alloy contact for increased application flexibility

High strength for durability in tough conditions

Temperature resistant materials to enhance performance in challenging environments

APPLICATION：

Industrial machinery and equipment, military and commercial aviation, construction equipment, test instruments, agricultural machinery, process control, medical instrumentation
