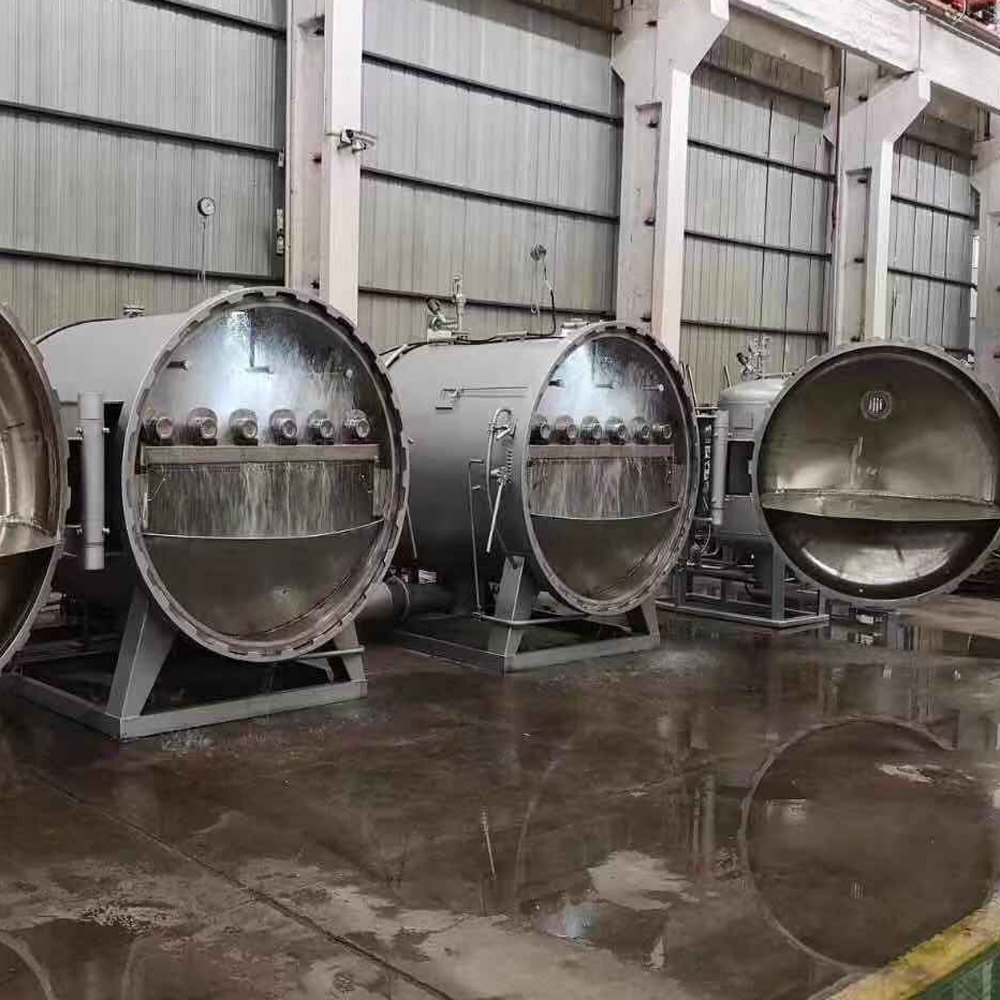

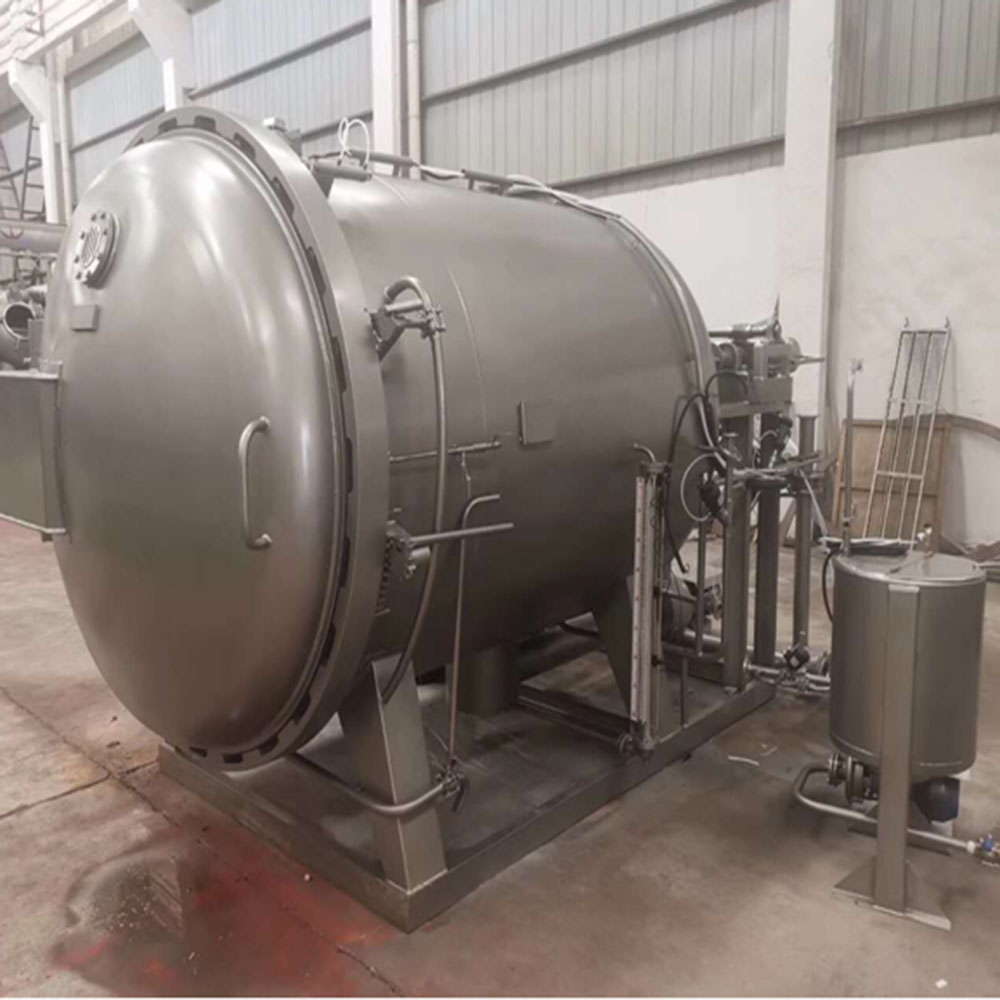

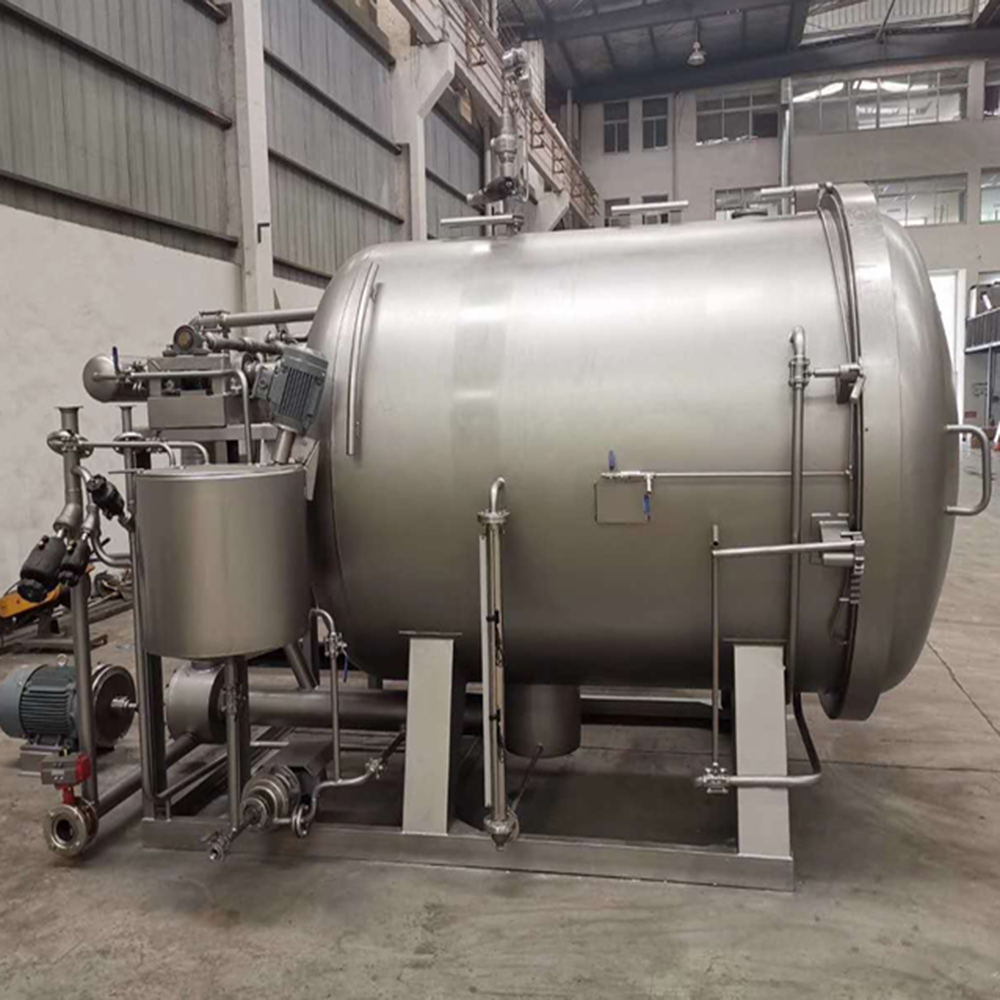

WGR202-High temperature Hank Yarn dyeing machine
Suitable for various kinds of yarns,acrylic and Acrylic/ wool blend,wires and tapes in natural synthetic fibre dyeing in high temperature.
Simple operation and the yarn hanging stick is with automatic and reciprocal control equipment to achieve even dyeing effect.
Adopt computer automatic control equipment for rinsing and lowering of temperature of dye liquor,heat preservation delay,adding dye auxiliaries and washing etc. operation procedures.
The door cover adopts quick-opening structure,which is equipped with safety interlocking device for ensuring safety operation.
Product image
Specification
|
Model |
Yarn stick |
Motor power （KW） |
Effective volume （L） |
Max working pressure（MPA） |
Max working temp. |
Steam consumption |
Consumption of cool water（20℃/M3./HR） |
|
WGR202-110(II) |
2 |
3 |
250 |
0.35 |
135 |
60 |
2 |
|
WGR202-140(IV) |
4 |
5.5 |
700 |
0.35 |
135 |
120 |
4 |
|
WGR202-170(VI) |
6 |
7.5 |
800 |
0.35 |
135 |
160 |
5 |
