SUSTAGLIDE PA6

9 month ago
5 0
Product details

About SUSTAGLIDE®

SUSTAGLIDE® in an internally lubricated type 6 cast nylon.  It exhibits a low coeffient of friction, good wear and abrasion resistance, and is a great choice for sliding applications under heavy loads.


Sustaglide® is a highly modified caprolactum grade, incorporating a lubricating "particulate matrix" that is evenly distributed throughout the polymer that further reduces the sliding coefficient of friction.

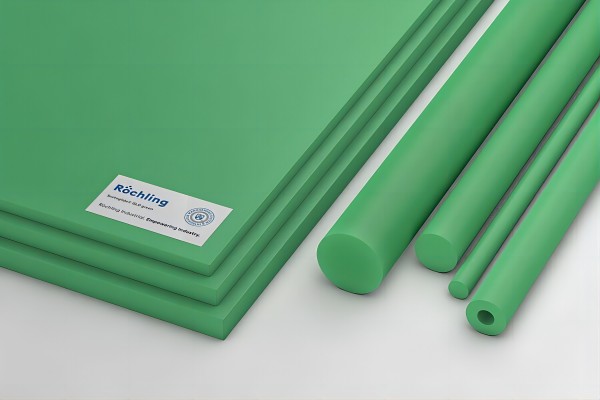

Sustaglide® is Green in colour.


This grade has 5 times higher Pressure-Velocity capability over standard Sustamid® PA6 G type.


According to EC and FDA regulations, Sustaglide® is suitable for use in contact with food.


Sustaglide Pa JpgSustaglide Pa Pa6 JpgSustaglide Pa6 Jpg




Properties


Specialised sliding additives enable higher loads and sliding face temperatures

Optimum performance - Low coefficient of friction

Optimum performance - Wear capacity Excellent abrasion resistance

Very good mechanical strength

Very good chemical, thermal and low friction properties

Excellent bearing material

Excellent short-term and long-term heat resistance

High stiffness at elevated temperatures

High creep resistance, especially at elevated temperatures

Outstanding toughness

Excellent fatigue behaviour

Good resistance to chemicals

A high PV rating

Very good co-efficient of friction

Excellent electrical insulation properties




Applications


Insulation bushing

Sliding Parts Under High Load: Wear Pressure Plates

Slide Bearings

Journal Bearings

Gears & Sprockets

High speed chain guides that exceed 100 feet per minute

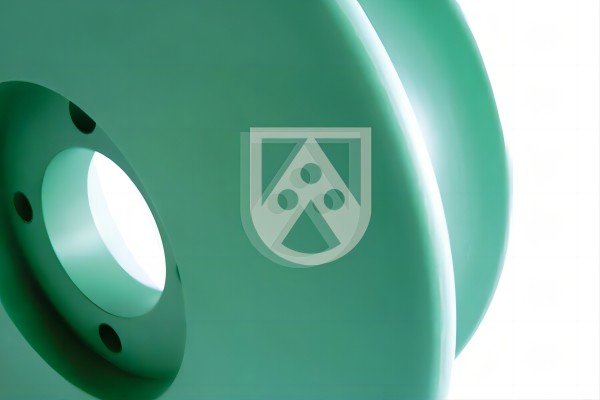

Crane pulleys ( sheaves )

Bearing both in linear and circular

High impact pile driving

Bearing pads

High load packing blocks up to 13 ton per square inch of load bearing

Meat works

Beverage

Truck pads and shackle bushes




Technical Specifications Sustaglide® green

General properties
Test Method Unit Guideline Value
Density DIN EN ISO 1183-1 g / cm3 1,14
Water absorption DIN EN ISO 62 % 2,0
Flammability (Thickness 3 mm / 6 mm) UL 94 HB / HB
Mechanical properties
Test Method Unit Guideline Value
Yield stress DIN EN ISO 527 MPa 75
Elongation at break DIN EN ISO 527 % 35
Tensile modulus of elasticity DIN EN ISO 527 MPa 3400
Notched impact strength DIN EN ISO 179 kJ / m2 3,5
Shore hardness DIN EN ISO 868 scale D 81
Thermal properties
Test Method Unit Guideline Value
Melting temperature ISO 11357-3 °C 215
Thermal conductivity DIN 52612-1 W / (m * K) 0,25
Thermal capacity DIN 52612 kJ / (kg * K) 1,70
Coefficient of linear thermal expansion DIN 53752 10-6 / K 80
Service temperature, long term Average °C -40...110
Service temperature, short term (max.) Average °C 160
Heat deflection temperature DIN EN ISO 75, Verf. A, HDT °C 90
