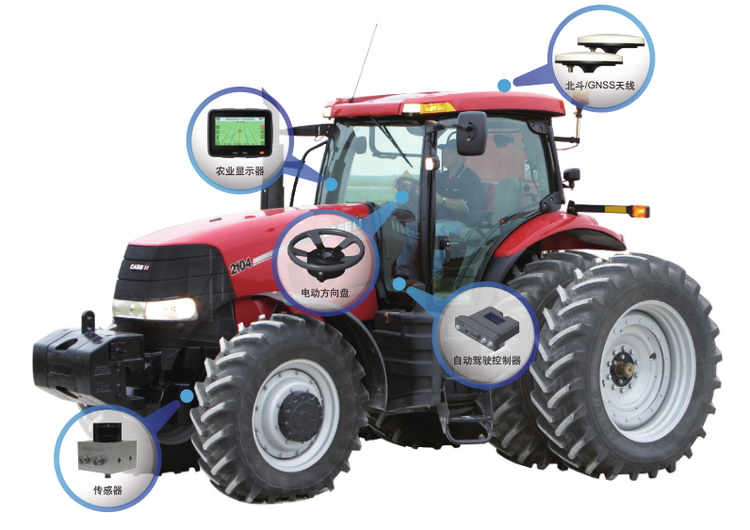

Keya Autopilot Motor Auto Steer Motor for Agricultural Tractors Guidance System

Automatic Moto,Moto Automatic,Steering Motor

Applicable power: DC12V/24V

Continuous current 10A, maximum peak current 15A

DC working power + 9-30VDC;

Working mode: Speed mode, position mode;

Feedback element: Incremental encoder (conventional product), absolute value encoder;

When the motor runs automatically, if the driver hold the motor wheel suddenly, the motor will do Over current Protection, then the motor will stop, then the driver can run the wheel freely. if you want make the motor run automaticly, your system can send "Enable" command to the motor, then send "Speed" command to the motor, then the motor will run automaticly again.

Package:

Gross weight: 8kg

Dimension: 35x35x18cm

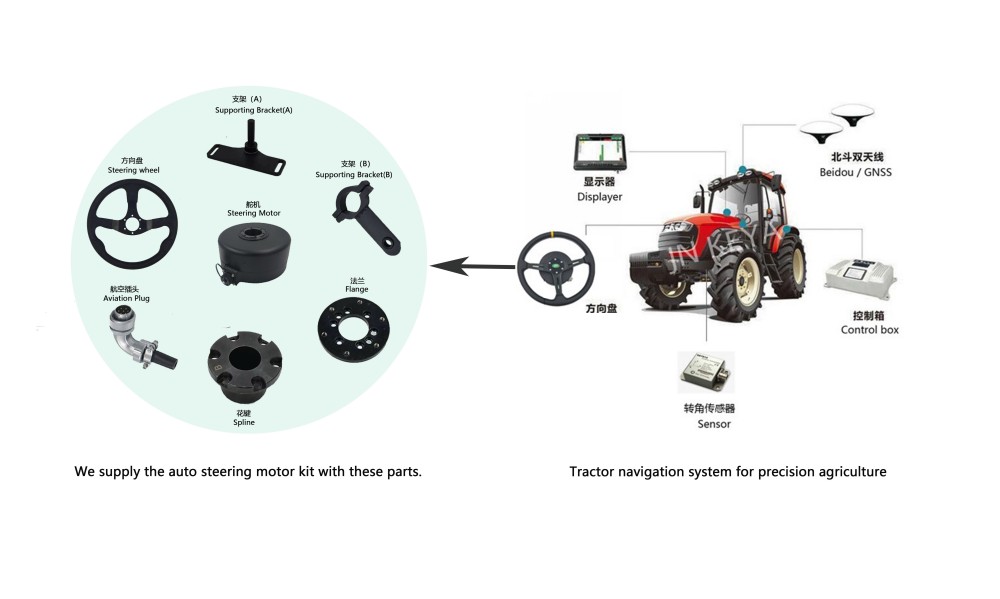

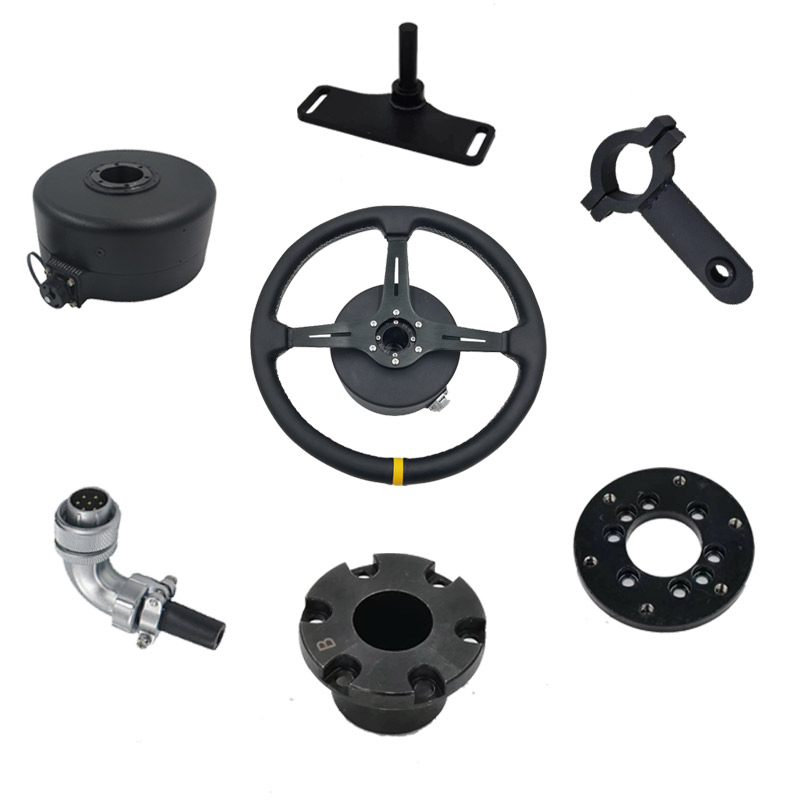

What's in the package:

1* autosteer motor

1* steering wheel (standard dia. 35cm)

1* connecting flange

1* spline sleeve/adapter (multiple sizes are available)

2* supporting brackets

1* USB to serial port cable

1* communication extension cable

screws for installation.
