Product Description
The brushless DC servo motor has a small inertia, so the appearance is generally slender. The dc servo motors built in 2500ppr optical encoder. It can be used with a complex bldc servo drive to precisely control the motor speed or position. It is a permanent magnet rotor that is driven by a DC pulse voltage signal.
Work Environment
1. Altitude less than 1000M.
2. Environment temperature: -25℃~+50℃
3. The most moist month average relative humidity should less than 90%, and this month's average lowest temperature should less than 25℃.
| Rated voltage | 24V |
| Rated power | 200W |
| Rated current | 10.4A |
| Rated speed | 3000rpm |
| Rated torque |
0.63N.m |
| Peak torque |
1.89N.m |

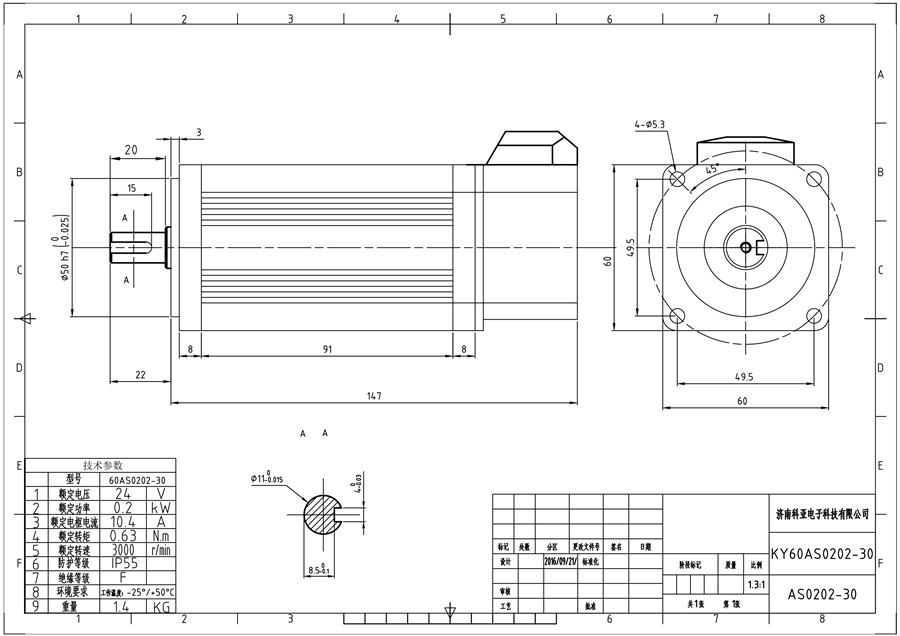

| Motor shaft diameter | 11mm |
| Motor length | 147mm |
| Line Resistance | 0.195Ω |
|
Terminal Resistance |
0.12mH |
|
Torque Constant |
0.06Nm/A |
|
Back EMF Constant |
6v/kr/min |
|
Rotational Inertia |
21Kg.m2x10-6 |
|
Mechanical Time Constant |
0.8ms |
|
Electrical Time Constant |
0.6ms |
| Encoder | 2500ppr, optical |
| Brake | if you need brake, kindly advise |
|
Weight |
1.4kg |
| Model | Voltage | Power | Rated speed | Rated current | Rated torque | Peak torque | Length | Shaft Dia | Weight | |
| Frame | Unit | V | W | RPM | A | N.m | N.m | mm | mm | kg |
| 60*60mm | KY60AS0201-30 | 24 | 100 | 3000 | 5.4 | 0.31 | 0.95 | 147 | ⌀11 | 1.4 |
| KY60AS0202-30 | 24 | 200 | 3000 | 10.4 | 0.63 | 1.89 | 147 | ⌀11 | 1.4 | |
| 80*80mm | KY80AS0202-15 | 24 | 200 | 1500 | 10.4 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 |
| KY80AS0402-15 | 48 | 200 | 1500 | 5.2 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0204-15 | 24 | 400 | 1500 | 21.3 | 2.55 | 7.65 | 185 | ⌀14 | 3.5 | |
| KY80AS0404-15 | 48 | 400 | 1500 | 10.4 | 2.55 | 7.65 | 185 | ⌀14 | 3.5 | |
| KY80AS0204-30 | 24 | 400 | 3000 | 21 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0404-30 | 48 | 400 | 3000 | 10.4 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0407-30 | 48 | 700 | 3000 | 19.4 | 2.2 | 6.5 | 185 | ⌀14 | 3.5 | |
| 110*110mm | KY110AS0405-15 | 48 | 500 | 1500 | 14 | 3.1 | 10.8 | 199 | ⌀14 | 6 |
| KY110AS0205-15 | 24 | 500 | 1500 | 26 | 3.1 | 10.8 | 223 | ⌀14 | 6.6 | |
| KY110AS0408-15 | 48 | 800 | 1500 | 21 | 5 | 17.9 | 223 | ⌀14 | 6.6 | |
| KY110AS0207-15 | 24 | 750 | 1500 | 39 | 4.7 | 16.6 | 246 | ⌀19 | 7.6 | |
| KY110AS0408-25 | 48 | 800 | 2500 | 22 | 3 | 10.5 | 223 | ⌀14 | 6.6 | |
| KY110AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 246 | ⌀19 | 7.6 | |
| KY110AS0210-15 | 24 | 1000 | 1500 | 52 | 6.3 | 22 | 293 | ⌀22 | 10.2 | |
| KY110AS0412-25 | 48 | 1200 | 2500 | 31 | 4.5 | 15.7 | 246 | ⌀19 | 7.6 | |
| KY110AS0415-15 | 48 | 1500 | 1500 | 39 | 9.5 | 28 | 293 | ⌀19 | 10.2 | |
| KY110AS0415-30 | 48 | 1500 | 3000 | 30 | 4.7 | 14.1 | 246 | ⌀19 | 7.6 | |
| KY110AS0420-25 | 48 | 2000 | 2500 | 55 | 7.6 | 26 | 293 | ⌀22 | 10.2 | |
| 130*130mm | KY130AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 186 | ⌀25 | 7.6 |
| KY130AS0415-15 | 48 | 1500 | 1500 | 37.5 | 9.5 | 28 | 207 | ⌀28 | 13 | |
| KY130AS0430-15 | 48 | 3000 | 1500 | 73 | 19.1 | 57 | 273 | ⌀28 | 14.2 | |
We also can provide the matched gearbox with the motor together,
Gear box range: line planetary gearbox, right angle planetary gearbox, worm gearbox, if you need other gearbox, kindly advise.
The 24v 48v dc servo system be widely used in mobile robot, for example, crawler robot chassis, inspection robot, automatic guided vehicle, fire fighting robot, self-guided vehicle.
