Resin plate MC801 plate
10 month ago
Good quality nylatron sheet with 30% improved abrasion resistance NYLATRON SHEET DESCRIPTION

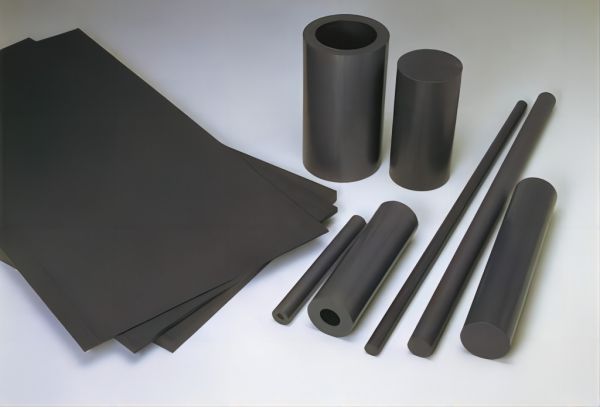

nylatron sheet, It is a modified nylon sheet product,also named MC801 nylon sheet. It has the characteristics of good wear resistance, high strength, toughness and hardness, good creep resistance, high self-lubrication, wear resistance, heat aging, low friction coefficient with objects, and good machinability. Anyang Honesty Tech nylatron sheet, 30% improved abrasion resistance, anti-uv and excellent flame retardancy.
NYLATRON SHEET FEATURES
High strength and stiffness
High impact and notch impact strength
High heat deflection temperature
Good at dampening
Good abrasion resistance
Low coefficient of friction
Good chemical stability against organic solvents and fuels
Excellent electrical properties, ease of printing and dyeing
Specifications:
2000*1000*5-300mm
1000*1000*5-300mm
1250*2500*5-300mm
1220*2440*5-200mm
1040*2050*5-300mm
Color:white,off white,black,red,blue green……
Speicfications and colors can be customized according to customer requirements
NYLATRON APPLICATIONS
Fan blades, structural panels, wear pads
Bearing parts, gear wheels, pump parts, parts in the automotive manufacturing
Sliding rails, castors, fittings etc
NYLATRON SHEET DATASHEET
| performance items | testing conditions | ways to test | data | |
| Basic | density | ASTM D-792 | 1.2 | |
| physical | molding shrinkage | ASTM D-955 | 1.5-2.0 | |
| Mechanical | bending strength | ASTM D-790 | 88 | |
| Non notch impact strength of simply supported beam | ISO 179 | >100 | ||
| tensile strength | ASTM D-638 | 62 | ||
| bending modulus | ASTM D-790 | 2×10 | ||
| Notched Izod impact Strength | 3.2mm thick | ASTM D-256 | 50 | |
| Notched impact strength of simply supported beam | ISO 179 | 10 | ||
| Electrical | dielectric strength | 2mm thick | ASTM D-149 | 21 |
| volume resistivity | ASTM D-257 | 10 | ||
| permittivity | 10 | ASTM D-150 | 3.1 | |
| Thermal | distortion temperature | 1.82MPa | ASTM D-648 | 65 |
