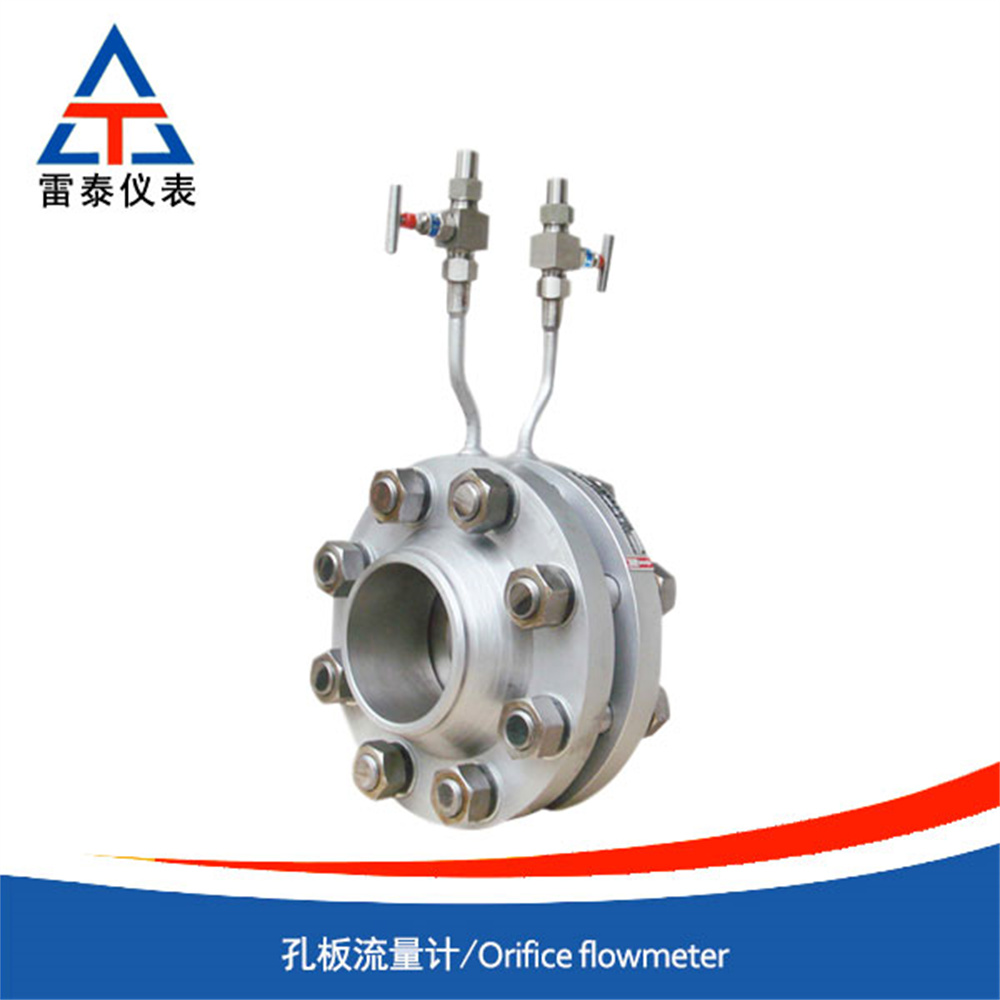

Porous balanced orifice flowmeter

3. Ministry of Chemical Industry standard GJ516-87-HK06.

Features:
▲The structure of the throttling device is easy to copy, simple, solid, stable and reliable in performance, long in service life and low in price.
▲Orifice plate flowmeter calculation adopts mature standards and processing
▲Wide range of applications, all single-phase flows can be measured, and some mixed-phase flows can also be applied.
▲The standard throttling device can be put into use without actual flow calibration.
▲The integrated orifice plate is easier to install, no pressure inducing pipe is required, and can be directly connected to differential pressure transmitters and pressure transmitters.
Smart features
▲Using imported monocrystalline silicon intelligent differential pressure sensor
▲High precision and complete self-diagnosis function
▲The measuring range of the intelligent orifice flow meter can be adjusted by self-programming.
▲Can display cumulative flow, instantaneous flow, pressure and temperature at the same time.
▲In addition to online and dynamic full compensation functions, it also has self-diagnosis and self-setting range.
▲ Equipped with a variety of communication interfaces
▲High stability
▲Wide measuring range, greater than 10:1
Intelligent technical indicators
▲High accuracy: ±0.075%
▲High stability: better than 0.1%FS/year
▲High static pressure: 40MPa
▲Works continuously for 5 years without adjustment.
▲The effects of temperature and static pressure can be ignored
▲Resistant to high overvoltage
