16A High Current Metal Push Button Switch

10 month ago

27 0 

7 year

Product details

16A High Current Metal Push Button Switch Self-lock Momentary For Medical Equipment

The PS5 Series anti-vandal metal push button switch is a kind of sealed protection,high impact resistance grade metal push button switch,especially suitable for aerospace ships,automotive peripheral products,kitchen appliances,communication medical equipment,hotel equipment, electronic lock system and other applications that need protection from damage.

The waterproof push button switch not only meets the seal protection and impact resistance grades of IP65 and IK07,but also has 16A high current,momentary and self-locking function.The automotive switches with UL certification and quality assurance.

The bushing of the destruction-proof metal push button switch is made of strong stainless steel and strong corrosion resistance.The push button switch types installation size is 19mm,22mm,25mm,30mm,which can be selected according to the size and shape of different equipment.The waterproof metal switch is also available in a variety of LED colors to meet different needs.

Best of all,the 16A high current metal push button switch is vandal-proof, preventing others from vandalizing your device.If they try to turn your device on,the push button switch will automatically activate,protecting your device from damage.

RATING

16A 125/250VAC (UL,CUL)
16(4)A 250V~ T125/55 (ENEC)
16(8)A 250V~ T125/55 (ENEC) optional
TV-6 125V~ T55, 25E3 (cURus) optional
8[128]A 250V~T55 1E4 (cURus, ENEC15) optional
Initial contact resistance: 20mΩmax.
Insulation resistance: 100MΩmin. at 500VDC
Dielectric strength: 1,000 VAC for 1 minute

FEATURE

ON-OFF & Momentary function
Ring & power symbol illuminated type,non-illuminated type
3VDC LED regardless of anode and cathode polarity
Completed terminals options,quick-connect,solder and PCB terminals

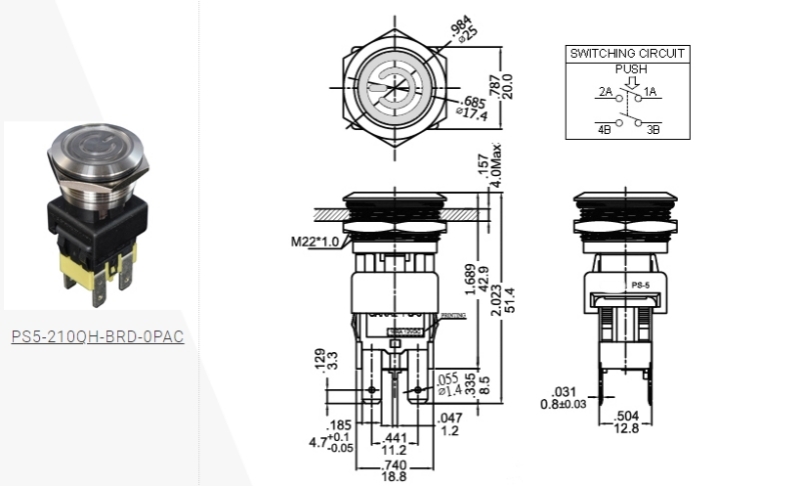

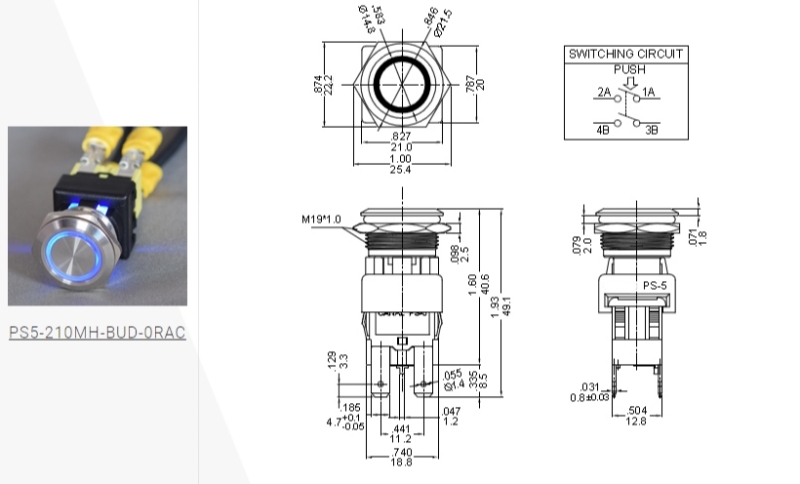

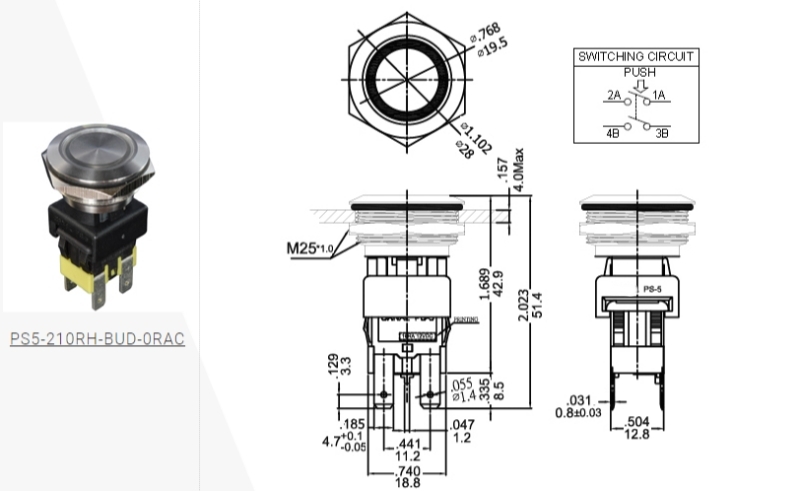

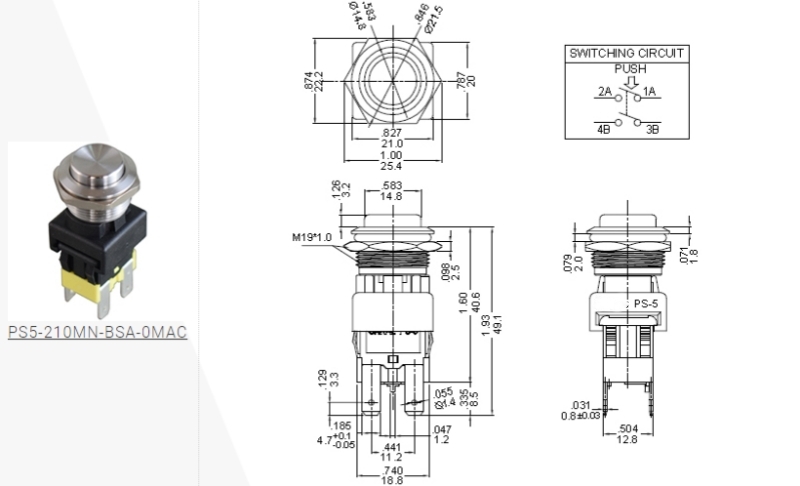

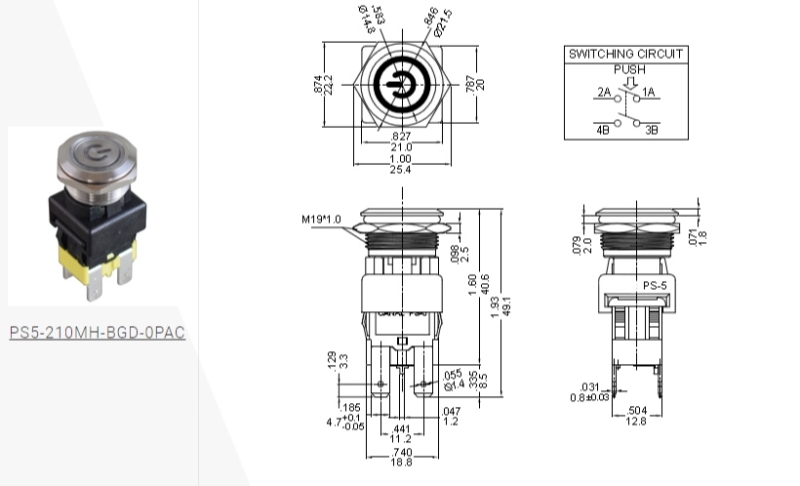

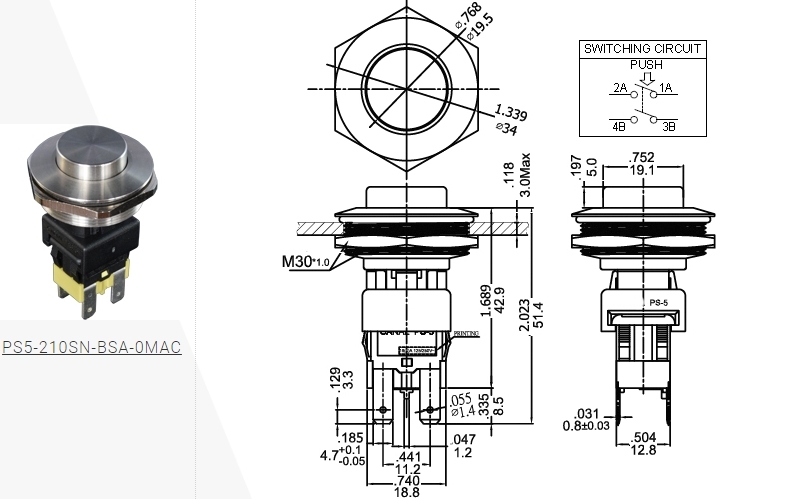

M19, M22, M25 & M30 bushing, screw mounting
Actuator & bushing material: SUS
Top len: PC
Connected frame: PA66+GF
IP65 & IK07 protection level

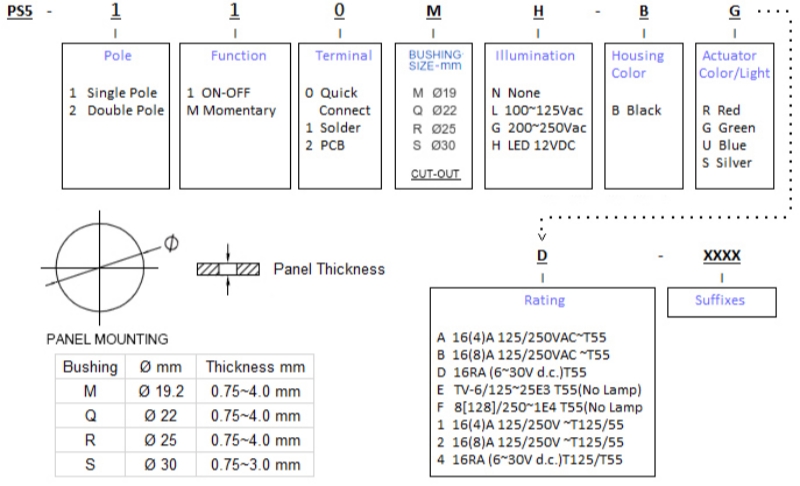

How to order
